Installation
36-in. and 30-in. Cooktops
Refer to installation instructions. Installation
requires an 18-in. minimum distance from
cooktop to adjacent overhead cabinets. Units are
furnished with a 48-in. flexible armored cable.
Cooktop installation requires a 5-in. free area
between the bottom of the cooktop and any
combustible material, such as shelving. This 5-in.
area is not required when installing a wall oven
underneath the cooktop.
The 36-in. cooktops are approved for use over
GE 30-in. single wall ovens only. The 30-in.
cooktops are approved for use over select GE
27-in. and GE 30-in. single wall ovens.
Note: If installing with a GE Profile Performance™
or GE Profile™ Telescopic Downdraft System,
consult both cooktop and downdraft installation
instructions packed with the products before
installing. Cooktop electric supply may need to be
rerouted to install the downdraft ventilation.
Note: Consult the cabinet and countertop
manufacturer’s specs for flush-mount installation
prior to installing.
Electrical junction
box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should not interfere
with cabinet structure
at front
1-3/4" MIN.
clearance to
side wall
from cut-out
1-1/2" MIN.
clearance to
side wall
from cut-out
18" MIN.
to cabinet
1-3/4" to
rear wall
13" MAX.
depth
A
Cooktop
G
E
F
W
D

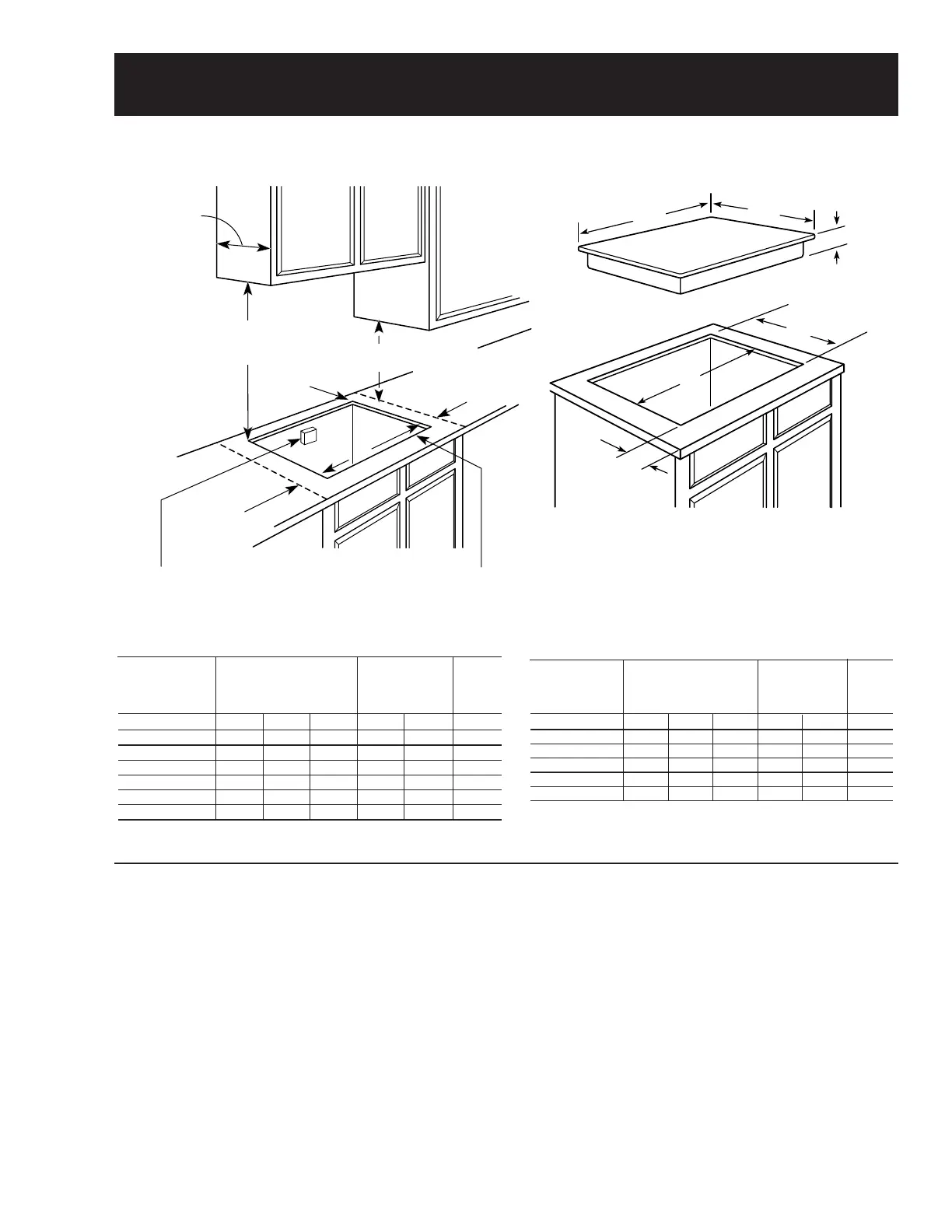

Counter Installation Dimensions (in inches)
Required
Cooktop Dimensions (in inches)
GEA00791
Counter
Cutout (Min.)
WD A E F G
JP968WC/CC/BC 36 20-3/8 3-1/4* 33-7/8 19-1/8 2-1/2
JP960TC/CC/BC 36 20-3/8 3-1/4* 33-7/8 19-1/8 2-1/2
JP938WC/CC/BC 29-3/4 20-7/8 3-1/4* 28-1/2 19-5/8 2-1/2
JP930TC/CC/BC 29-3/4 20-7/8 3-1/4* 28-1/2 19-5/8 2-1/2
29-3/4 20-7/8 3-1/4* 28-1/2 19-5/8 2-1/2
JP340WC/BC 29-3/4 20-7/8 3-1/4* 28-1/2 19-5/8 2-1/2
*Depth of unit at conduit connection location (rear) is 6-1/4" on models JP968/938
and 4-5/8" on models JP960/930/350/340.
JP350TC/WC/CC/BC
Model
Dimensions (in inches)
of Front
To Edge
Overall
GEA00792
Counter
Cutout (Min.)
WD A E F G
JP968SC 36-1/8 21 3-1/4* 33-7/8 19-1/8 2-1/2
JP960SC 36-1/8 21 3-1/4* 33-7/8 19-1/8 2-1/2
JP938SC 29-7/8 21-1/2 3-1/4* 28-1/2 19-5/8 2-1/2
JP930SC 29-7/8 21-1/2 3-1/4* 28-1/2 19-5/8 2-1/2
JP350SC 29-7/8 21-1/2 3-1/4* 28-1/2 19-5/8 2-1/2
Stainless Steel Cooktop Dimensions (in inches)
Model
*Depth of unit at conduit connection location (rear) is 6-1/4" on models JP968/938
and 4-5/8" on models JP960/930/350.
To Edge
of Front
Overall
GEA00793
