4 HUMAN INTERFACES 4.2 EXTENDED ENERVISTA UR SETUP FEATURES
4
Once the template has been applied, users are limited to view and edit the FlexLogic entries not locked by the template.
The effect of applying the template to the FlexLogic entries in the above procedure is shown below.

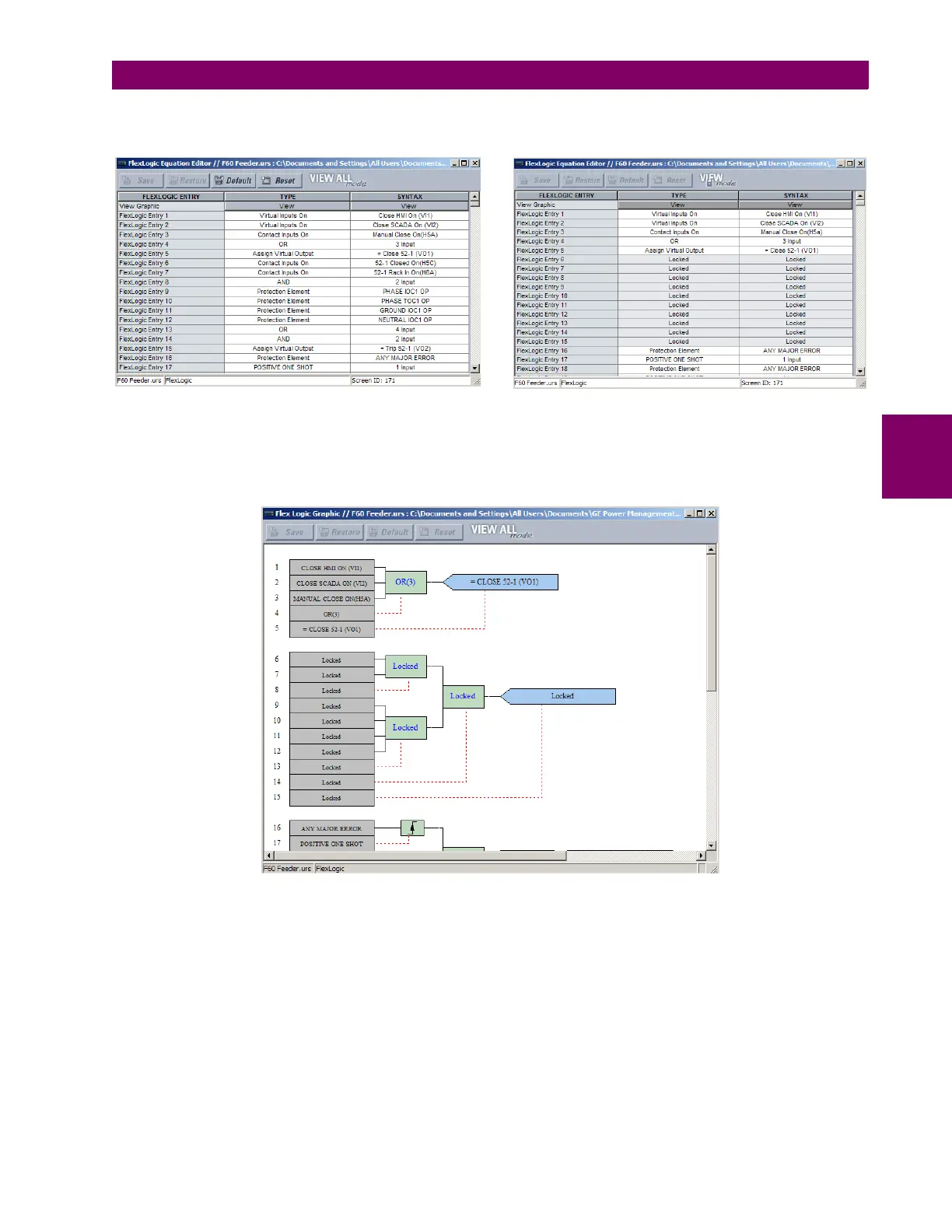

Figure 4–8: LOCKING FLEXLOGIC ENTRIES THROUGH SETTING TEMPLATES
The FlexLogic entries are also shown as locked in the graphical view (as shown below) and on the front panel display.
Figure 4–9: SECURED FLEXLOGIC IN GRAPHICAL VIEW
b) LOCKING FLEXLOGIC EQUATIONS TO A SERIAL NUMBER
A settings file and associated FlexLogic equations also can be locked to a UR serial number. Once FlexLogic entries in a
settings file have been secured, use the following procedure to lock the settings file to a serial number. A serial number is
viewable under Actual Values > Product Info > Model Information, the inside front panel, and the rear of the device.
Typical FlexLogicâ„¢ entries without template applied. Typical locked with template via
the command.Template Mode > View In Template Mode
FlexLogicâ„¢ entries
842861A1.CDR
