C-2 L30 Line Current Differential System GE Multilin
C.1 OVERVIEW APPENDIX C
C
C.1.3 FILE TRANSFER BY IEC 61850
The L30 supports file transfer by IEC 61850. The approach is as follows, using the SISCO AX-S4 61850 client software as
an example.
1. In the AX-S4 61850 Explorer window, click the Tools menu and access the SISCO File Transfer Utility.
2. Select the Remote AR Name from the drop-down list. Available files appear in the File Specification area on the right
side of the window.
3. With the Copy option active, select a file to transfer and click the Go button. The file is copied and displays in the
Local list on the left side of the window.
4. Repeat the process to transfer any other files.

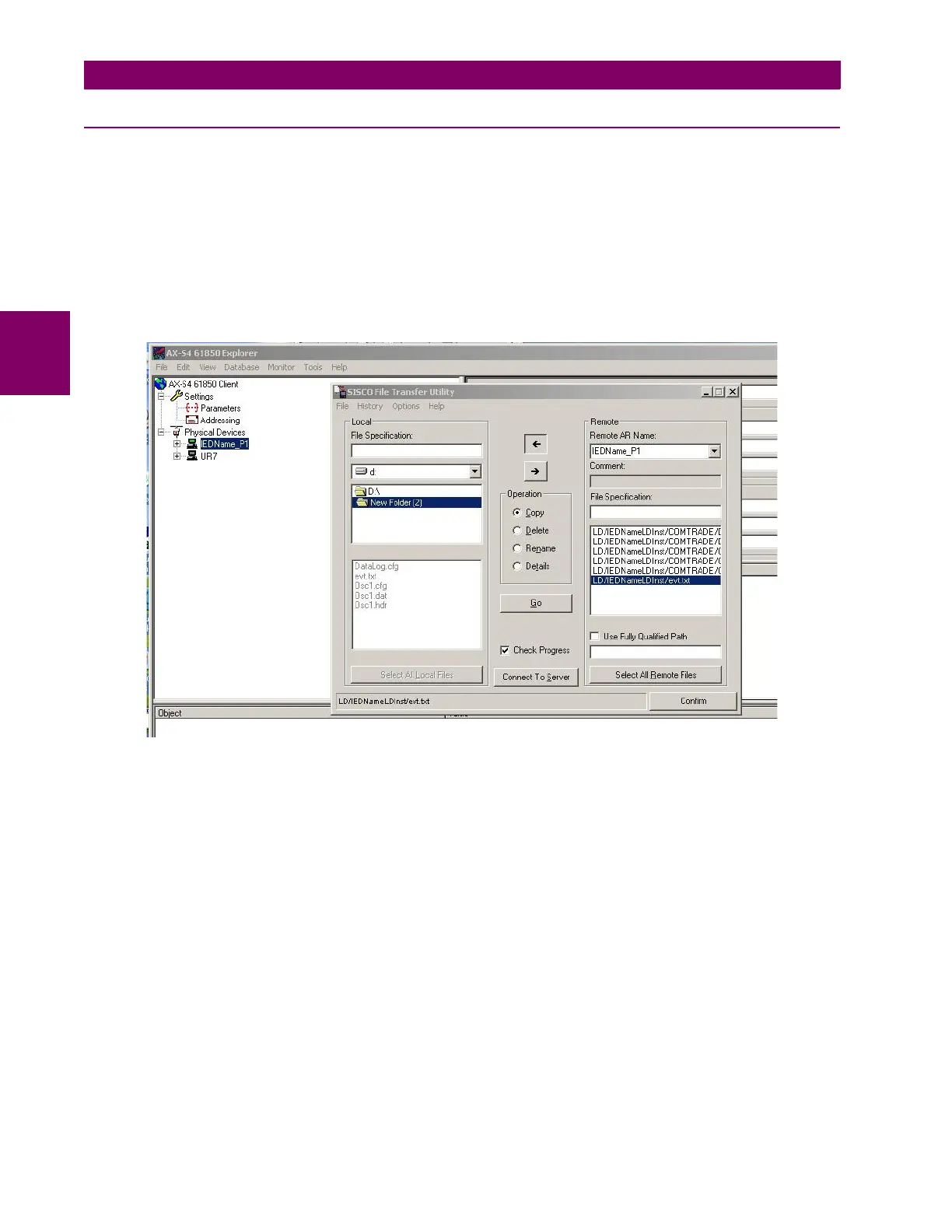

Figure 0–1: FILE TRANSFER BY IEC 61850
