5

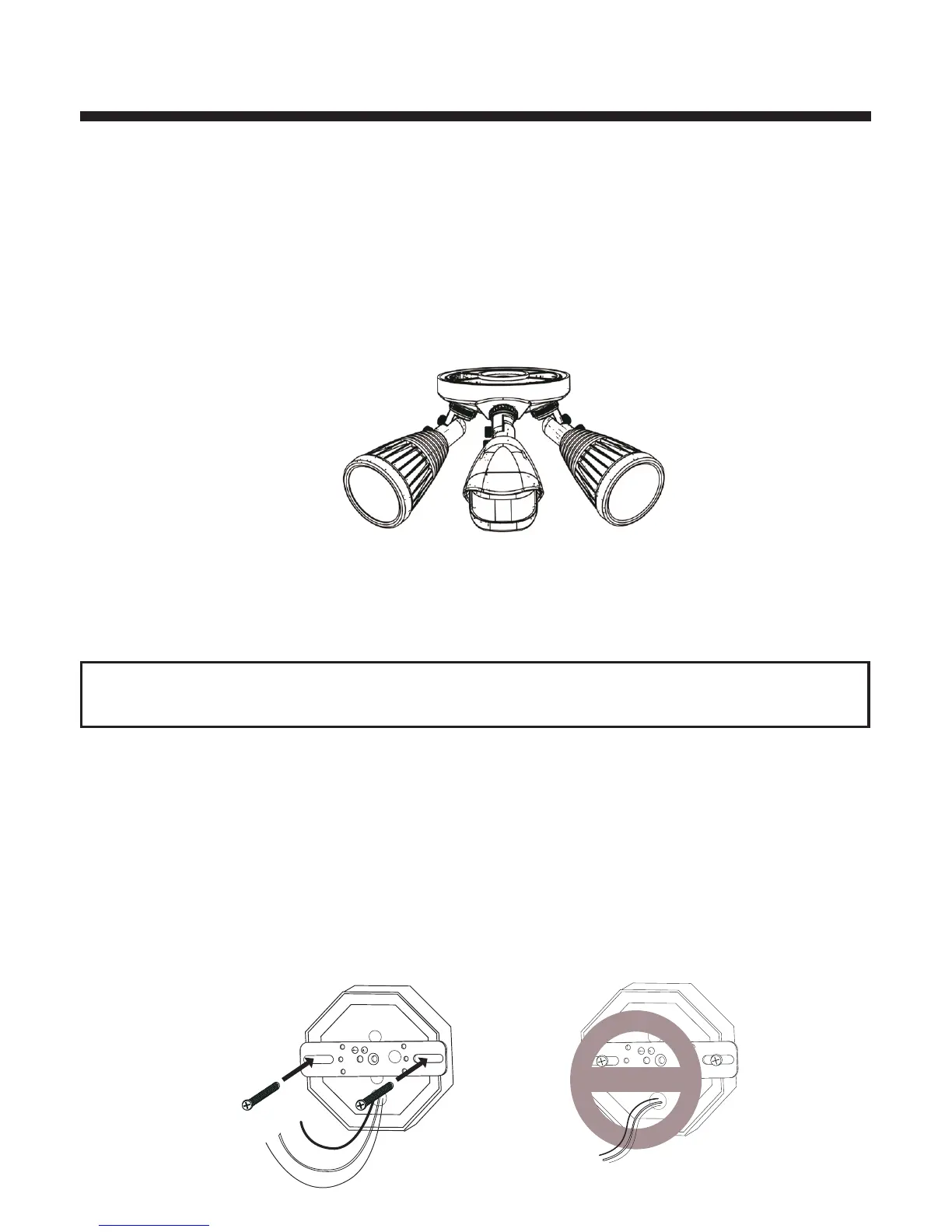

Locate the adjustment knob and lock nut on the LED fixture. Loosen both and
position LED light housings into the approximate position prior to mount-
ing. For wall mount, the LED light housings should be positioned above the
motion sensor. For under eave mount, position cover housing horizontally so
that LED light housings are facing outward, away from the wall and motion
sensor is positioned in front of LED light housings.
Fine tune adjustment can be completed after LED light fixture is mounted to
junction box.
WIRE CONNECTION
1. Remove the existing light fixture and disconnect house wires (black, white
and ground).
2. Install mounting plate to junction box as shown using two mounting
screws (included). Install screws until snug so that mounting plate does not
move. Do not over tighten screws. See Fig. A.
3. Position gasket over junction box. Route black, white and ground house
wires through one of the large openings of the gasket. See Fig. B.
WARNING: Turn power off at circuit breaker or fuse box. Do Not rely
on a wall switch alone to turn off power.
Fig. A
Fig. B
