4. Locate black, white and ground wires coming from LED light fixture. Strip
wires 3/8” (9.5mm) if not previously stripped. Hold BLACK house wire and
BLACK fixture wire together with ends even. Align any frayed strands or con-
ductors. Push wires into wire nut and screw ClockWise until two twists are
visible in the wires. Repeat above procedure for both the WHITE house wire
and the WHITE fixture wire. Repeat above procedure for both the GREEN or
BARE COPPER house wire and the BARE COPPER fixture wire.
5. Insert mounting bolt through center
of cover housing as shown. Align
mounting bolt thru the small center hole
of gasket to hold gasket in place.
Position cover housing and gasket over
the junction box. Align center bolt with
center hole of mounting plate. Using
Phillips screwdriver, screw mounting bolt
into mounting plate until LED light
fixture is snug; do not over-tighten.
6. Cover mounting bolt by inserting GE badge into hole;
align badge with mounting slots. Press in until snug.
7. If a location junction box was not used, caulk edge of
cover housing surface with silicone weather resistant
sealant (not included).

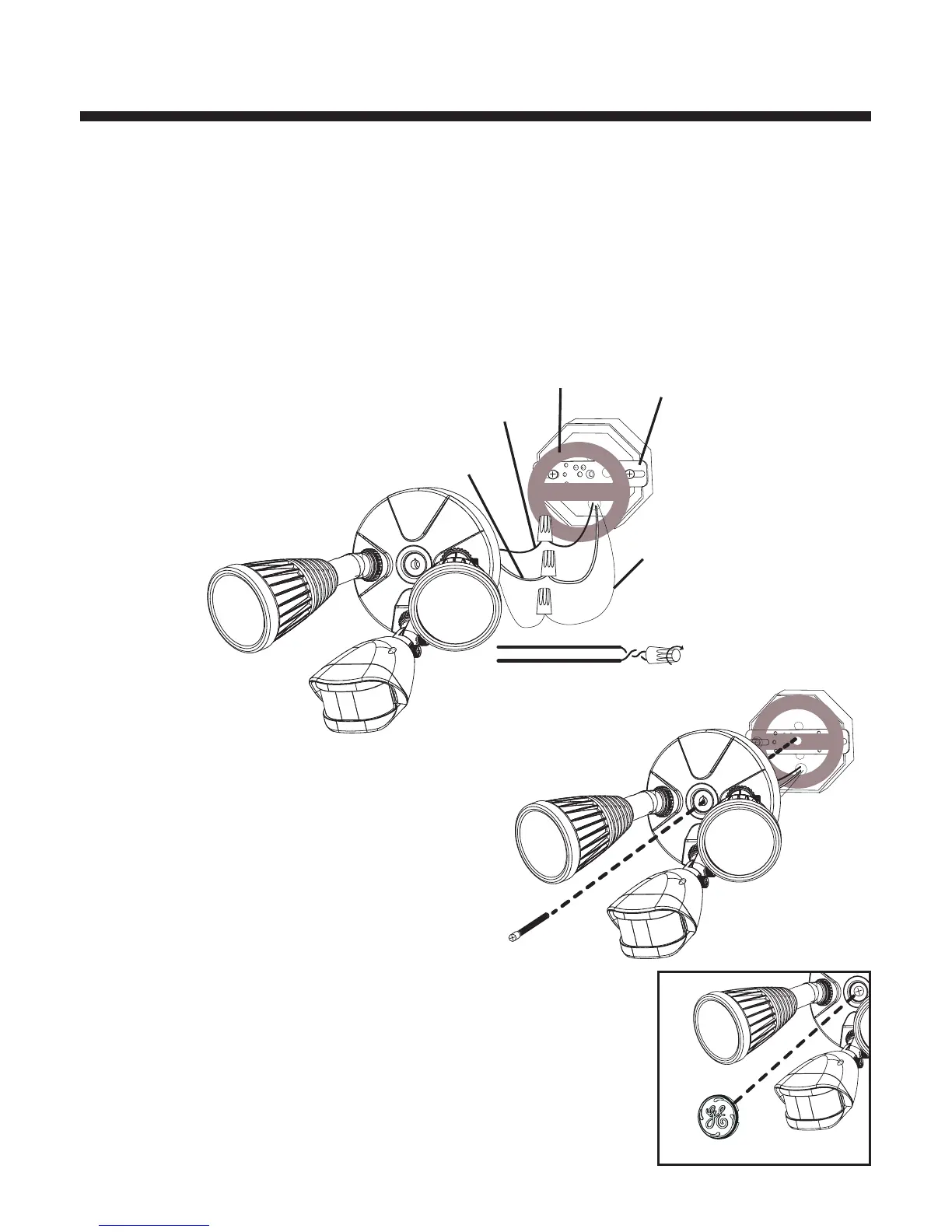

Mounting Plate
Black to
Black
White to
White
House ground
wire to copper
ground wire from
fixture
Gasket
!
!
!
