7

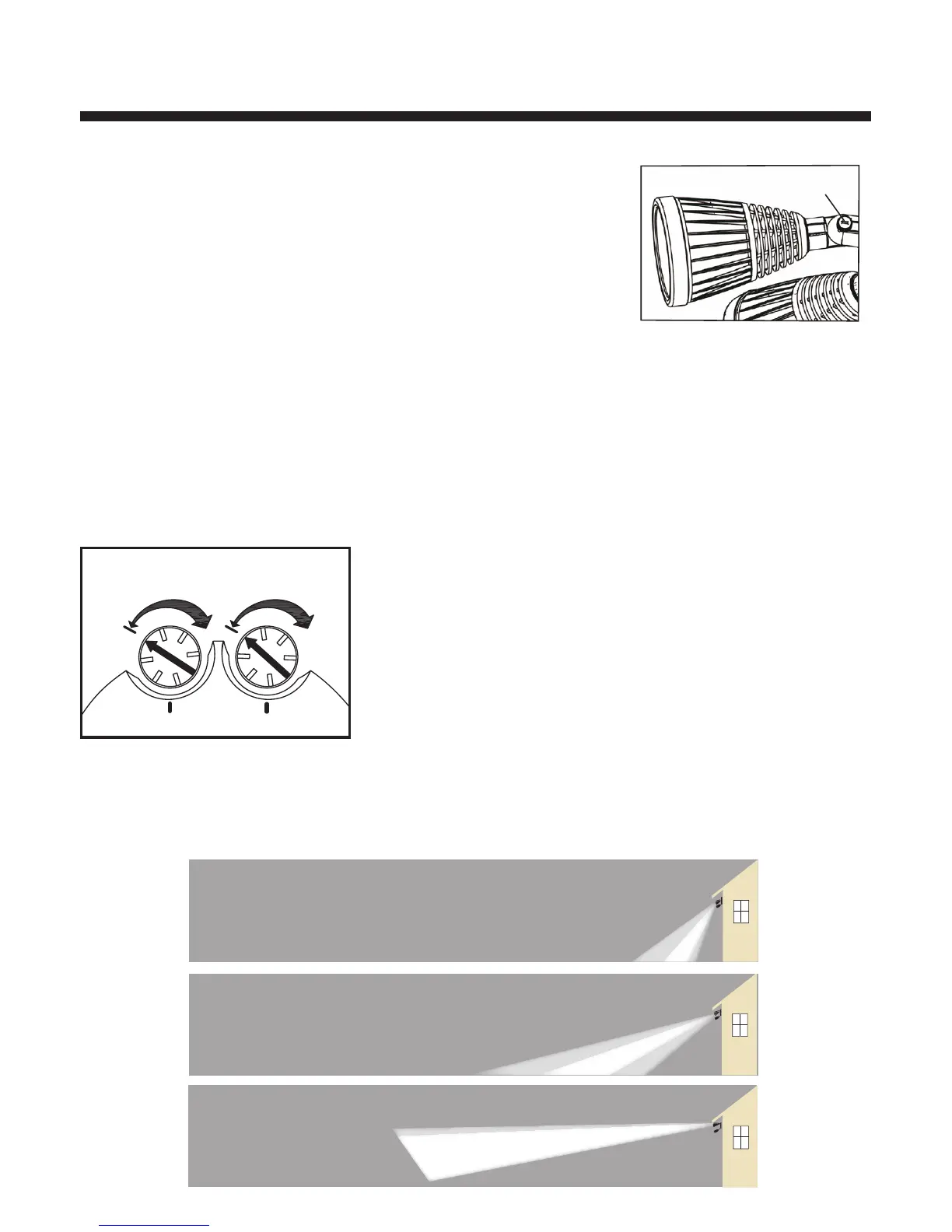

ADJUSTING LIGHT HOUSINGS
1. Slightly loosen adjustment knob and lock nut for
one housing at a time. Gently position LED housing
to final desired position. Tighten adjustment knob
and lock nut. If necessary, follow same adjusting for
the other Light Housing.
2. Turn on power at circuit breaker or fuse box. Turn on light switch (if pres-
ent). Check LED light output to ensure proper coverage.
TEST MODE, INITIAL SET-UP
Note: After power is turned on, the motion sensor requires approximately
one minute to ‘warm-up’ before it will detect motion levels.
The LED light fixture is pre-set to the ‘TEST’ mode
from the factory to help you position the mo-
tion sensor so it can detect motion in the desired
area. In ‘TEST’ mode, the LED lights will turn on for
approximately 5 seconds each time motion is de-
tected (including during daylight). After complet-
ing the test set-up, you can adjust the time the
lights remain on from 1 to 10 minutes (variable).
While in ‘TEST’ mode the lights will turn on during
daylight.
Adjustment
Knob
Time
TEST
MAX
MAX
Dark
Focused spot with surrounding flood for
entrances, driveway or cars, gate access, etc.
Broad spot with expanded flood
for yards, large areas, decks, etc.
Focused flood for fence line,
shed or remote building,
detached garage, side of
house, boat, trailer, etc.
