8

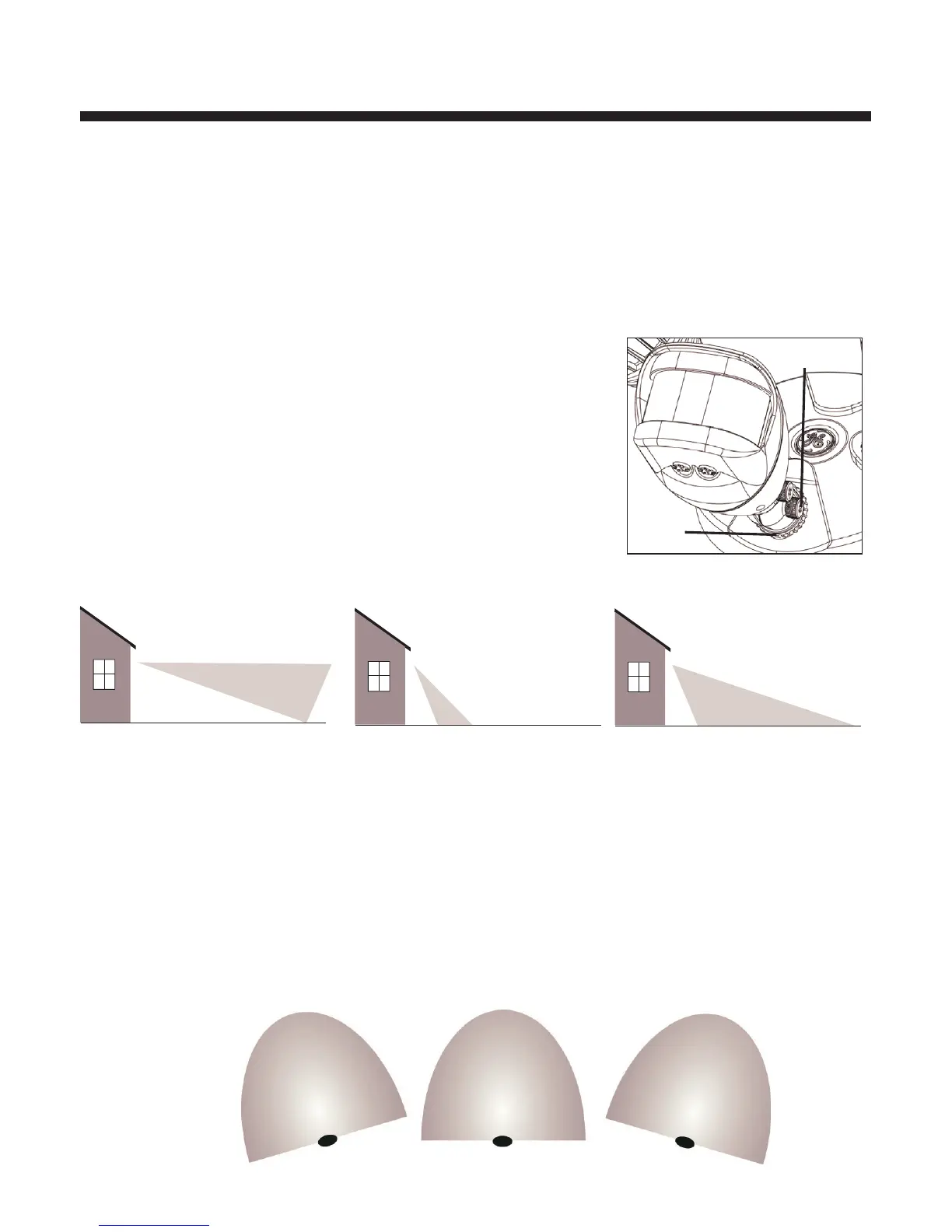

MOTION SENSOR POSITION SET-UP
Note: The motion detection range has been set to a maximum sensitivity, up
to 60ft. This is the optimum, reliable distance. At longer distances, there is
a greater tendency for ‘false activations’. Maximum sensitivity distance will
vary based on outside conditions (temperature, weather), mounting location
and detection angle.
1. Ensure power is turned on to the
LED Light fixture.
2. Loosen the adjustment knob and lock nut for the
motion detection sensor and position it
so points outward toward the approximate middle
of the area to be detected.
3. Angle the Motion sensor slightly downward (ap-
proximately 10-15°). This will create a maximum
detection area with the most accuracy, from 6ft to 60ft.
Avoid pointing sensor too far downward as this will reduce detection cover-
age and overall distance. If the sensor is pointed too high, it may not detect
movement closer to the fixture. It may be necessary to make minor adjust-
ments until you have the sensor set to the optimum position.
4. Position the sensor so any areas to the far left or far right are covered.
Distance outward from the sensor is fixed, so no adjustments are necessary.
The detection pattern is similar to a half circle, however it will detect farther
ahead than on each side.
Adjustment
Knob
Lock
nut
Too Far To Close
Best Option
