GE MEDICAL SYSTEMS LOGIQ A1 BASIC SERVICE MANUAL
REV 2 5176463-100
29
17. Freeze
18. Body marks
19. Probe position
20. Patient name
21. Gray scale
22. Image annotation
23. Hospital name
24. Level surveyor’s staff

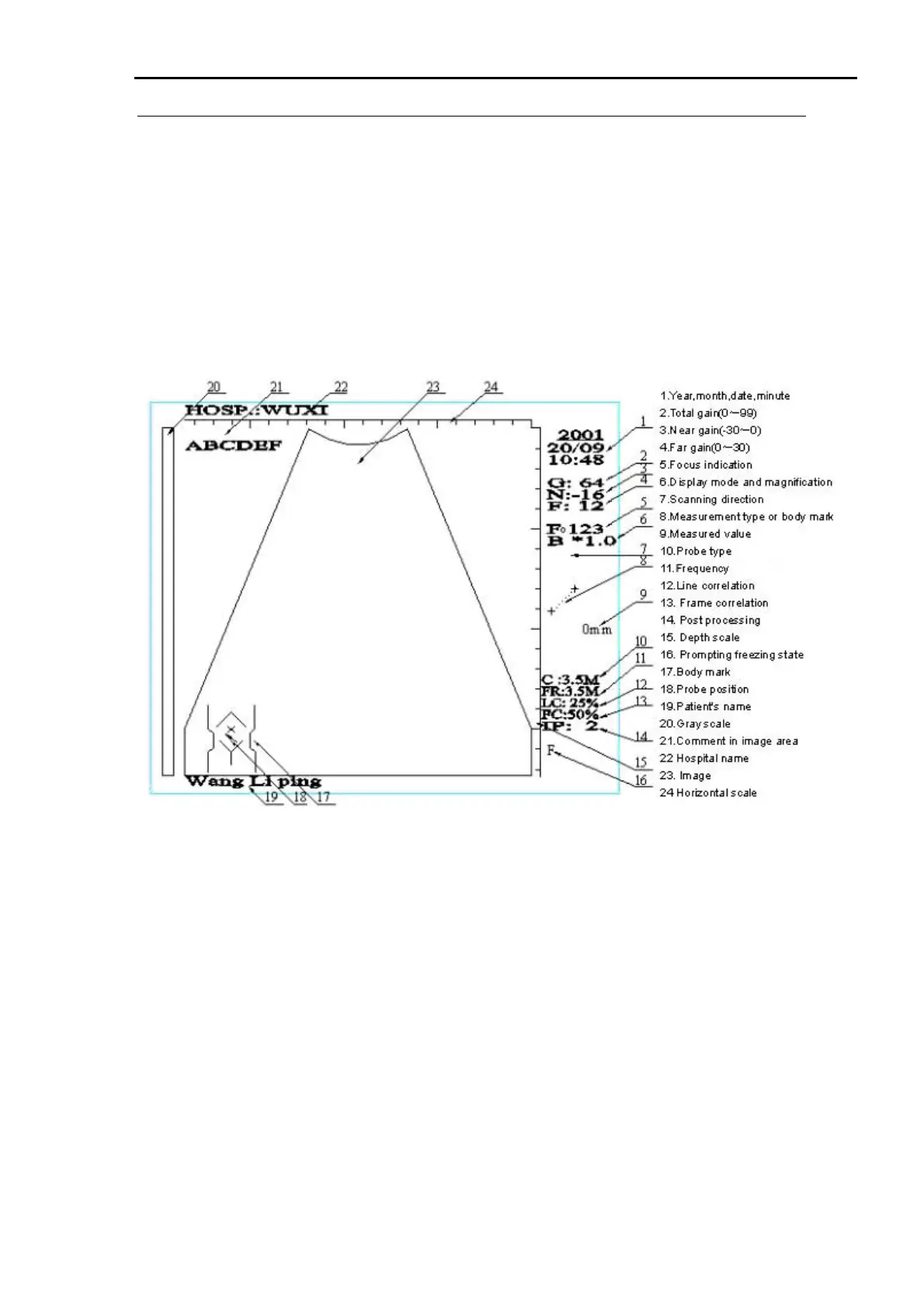

Monitor Display after turning-on
Installation 4-1
4-2-2 Basic control
The basic control is described in the Table 4-1, it is useful to check the system when
installing.
