LOGIQ C5/C5 PRO Quick Guide Direction 5272220-100 Rev. 2 5
Power Off
To power down the system:
1. Press the Power On/Off switch at the front of
the system once.
2. The System-Exit window is displayed.

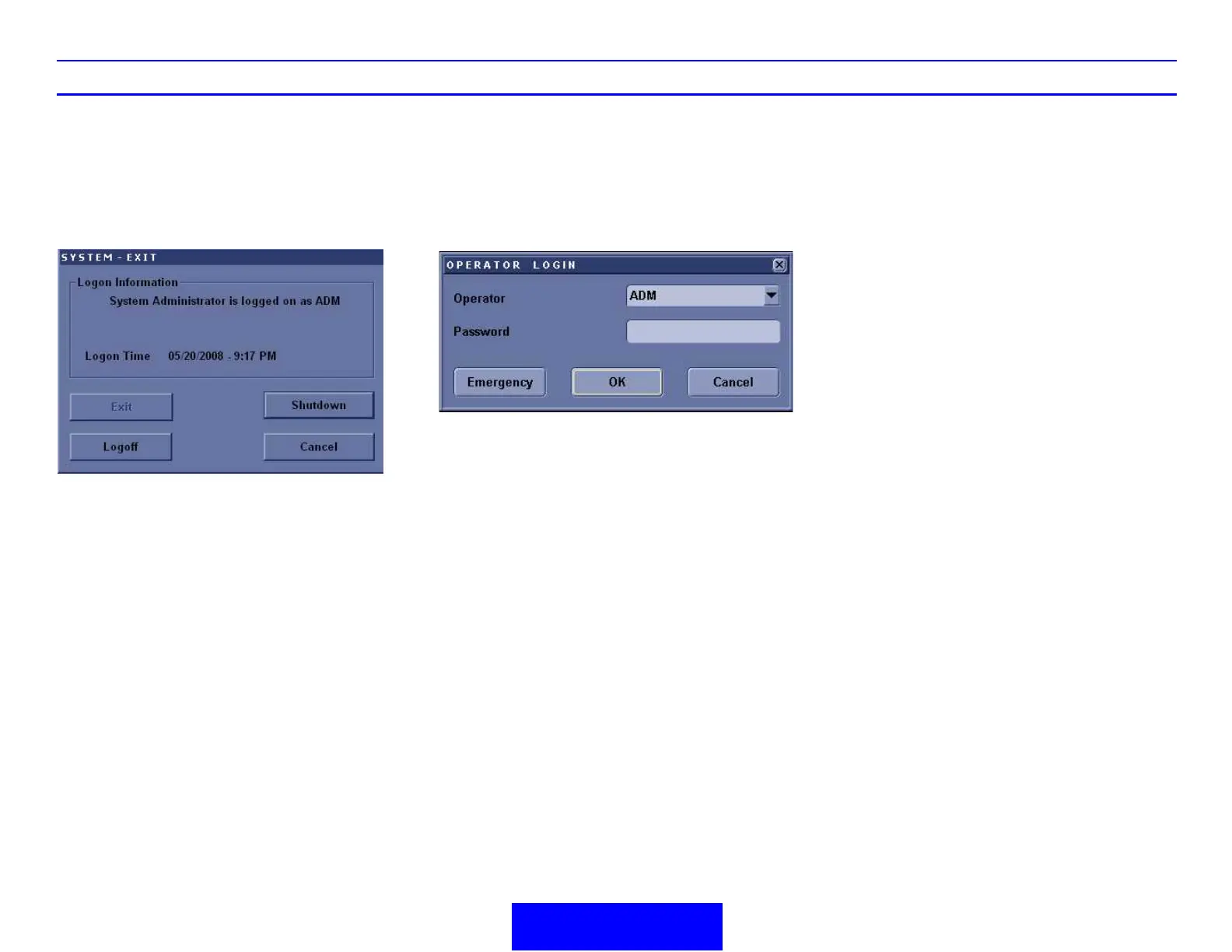

Figure 7. Power Off Window
3. Using the Trackball or Select key, select
Shutdown.
The shutdown process takes a few seconds
and is complete when the power LED turns
amber.
4. Disconnect the probes.
Clean or disinfect all probes as necessary.
Store them in their shipping cases to avoid
damage.
Starting an Exam
You need to select a pre-configured dataflow that
sets up the ultrasound system to work according to
the services associated to the dataflow.
1. Select your Operator Login and type in your
Password:
Figure 8. Operator Login Window
2. Press OK.
3. Fill in the New Patient menu as described on
page 1-6.
OR,
If the patient name is on the patient record list,
Trackball to the patient’s name to highlight the
name, (or perform a search to locate the patient).
To Next Page
