5 - 2 Chapter 5 Components and Functions (Theory)
Section 5-2Block Diagram
5-2-1 System Diagram

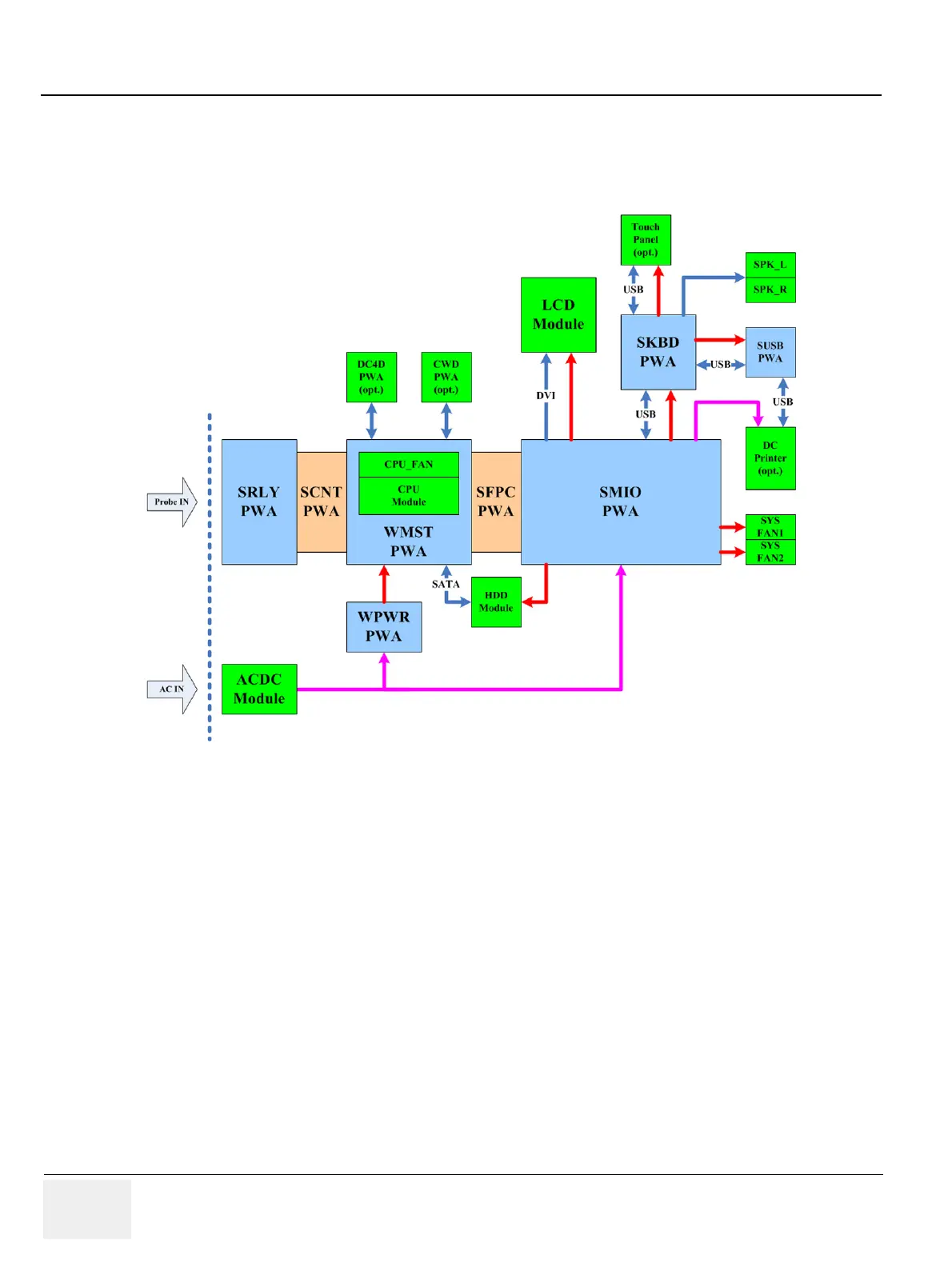

Figure 5-30 LOGIQ F Series System Diagram
