GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
Chapter 4 - Functional Checks 4 - 7
4-3-5 System Features
4-3-5-1 Control Panel
NOTE: CWD, PDI, 4D, CF and touch panel are not supported on LOGIQ F3.
4-3-5-2 LOGIQ F Series SoftMenu Key Tour
1.) Page Up/Down key: To turn the menu page up and down.
2.) Rotary key: Rotate to adjust the menuMonitor Display

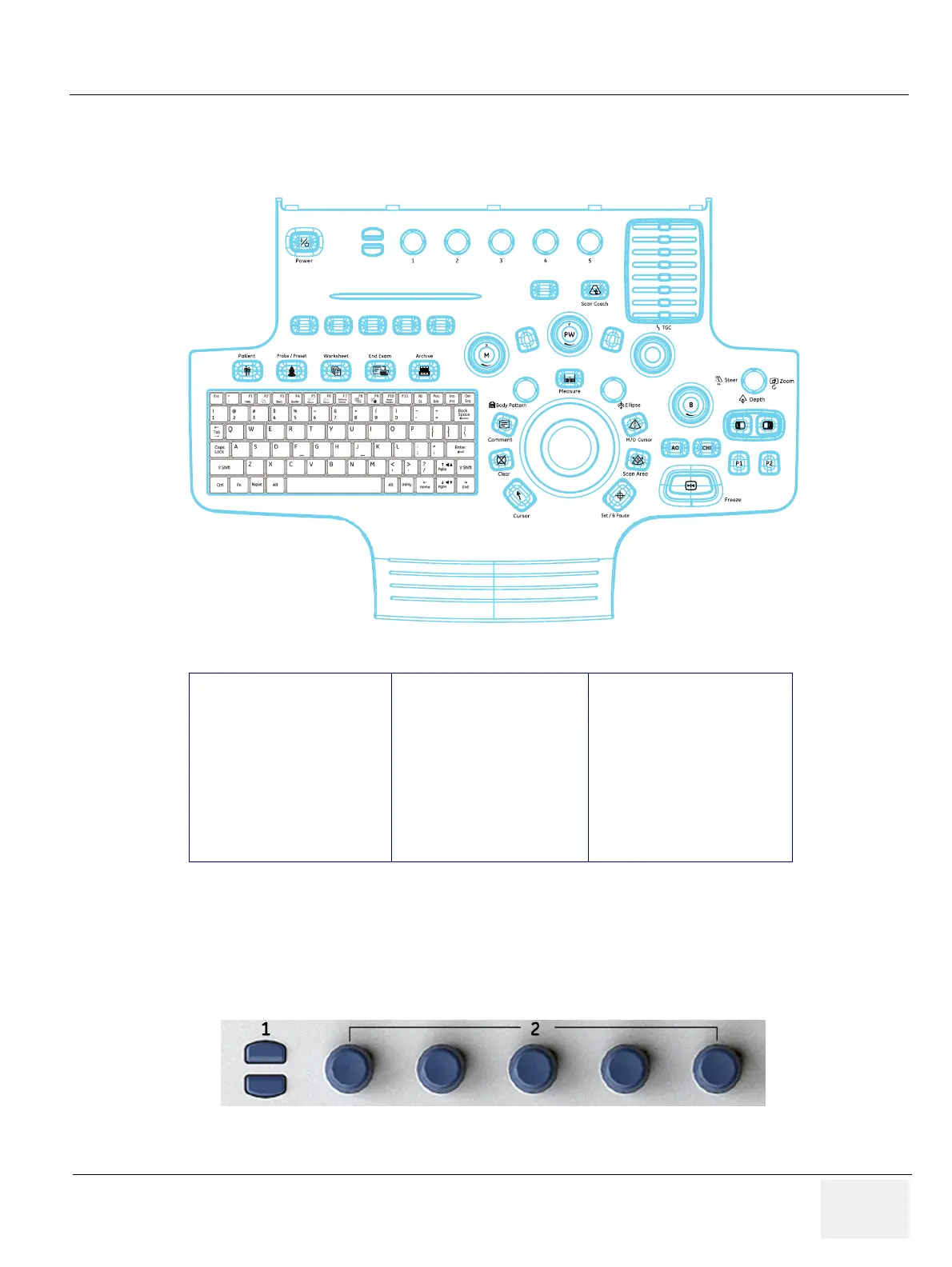

Figure 4-5 Control Panel Tour
1. Power On/Off
2. Page Up/Down keys
3. Rotary Button
4. TGC
5. User Defined keys
6. Patient key
7. Probe/Preset keys
8. Worksheet key
9. End Exam key
10. Archive key
11. A/N Keyboard
12. 4D (option)
13. Scan Coach
14. Mode/Gain/XYZ Controls
15. Trackball
16. Cursor key
17. Clear key
18. Comment key
19. Body Pattern key
20. Measure key
21. Ellipse key
22. M/D Cursor key
23. Scan Area key
24. Set/B Pause key
25. Freeze key
26. AO and CHI keys
27. Steer/Zoom/Depth key
28. Left/Right key
29. P1 and P2 keys
Figure 4-6 SoftMenu Key Tour
