GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
Chapter 4 - Functional Checks 4 - 9
4-3-5-3 Touch Panel (Option) (cont’d)
b.) Mode/Function Specific Controls
In general, the key name is indicated at the top of the key. There are different types of Touch panel keys
as illustrated below:
1.) Press to toggle control on/off.
2.) Progress/Select keys are used for controls that have three or more choices.
3.) Press to move to the next Touch panel page.
4.) Parameters which can be adjusted by rotaries knobs.

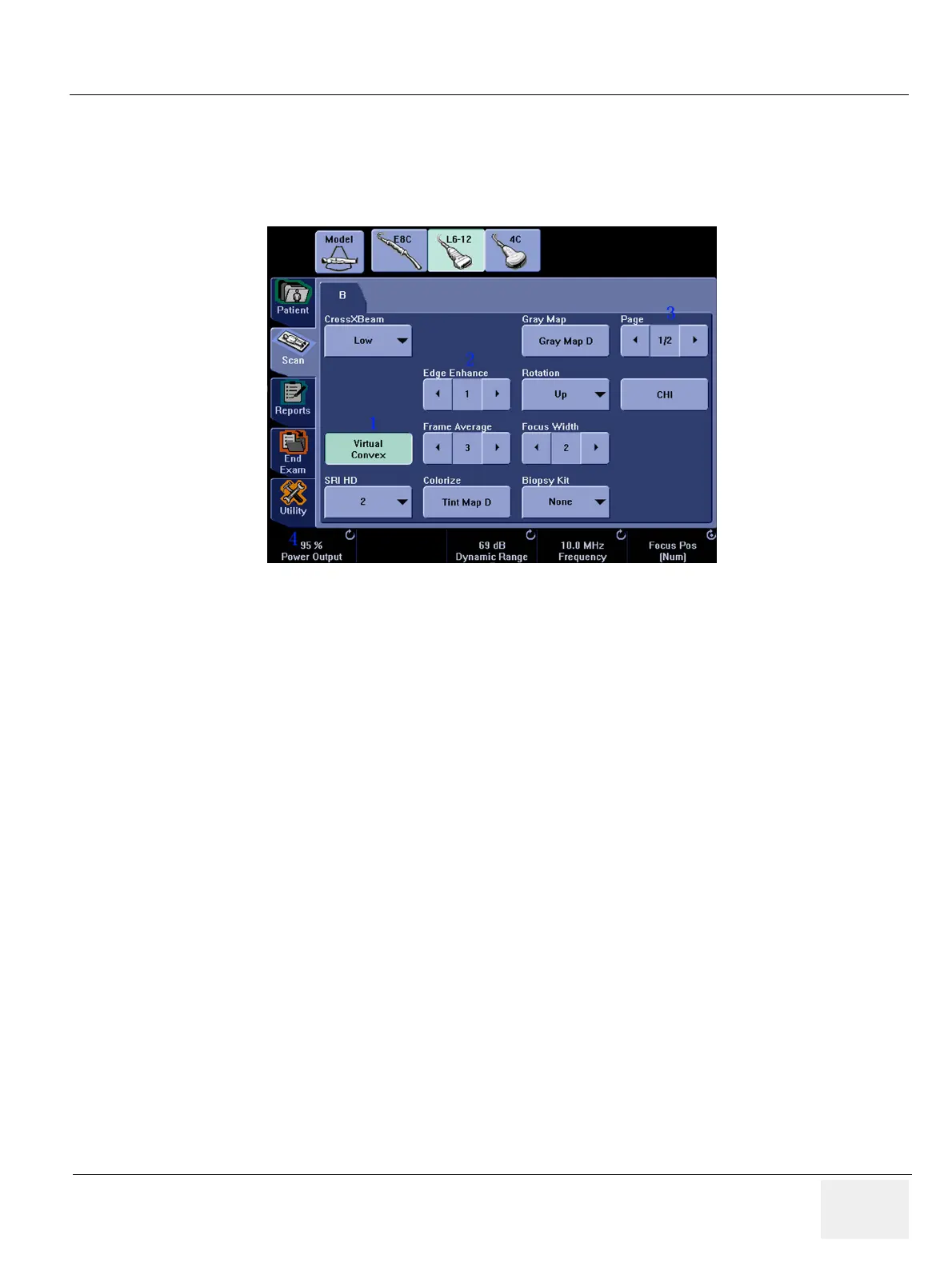

Figure 4-8 Mode/Function Specific Controls
To Next Page
