Technical Specifications: Recording
Sending ECGs to the Following Units with the A5 Protocol
CardioSys / CardioSoft SW version V1.0 and later
Remote Start (Hardware)
Paper feed via remote control connection (depending on selected
operating mode). External make contact referred to chassis via circuit
reference.
 Source impedance Ri < 300 Ω
 Contact dwell > 100 ms
 Non-destructive load ± 10 V
 ESD interface protection up to ± 10 kV

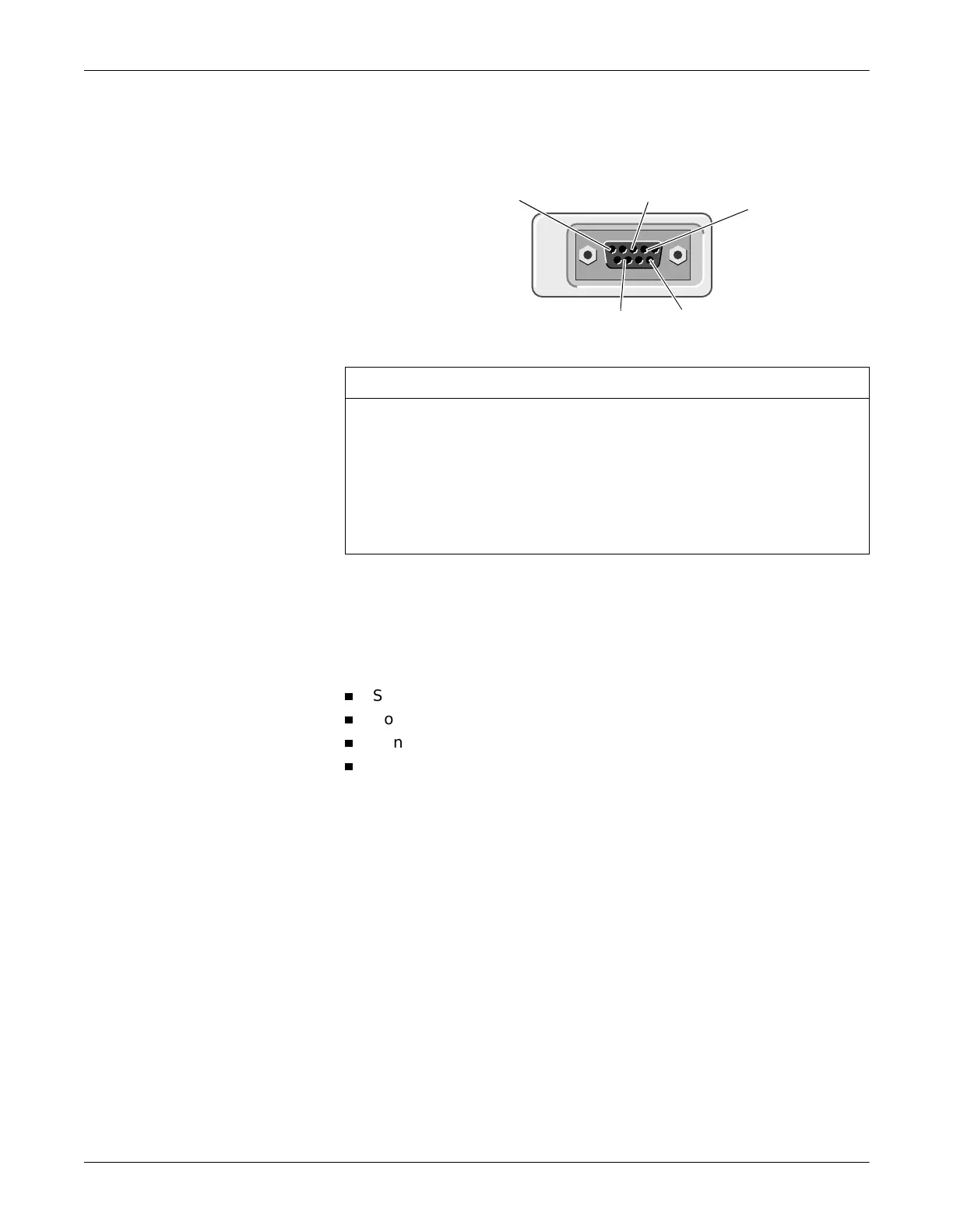

Pin Assignment of Data Port
2RDXE
3TDXE
5 Circuit reference
6 Modem supply
8RDXE
2
5
8
3
6
104A
