UNDER COUNTER INSTALLATION
GASCOOKTOP MUST BE LOCATEDIN AN
ADJACENT ACCESSIBLE LOCATION TO THE
RIGHT.
GASOR ELECTmC COOKTOPS MAY BE INSTALLEDOVER
THIS OVEN. SEE COOKTOPE6TALLATION INSI_ucnoNs
FOR CUTOUTSI'_L SEE LABELONTOP OF OVENFOR
APPROVED COOKTOPMODELS.
36"
JUNCTION BOX 171/2"_
LOCATION
I
I
I !
I
I
I
25 1/4" MAX.
OVERLAP
1 1/2" CABINETTOP
25'
/
271/2" MIN. /
281/8" MAX.
l I I
USE 2 -- 2 X 4's OR EQUIVALENTRUNNERS
SPACED10" APART (ON INSIDESURFACES)
CENTEREDIN OPF.NING& FLUSHWITH TOP
OFTOE PLATE.

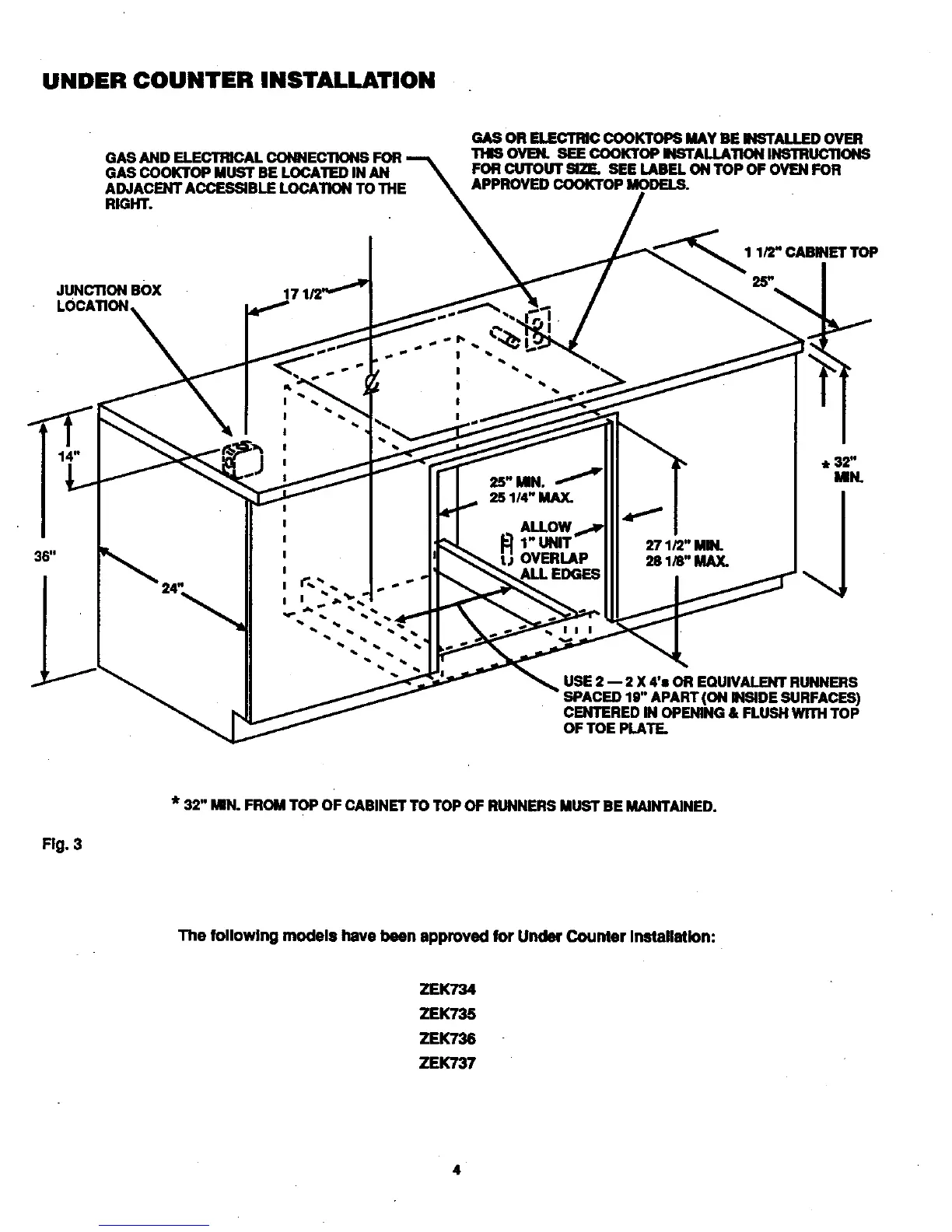

FIG. 3
* 32" kilN. FROM TOP OF CABINETTO TOPOF RUNNERS MUST BE MAINTAINED.
The following models have been approved for Under Counter Installation:
ZEK734
ZEK735
ZEK736
ZEK737
