6
Power supply
locations
Installation Preparation
Stainless Steel Gas Cooktop
•A properly-grounded 3-prong receptacle
should be located within reach of cooktop’s
four foot power cord.
IMPORTANT: (Please read carefully).
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
•The power cord of this appliance is
equipped with a three-prong (grounding)
plug which mates with a standard three-
prong grounding wall receptacle to mini-
mize the possibility of electric shock hazard
from this appliance.
•The customer should have the wall recep-
tacle and circuit checked by a qualified
electrician to make sure the receptacle is
properly grounded and has correct polarity.
•Where a standard two-prong wall receptacle
is encountered, it is the personal responsibil-
ity and obligation of the customer to have it
replaced with a properly grounded three-
prong wall receptacle.
Do Not, Under Any Circumstances, Cut Or
Remove The Third (ground) Prong From The
Power Cord.
Do not use an extension cord.
Important: Improper grounding and
improper polarity of the house wiring can
cause continuous sparking of the ignition
system. Be sure to check for correct
grounding and polarity.
Gas supply:
These cooktops are designed to operate on
natural gas at 4" of water column pressure or
on LP gas at 10" of water column pressure.
–These cooktops are shipped from the
factory set for either natural gas or LP gas.
Check to be sure you have the correct
cooktop for the type of gas being used.
•The pressure regulator must be connected in
series with the manifold of the cooktop and
must remain in series with the supply line
regardless of type of gas being used.
For proper operation, the maximum inlet
pressure to the regulator should be no more
than 10" water column pressure for natural
gas and 14" water column pressure for LP gas.
•When checking the regulator, the inlet
pressure must be at least 1" greater than the
regulator output setting.
–If the regulator is set for 4" of water column
pressure, the inlet pressure must be at
least 5".
–If the regulator is set for 10" of water
column pressure, the inlet pressure must
be at least 11".
For ease of installation, and if local codes
permit, the gas supply line into the cooktop
should be 1/2" or 3/4" ID flexible metal
appliance connector, three to five feet long.
Note: Purchase new flexible line. DO NOT
USE OLD, PREVIOUSLY USED FLEXIBLE
LINE.
•Make gas connection through rear wall, or
on cabinet floor at rear, as illustrated.
Electrical supply:
This cooktop features pilotless electric igni-
tion for energy savings and reliability.
It operates on a 120 volt, 60 Hz power supply.
A separate circuit, protected by a 15 amp time
delay fuse or circuit breaker, is required.
Optional Combination Installations
This cooktop may be installed in combina-
tion with a ZVB36 Monogram Downdraft
Vent, a ZET837 Single Oven or a ZTD910
Warming Drawer.
• The gas and electrical supply must be
located where it will not interfere with
vent housing, the oven or the warming
drawer. See pages 9 through 11 for
alternate installation requirements.

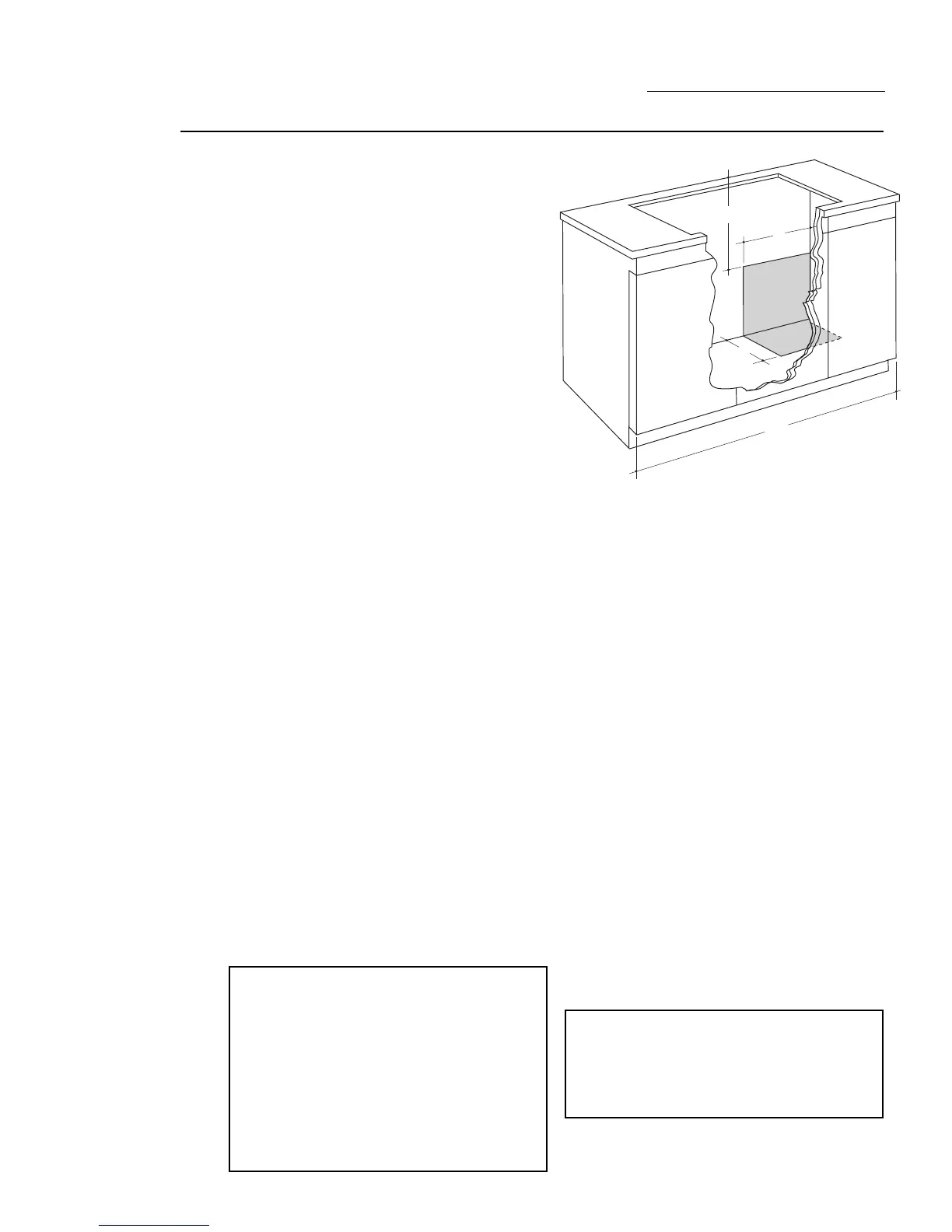

Note:
Locate gas and electrical
supply within shaded area. Locations
shown for a 42" cabinet base, adjust
when using other cabinet size.
