QS–20 MULTILINK ML1600/2400 ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE
QUICK START GUIDE
Z Locate and click on the Ethernet card (it will have TCPIP Protocol
as part of its name).
The Ethernet card is typically referred to as an Ethernet adaptor.

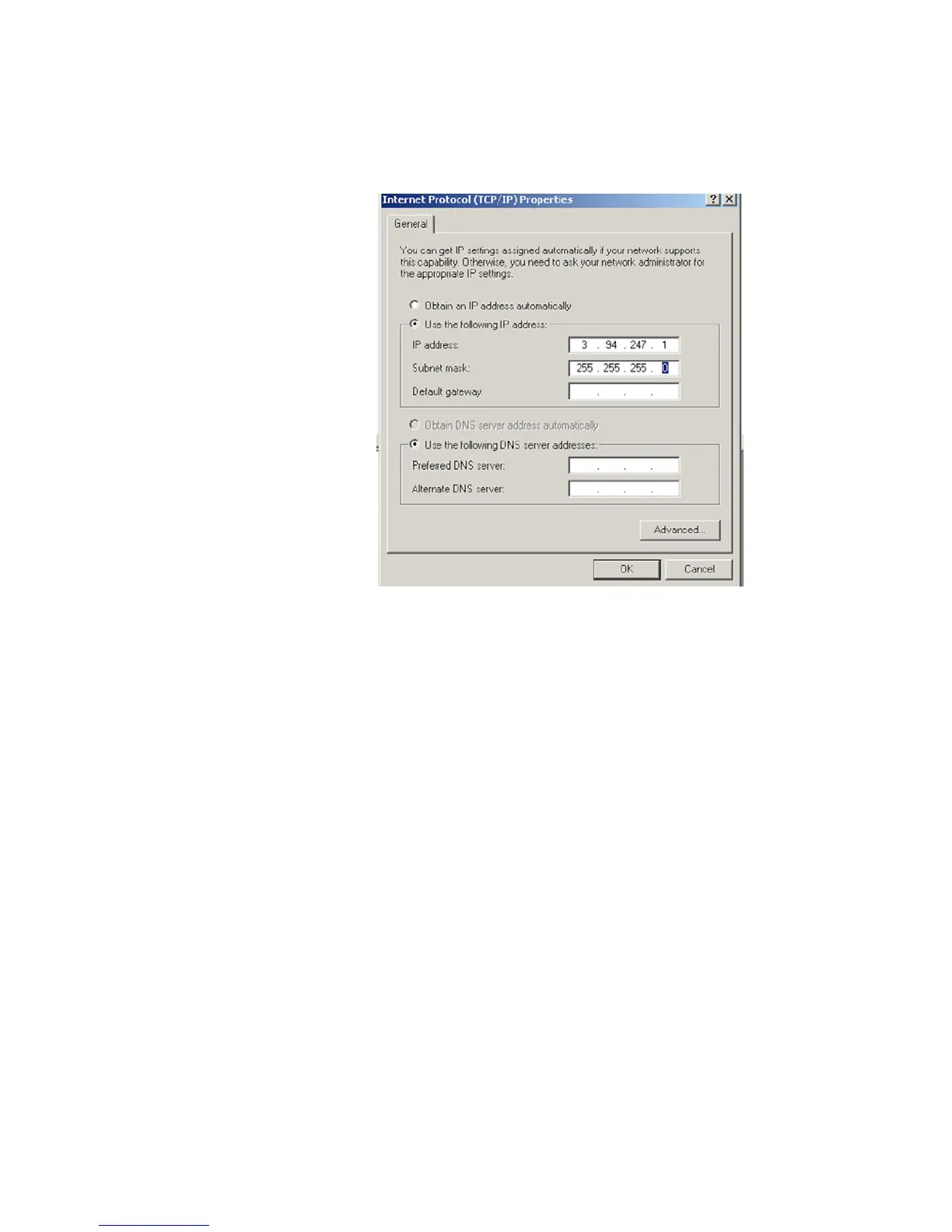

Z Select Use the following IP address then enter a unique IP address
(from 3.94.247.001 to 3.94.247.254 if using our test network
address range).
Z Enter the subnet mask which, if using our test network, will be
255.255.252.0.
Z Select OK, then OK again to exit the LOCAL AREA NETWORK
PROPERTIES menu.
Z Connect the computer’s Ethernet port to the switch using a
straight-through cable.
Z Ensure that the link LED come on, on both the switch and PC.
