CHAPTER 1: INTRODUCTION ORDER CODES FOR MX350
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL 1–11
Order codes for MX350
The information to specify an MX350 relay is provided in the following order code figure.

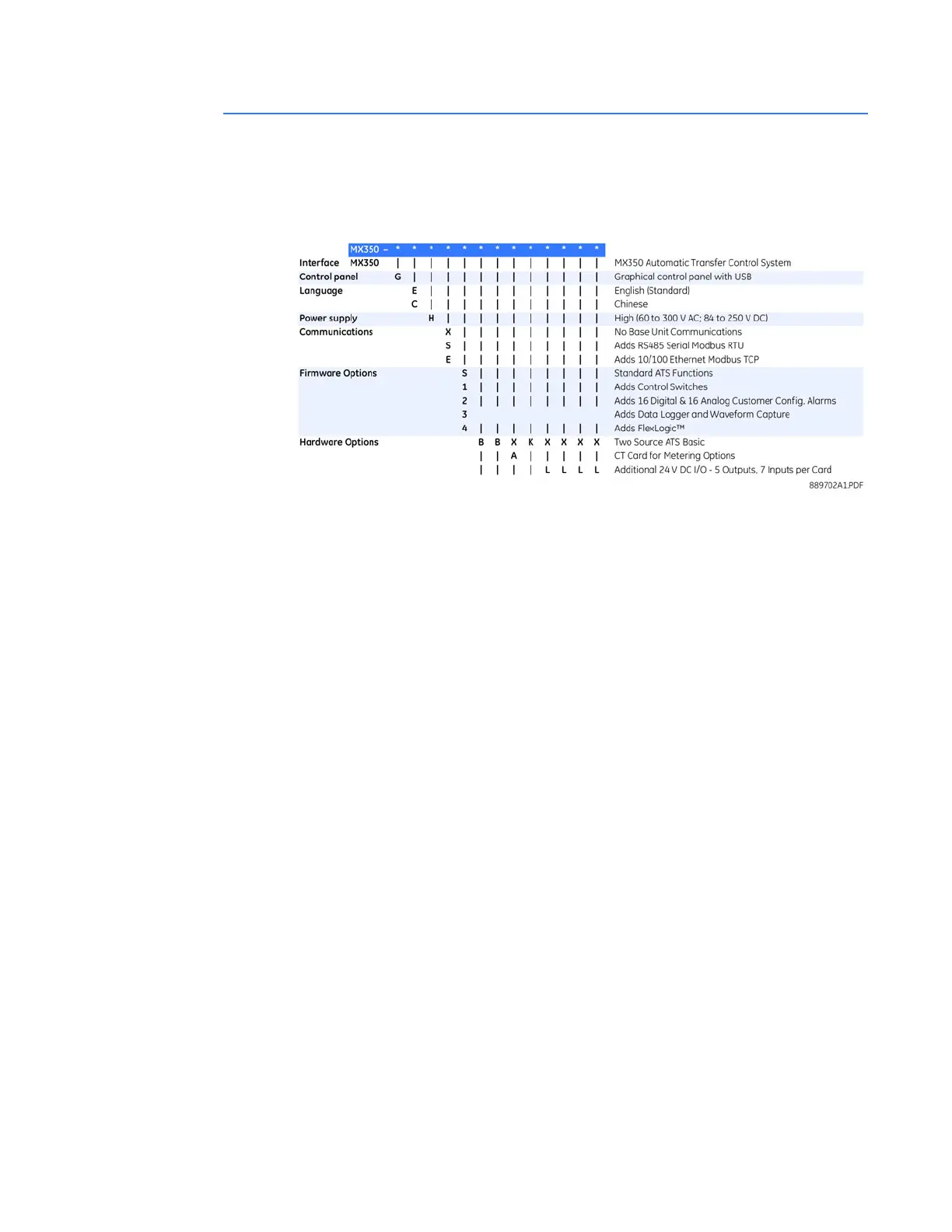

Figure 5: MX350 order codes
Example of an MX350 order code
MX350-GEHE3BBAKLL: MX350 with graphical control panel incl. USB port, English
language display, high voltage control power supply (84 to 250 VDC or 60 to 300VAC), RS-
485 Modbus RTU port and 10/100 Modbus TCP/IP Ethernet port), data logger and
waveform capture, source 1 voltage sensing, source 2 voltage sensing, load current
sensing, P relay function, and two input/output cards.
