CHAPTER 1: INTRODUCTION OVERVIEW
MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL 1–5
ATS types
Automatic Transfer switch types to be controlled by the Controller are Standard (Open)
Transition, Delayed Transition, and Closed Transition. The figure below shows the one-line
diagram for all three types.

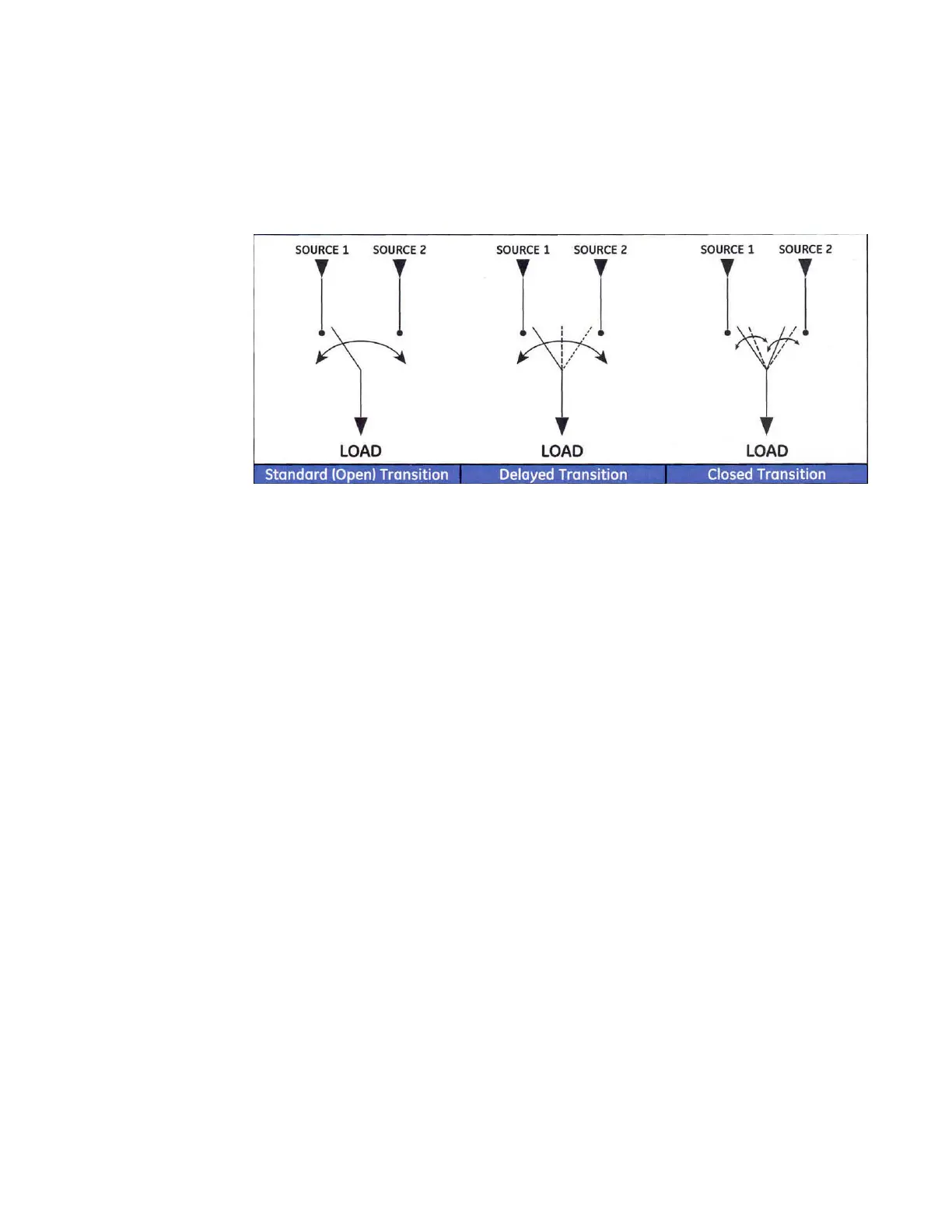

Figure 4: Automatic transfer switch types
In addtion, the MX350 can control the Bypass/Isolation type version of the three basic ATS
types.
