1–2 MX350 AUTOMATIC TRANSFER CONTROL SYSTEM – INSTRUCTION MANUAL
OVERVIEW CHAPTER 1: INTRODUCTION
The standard note icon emphasizes a specific point or indicates minor problems that may
occur if instructions are not properly followed.
The caution icon indicates that possible damage to equipment or data may occur if
instructions are not properly followed.
The danger icon provides users with a warning about the possibility of serious or fatal
injury to themselves or others.
Description of the Automatic Transfer Controller system
The MX350 is equipped with a graphical control panel:
• Includes a 89 mm (3.5-inch) 320 by 240 pixel backlit colour LCD screen, 15
pushbuttons, and 7 LED indicators, which provide access to actual values, fault and
alarm lists, event records, and setting configuration. A USB port is provided for laptop
computer connection.

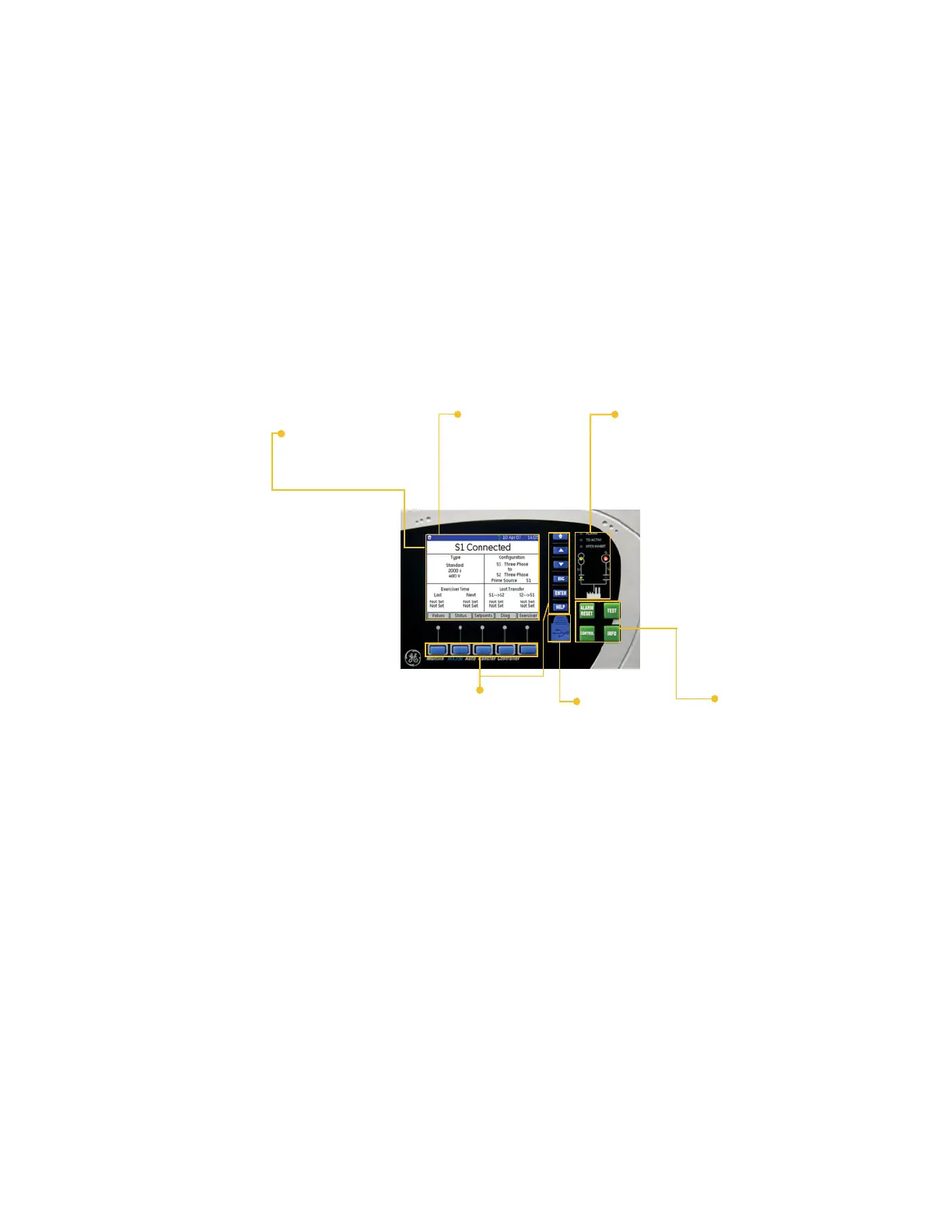

Figure 2: MX350 feature overview
The MX350 includes the following input/output capabilities:
• 5 to 25 contact outputs
• 5 to 32 contact inputs
The following option packages are available:
Option A:
• Full function ATS control with full sensing and control capabilities, depending on order
option.
• Expanded diagnostics, high-speed 256-event capture, 365-day exerciser, EnerVista
launchpad, USB interface for uploading and downloading setup parameters
• 4 programmable inputs and 4 outputs assignable to additional ATS features
• Full complement of programmable ATS control switches (AUTO/MAN, Preferred Source
selector, Commit/No Commit Xfer, Transition Mode Select (for Closed Transition switch
models).
Option B:
Option Package A plus:
• 10 customer programmable digital and 10 analog alarms
Graphical display
• Large metering values
• Wide viewing angle
Soft key navigation
• Graphical module control
Front port access
• USB for laptop connection
Integrated functionality
• Metering, control
• Event recorder
LED indication
• Time delay indication
• Alarm indication
• Transfer inhibit indication
• Source available & connected
indication
Ease of use
• Graphical interface
• Self-description
Mounting options
•DIN Rail
• Through door
889723A1.CDR
Front panel control
• Integrated device control
• Dedicated control keys
