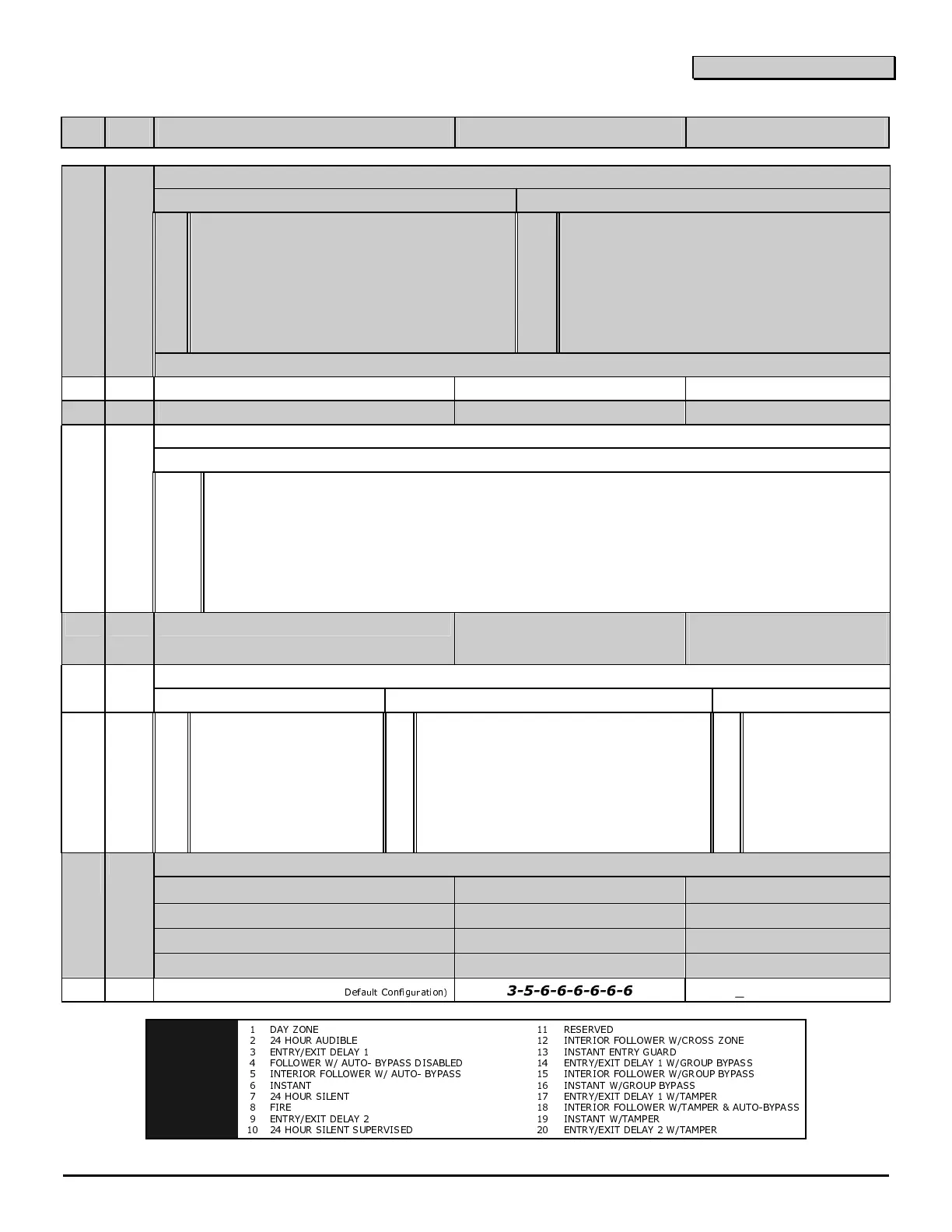

GE NetworX NX-4 User Manual

NX-4 Control
Page 27
LOC PG DESCRIPTION DEFAULT DATA
FORMAT OVERRIDE
Segment #1 (Circle Numbers To Program) Segment #2 (Circle Numbers To Program)
18 16
1
2
3
4
5
6
7
8
On = 1800hz transmit; Off = 1900hz
On = 2300hz handshake; Off = 1400hz.
On = cksum parity; Off = double round parity
On = 2 digit event code; Off = 1 digit code
Reserved.
Reserved.
On = 20 p.p.s.; Off = 10 or 40 p.p.s.
On = 10 p.p.s.; Off = 20 or 40 p.p.s.
1
2
3
4
5
6
7
8
On = pager format (no handshake required)
On = 1400/2300 handshake
Reserved
Reserved
On = Contact ID
On = SIA
On = Contact ID or 4+3
On = DTMF
Segments #3 & #4 RESERVED
19 16 DOWNLOAD ACCESS CODE 8-4-8-0-0-0-0-0 _ _ _ _ _ _ _ _
20 16 RINGS TO ANSWER DOWNLOAD 8 _
DOWNLOAD CONTROL
Segment #1 (Circle Numbers To Program)
21 16
1
2
3
4
5
6
7
8
Enables two call answering machine defeat
Reserved
Requires callback before downloading
Shutdown control panel
Lock out local programming
Lock out communicator programming
Lock out download section
Enables callback at autotest interval
22 16 CALLBACK PHONE NUMBER
14-14-14-14-14-14-14-14-14-
14-14-14-14-14-14-14-14-14-
14-14
__ __ __ __ __ __ __ __ __
__ __ __ __ __ __ __ __ __
__ __
FEATURE SELECTION 23 16
Segment #1 Segment #2 Segment #3
1
2
3
4
5
6
7
8
Quick Arm
Re-Exit
Auto Bypass
Silent Panic
Audible Panic
Auxiliary 1
Auxiliary 2
Multi Keypress Tamper
1
2
3
4
5
6
7
8
LED extinguish enable
Require user code for bypassing zones
Bypass sounder alert
AC power/low battery sounder alert
Enables bypass toggle
Enables silent auto arm
Enables automatic instant
Reserved
1
2
3
4
5
6
7
8
Open/Close
Bypass
Restore
Trouble
Tamper
Cancel
Recent Closing
Exit Error
ENTRY/EXIT TIMERS
Segment #1 (Entry Time #1) 30
Segment #2 (Exit Time #1) 60
Segment #3 (Entry Time #2) 30
24 17
Segment #4 (Exit Time #2) 60
25 17 ZONES 1-8, ZONE TYPES (
Default Configuration) 3-5-6-6-6-6-6-6 _ _ _ _ _ _ _ _
Standard
(Default)
Zone
Types
Pg 25
1
2
3
4
5
6
7
8
9
10
DAY ZONE
24 HOUR AUDIBLE
ENTRY/EXIT DELAY 1
FOLLOWER W/ AUTO- BYPASS DISABLED
INTERIOR FOLLOWER W/ AUTO- BYPASS
INSTANT
24 HOUR SILENT
FIRE
ENTRY/EXIT DELAY 2
24 HOUR SILENT SUPERVISED
11
12
13
14
15
16
17
18
19
20
RESERVED
INTERIOR FOLLOWER W/CROSS ZONE
INSTANT ENTRY GUARD
ENTRY/EXIT DELAY 1 W/GROUP BYPASS
INTERIOR FOLLOWER W/GROUP BYPASS
INSTANT W/GROUP BYPASS
ENTRY/EXIT DELAY 1 W/TAMPER
INTERIOR FOLLOWER W/TAMPER & AUTO-BYPASS
INSTANT W/TAMPER
ENTRY/EXIT DELAY 2 W/TAMPER

GE NetworX NX-4 Specifications

Power

operating power	16.5 VAC 25, 40, or 50 VA Transformer
auxiliary power with 25 VA transformer	12 VDC Regulated 500 mA
auxiliary power with 40 or 50 VA transformer	12 VDC Regulated 1 AMP

Operating Environment

loop resistance	300 Ohms Maximum
loop response	500mS
operating temperature	32 to 120 degrees F

Weight and Dimensions

led keypad dimensions	6.4" Wide, 4.0" High, 1.1" Deep
nx-148e lcd keypad dimensions	6.4" Wide, 5.3" High, 1.0" Deep
metal enclosure dimension	9.25" Wide, 8.25" High, 3.50" Deep
