GE HEALTHCARE OPTIMA XR200AMX/XR220AMX
D
IRECTION 5336112-1EN, REVISION 3PRE-INSTALLATION MANUAL
Chapter 1 General requirements Page 23
1.4.2.2 International shipments
1.4.3 Door size requirements
Minimum door sizes also apply to hallways and elevators.
1.4.3.1 System in crate
To accommodate the system in a shipping crate, the minimum door width is 76 cm (30 in), and
the minimum door height is 211 cm (83 in).
1.4.3.2 System in normal use (not in crate)
To accommodate the system during normal use, the minimum door width is 61 cm (24 in), and the
minimum door height is 193 cm (76 in). See the room diagram in Figure 1-6.

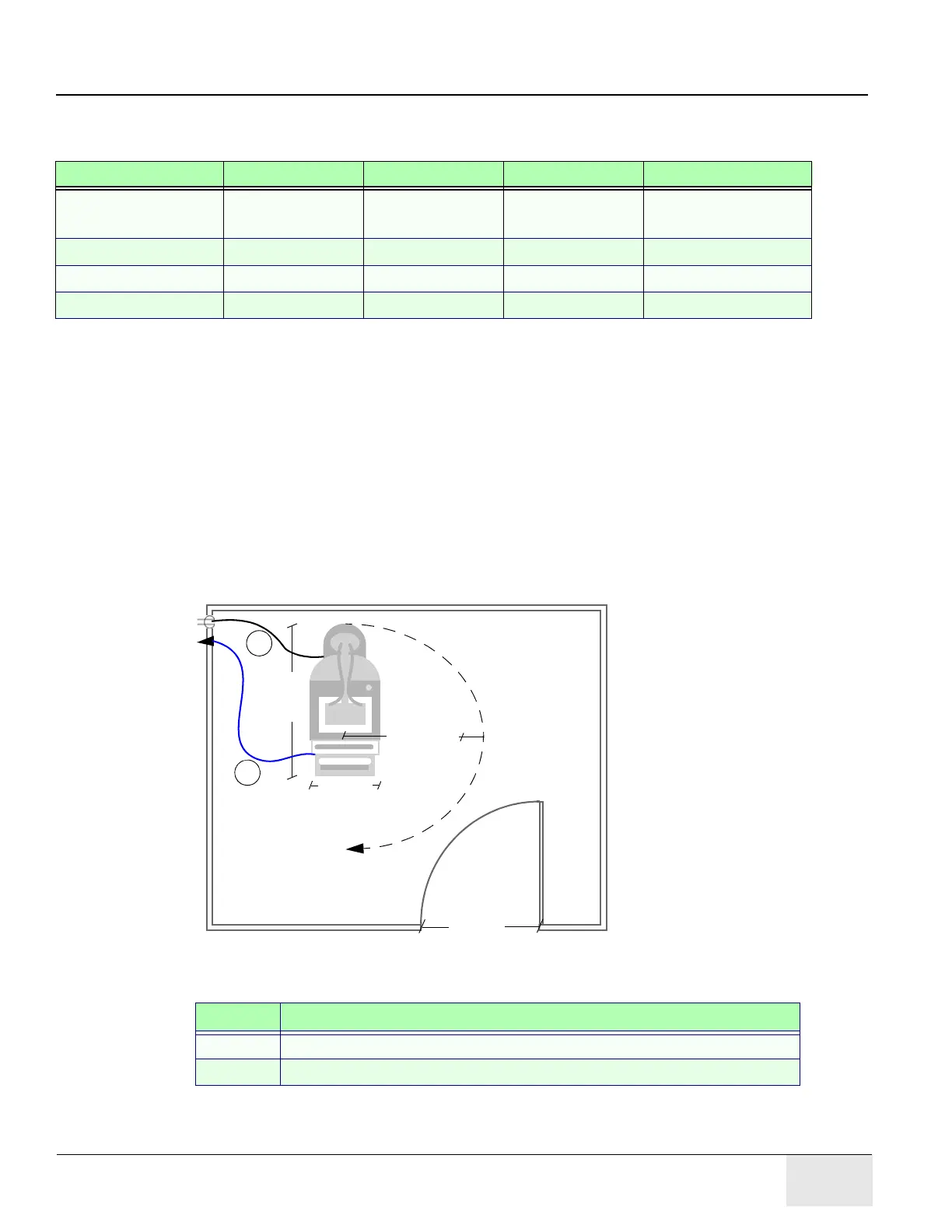

Figure 1-6 System room diagram
Component Length Width Height Weight
Optima XR200amx /
Optima XR220amx
124.5 cm (49 in) 76.2 cm (30 in) 210.9 cm (83 in) 492 kg (1084 lb)
FlashPad
TM
detector
119.4 cm (47 in) 78.8 cm (31 in) 91.5 cm (36 in) 22.7 kg (50 lb)
DAP 250 mm (9.8 in) 450 mm (17.7 in) 120 mm (4.7 in) <3 kg (<6.6 lbs)
Barcode Reader 250 mm (9.8 in) 450 mm (17.7 in) 120 mm (4.7 in) <3 kg (<6.6 lbs)
ITEM DESCRIPTION
1 Power cord, maximum extended length is 2.75 m (9 ft)
2 Ethernet cable
114.8 cm
(45.2 in)
91.5 cm
(36 in)
105 cm
(42 in)
55.9 cm
(22 in)
2
1
