Name: GE P54B
Brand: GE
Rating: 5 (1 reviews)

To Next Page

To Previous Page

Drg

No:

Issue: Revision:

Date:

Name:

Chkd:

DO NOT SCALE

CAD DATA 1:1 DIMENSIONS: mm

Title:

Substation Automation Solutions

ALSTOM GRID UK LTD

(STAFFORD)

Sht:

30/11/2010 W.LINTERN

DRAWING OUTLINE UPDATED. CID BLIN-8BHLDT

10Px4001

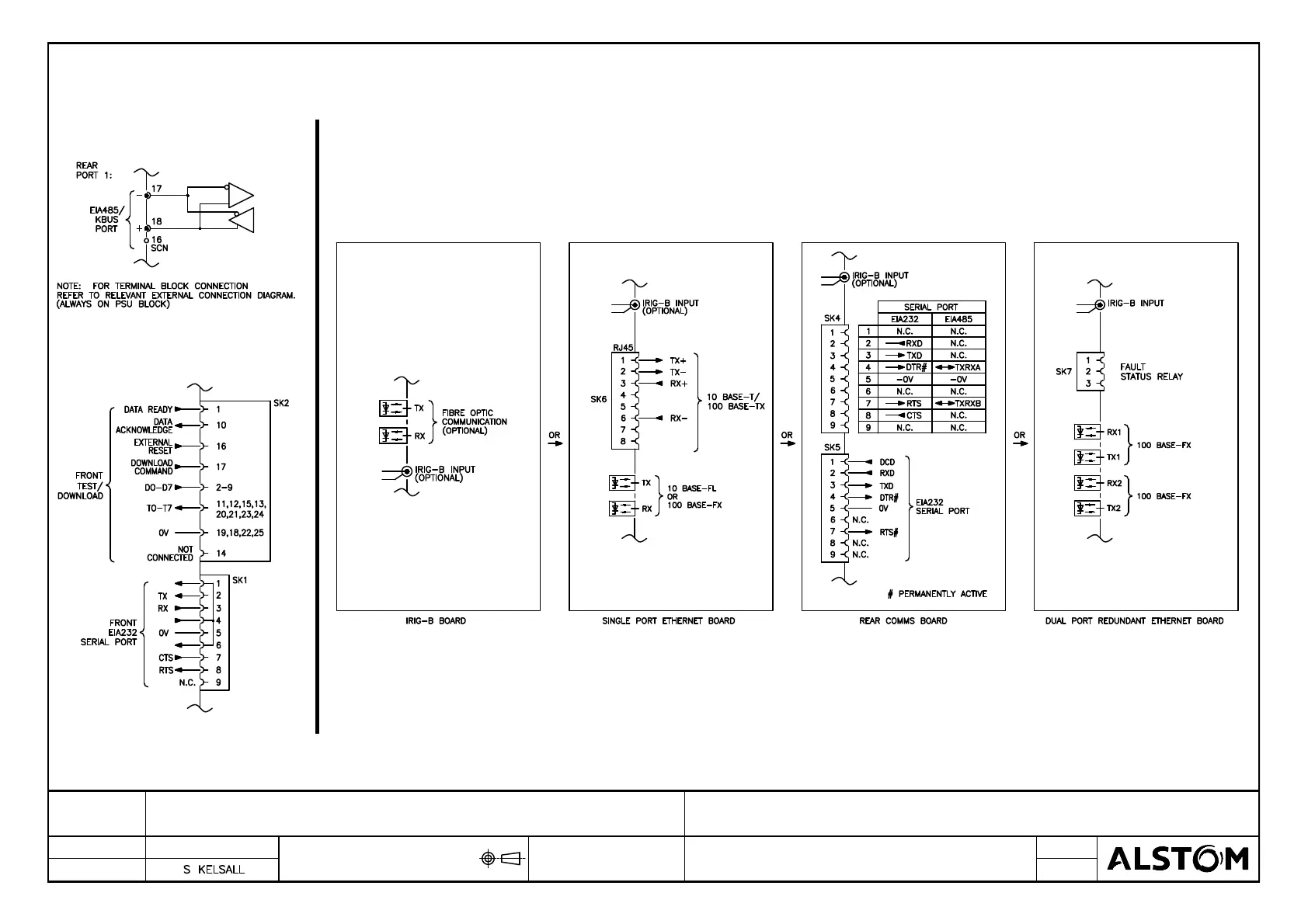

EXTERNAL CONNECTION DIAGRAM: COMMS OPTIONS

MICOM Px40 PLATFORM

Default Chapter3
