GE PDS22xxP series - Fresh Food and Freezer Thermistors

– 12 –

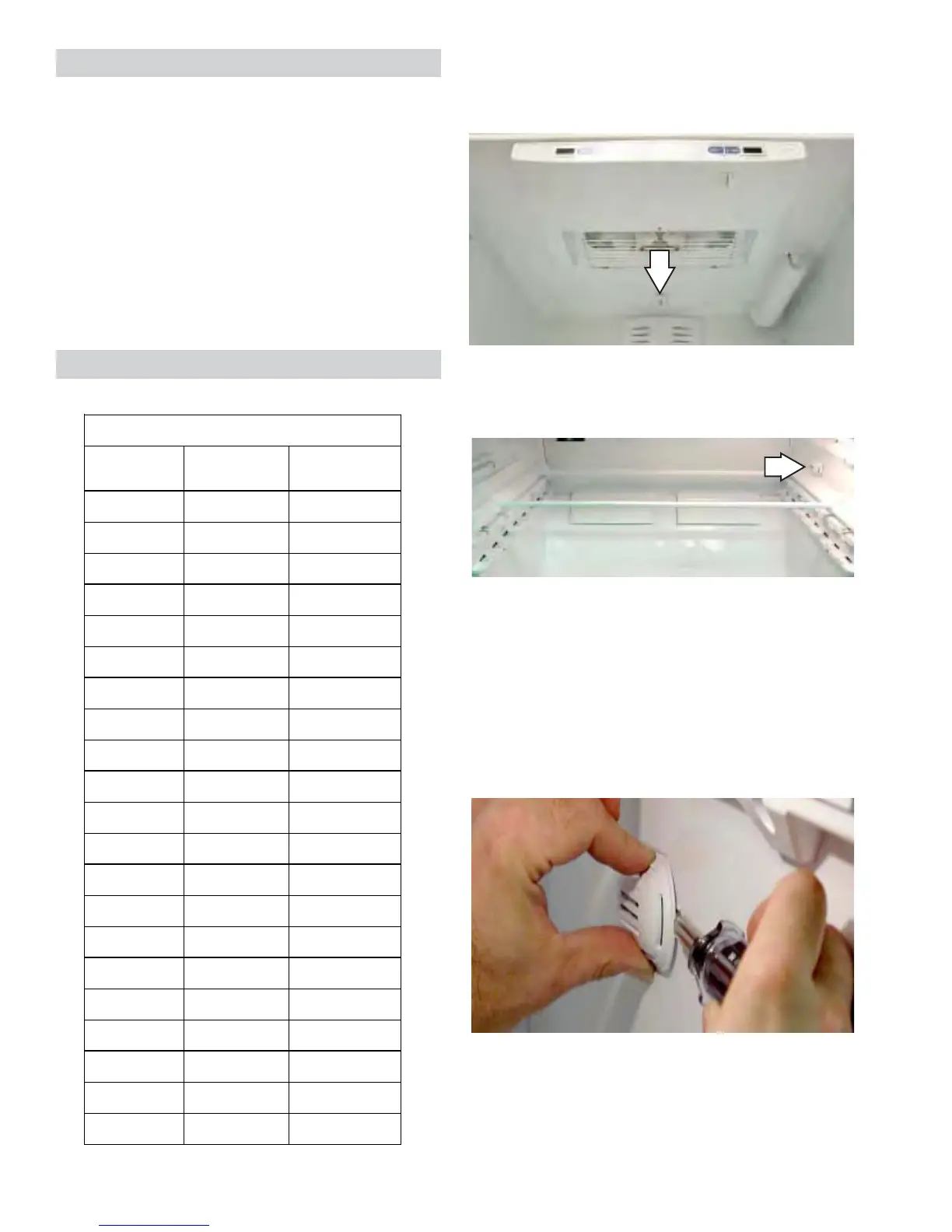

To remove the thermistor cover, insert a flat blade
screwdriver under the front of the cover and gently
lift the cover. Squeeze and lift the cover from the
bottom until it releases from the compartment wall.
The freezer thermistor is located on the rear of the
right hand wall in the freezer section.
Fresh Food and Freezer Thermistors
Icemaker Ready Models
The accessory icemaker can be purchased
through parts, part # IM6 or as a sales accessory,
part # IM4A through a dealer. The icemaker must
be installed with the fill tube shipped with the
refrigerator. The slot in the fill tube must be on top
of the tube.
The water fill tube is packaged with the use and
care manual in a plastic bag in the vegetable
drawer. The fill tube part number is WR02X11712.
Note: Fresh food and freezer thermistors are
removed in the same manner.
The fresh food thermistor is located on the ceiling
of the fresh food compartment behind the light
assembly.
Thermistor Values
Temperature
Degrees (F)
Resistance in
Kilo-Ohms
Temperature
Degrees (C)
-40 166.8 kΩ -40
-31 120.5 kΩ -35
-22 88 kΩ -30
-13 65 kΩ -25
-4 48.4 kΩ -20
5 36.4 kΩ -15
14 27.6 kΩ -10
23 21 kΩ -5
32 16.3 kΩ 0
41 12.7 kΩ 5
50 10 kΩ 10
59 7.8 kΩ 15
68 6.2 kΩ 20
77 5 kΩ 25
86 4 kΩ 30
95 3.2 kΩ 35
104 2.6 kΩ 40
113 2.2 kΩ 45
122 1.8 kΩ 50
55 1.5 kΩ -40
60 1.2 kΩ -35
