– 13 –
Note: Some of the foam insulation may need to be
removed to expose the thermistor and wire.
Note: The thermistor must be inside the
thermistor cover but is not required to be inserted
back into the insulation or inside the cabinet frame.
Thermistor

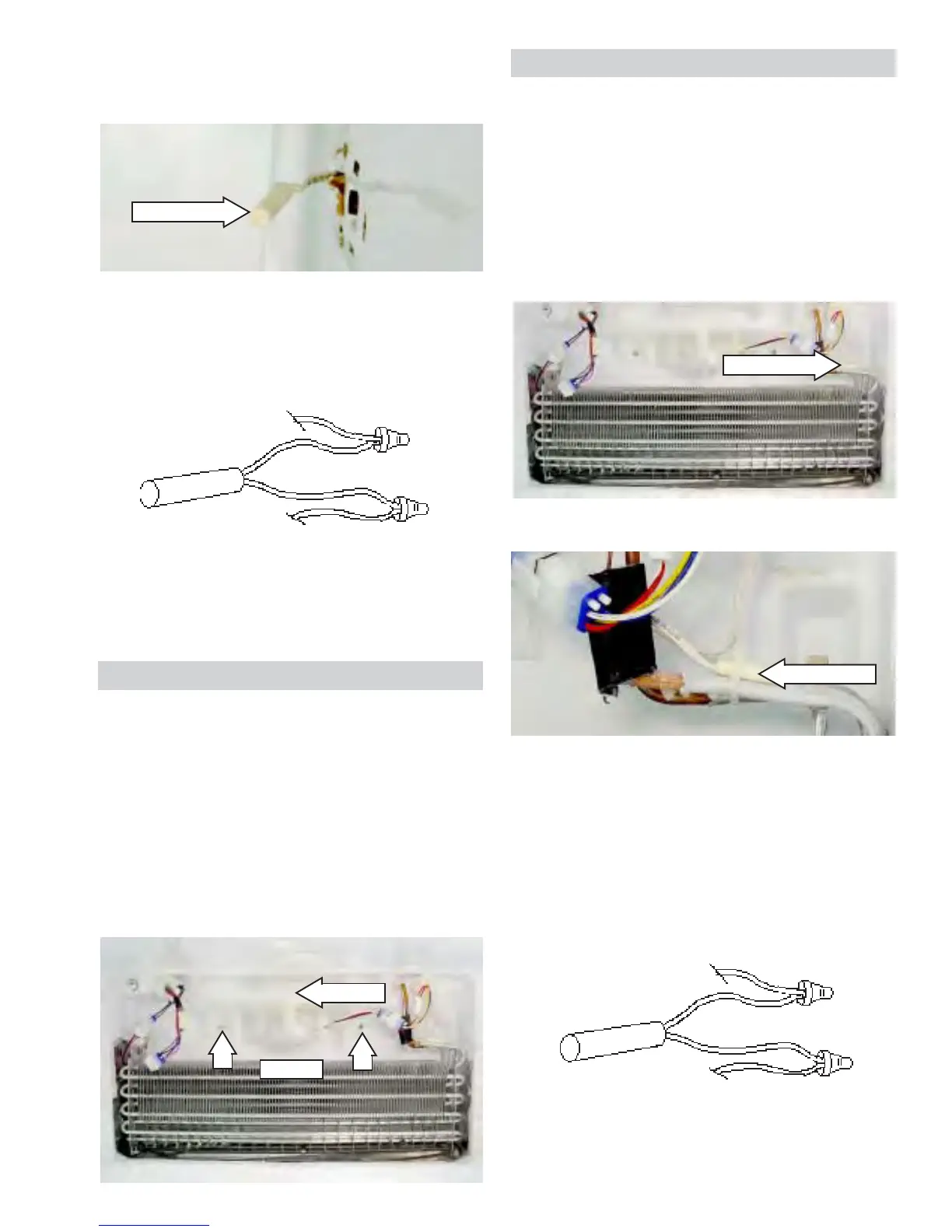

When replacing the thermistor, cut the thermistor
wires and splice the new thermistor using bell
connectors as shown. Always use RTV102
silicone sealant to seal the end of the connector
from moisture.
Evaporator Fan
The evaporator fan is located above the evaporator
behind the rear panel of the freezer compartment.
The evaporator fan is held in place by 2 screws.
To access the fan, remove the drawers, shelves,
and icemaker (if installed) from the freezer
compartment. Remove the back panel.
The fan, motor, and mount come out as one unit.
Evaporator Thermistor
The evaporator thermistor is located on top of the
evaporator behind the rear panel of the freezer
compartment. The thermistor is held in place by a
tie strap.
To access the thermistor, remove the drawers,
shelves, and icemaker (if installed) from the
freezer compartment. Remove the back panel.
When replacing the thermistor, cut the thermistor
wires and splice the new thermistor using bell
connectors as shown. Always use RTV102
silicone sealant to seal the end of the connector
from moisture. Use a new tie strap to secure the
thermistor to the evaporator tubing.
Thermistor
Thermistor
Fan
Screws
Shown with Back Panel Removed
Shown with Back Panel Removed
