– 32 –
Icemaker
The following components must be removed in the
appropriate order to remove the icemaker:
Unplug the refrigerator.1.
Open the freezer door or remove the freezer 2.
drawer. (See Removing the Freezer Drawer.)
Remove the ice bucket and freezer baskets. (See 3.
Control Features.)
Note: The top of the vertical divider on some models
is inserted in a molded recess in the freezer ceiling.
The bottom of the divider has a front tab that is
captured in a notch in the support rail.

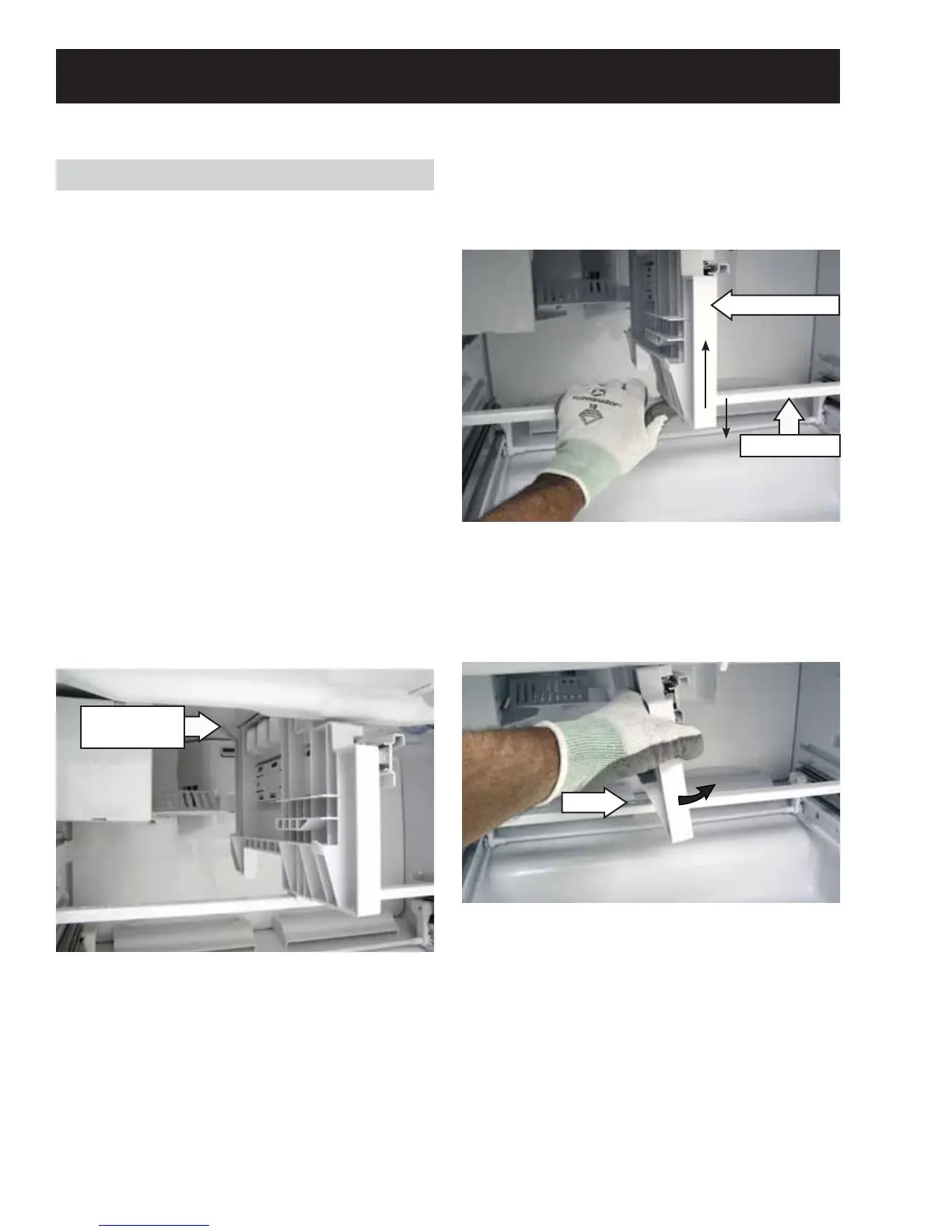

4. Remove the vertical divider from the support
rails:
a. Remove the two 1/4-in. hex-head screws
(1 on each side) from the top rear of the
vertical divider.
(Continued next page)
b. Release the front of the vertical divider by
pressing down on the support rail while
pressuring the front of the divider up.
c. Carefully rotate the divider slightly
counterclockwise to clear the tab from the
notch in the rail.
Note: When installing the vertical divider, position
the top of the divider into the recess in the freezer
ceiling before positioning the bottom over the notch
in the support rail.
Vertical Divider
Screw location
(1 of 2)
Support Rail
Notch
Components
