Control Housing (Model GBSC0)
The control housing is located at the top of the
refrigerator compartment. (See Component Locator
Views.) The control housing contains the main
control board, refrigerator compartment thermistor,
air control, light, and light thermostat.
To remove the control housing:
Remove the two recessed Phillips-head screws 1.
that attach the control housing to the ceiling of
the refrigerator compartment.
2. Lower the housing and disconnect the wire
harness.
Note: When installing
the control housing,
ensure the housing leg is
placed in the top slot in
the center track.
Screw Location
Disconnect
Slot
Leg
Air Control (Model GBSC0)
An air control is used to direct airfl ow to the
refrigerator and freezer compartments. It consists of
a damper and damper shaft. The damper is located
on the back of the control housing and the damper
shaft is attached to the inside of the control housing.
Airfl ow can be adjusted by the freezer temperature
control knob located on the front of the housing.
To remove the air control:
Remove the control housing. (See 1. Control
Housing.)
Place the control housing bottom-side down on 2.
a protective surface.

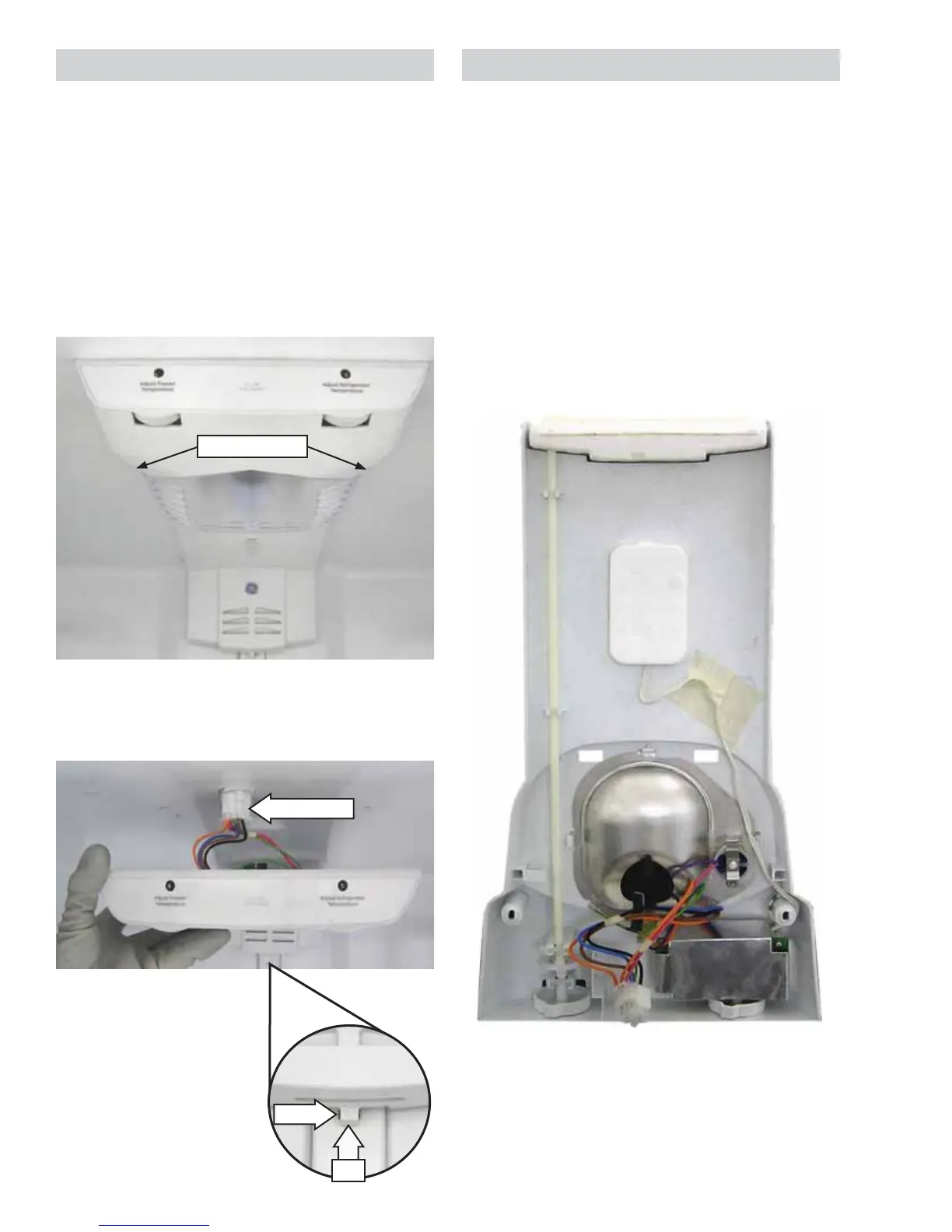

Control Housing Removed
(Continued next page)
