– 33 –

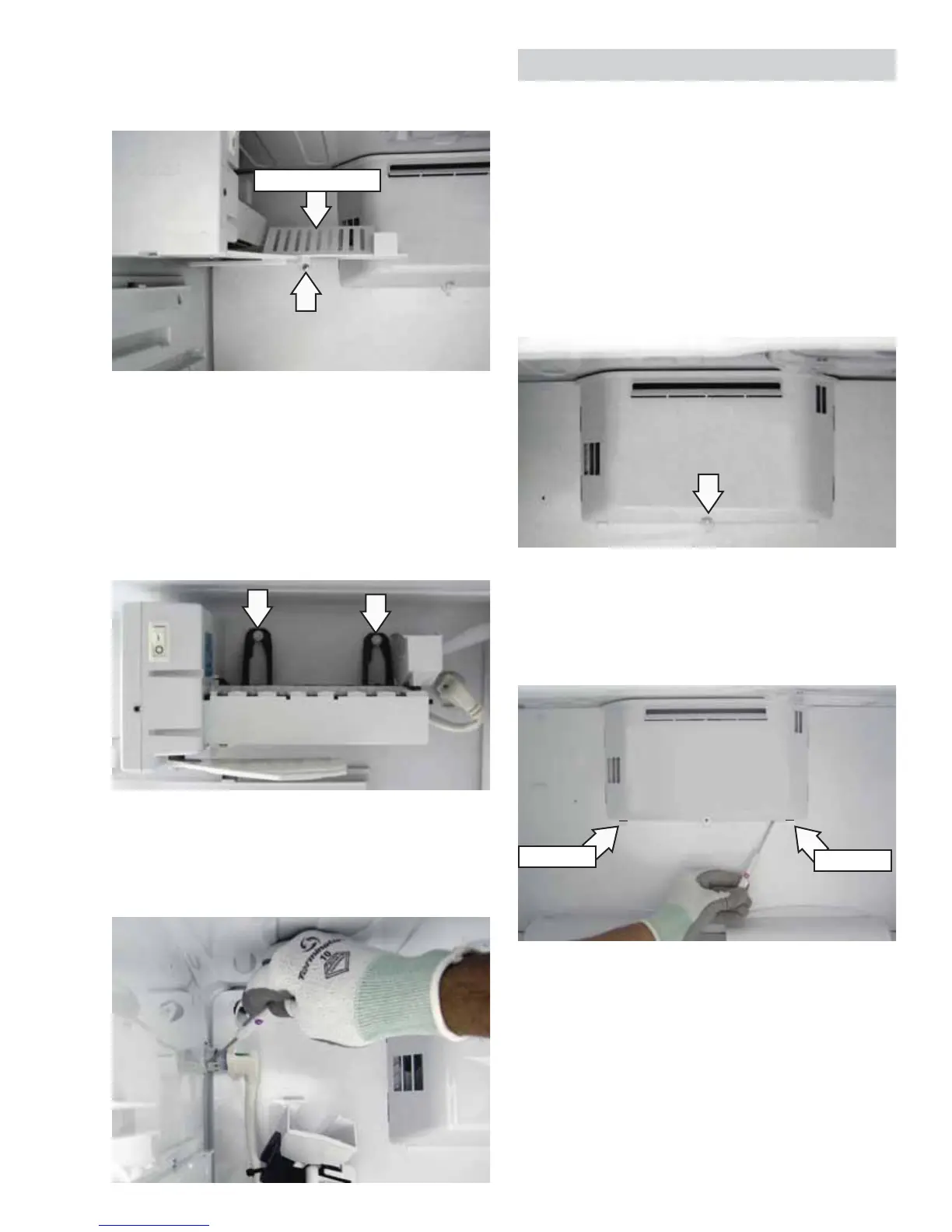

5. Remove the Phillips-head screw and the ice
drawer cover from the evaporator cover (model
PFSF2).
Note: When installing the ice drawer cover, engage
the slot on the rear of the ice drawer cover with the
tab on the evaporator cover.
6. Loosen the two 1/4-in. hex-head screws, then
lift and remove the icemaker from the mounting
bracket.
7. Using a small fl at blade screwdriver, expand
the 2 clips and disconnect the icemaker wire
harness from the cabinet.
Ice Drawer Cover
Evaporator
The following components must be removed in the
appropriate order to access the evaporator:
Remove the icemaker, if equipped. (See 1.
Icemaker.)
Note: The evaporator fan cover is attached to the
evaporator cover with a hex-head screw and 4 tabs
that engage slots in the evaporator cover.
2. Remove the 1/4-in. hex-head screw from the fan
cover.
3. Using a small fl at blade screwdriver, carefully
pry the bottom corners of the cover out and pull
down the cover past the 2 protrusions in the
evaporator cover.
4. Slide the cover toward the right, then pull the
cover out from the slots in the evaporator cover.
Note: The following steps, 5 through 8 or 9, may
not apply to some models. Proceed to step 9 or 10
where applicable.
5. Extend both drawer rails to the fully open
position.
Protrusion
Protrusion
(Continued next page)
To Next Page
