– 38 –

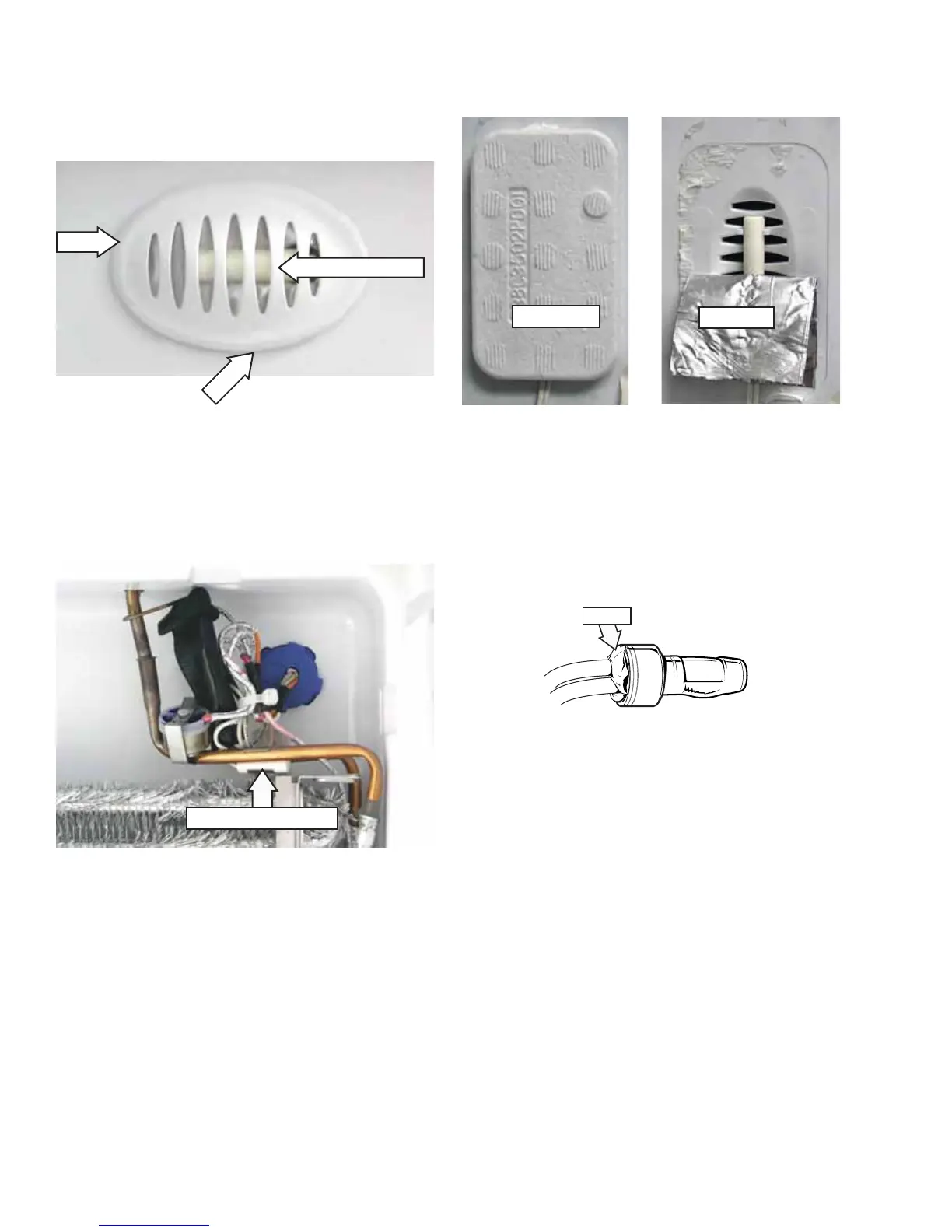

To remove the thermistor cover, insert a fl at-blade
screwdriver under the front of the cover and gently
lift the bottom edge until it releases from the
compartment wall.
Insert
Lift
Thermistor Cover
Evaporator Thermistor
The evaporator thermistor is clipped to the suction
tube line of the evaporator. See Evaporator for
accessing instructions.
Evaporator Thermistor
Fresh Food Thermistor Model GBSC0
The fresh food thermistor is located in the control
housing in the fresh food compartment. It is
necessary to remove the control housing to access
the fresh food thermistor. (See Control Housing (Model
GBSC0).).
Replacement
Should a thermistor require replacement, use
plastic bell connectors (part # WR01X10466). Fill
each connector with RTV102 silicone then splice a
new thermistor into the harness as shown in the
illustration.
RTV102
To remove the thermistor, pull off the foam cover
and foil shield from the inside of the control housing.
Foam Cover
Foil Shield
To Next Page
