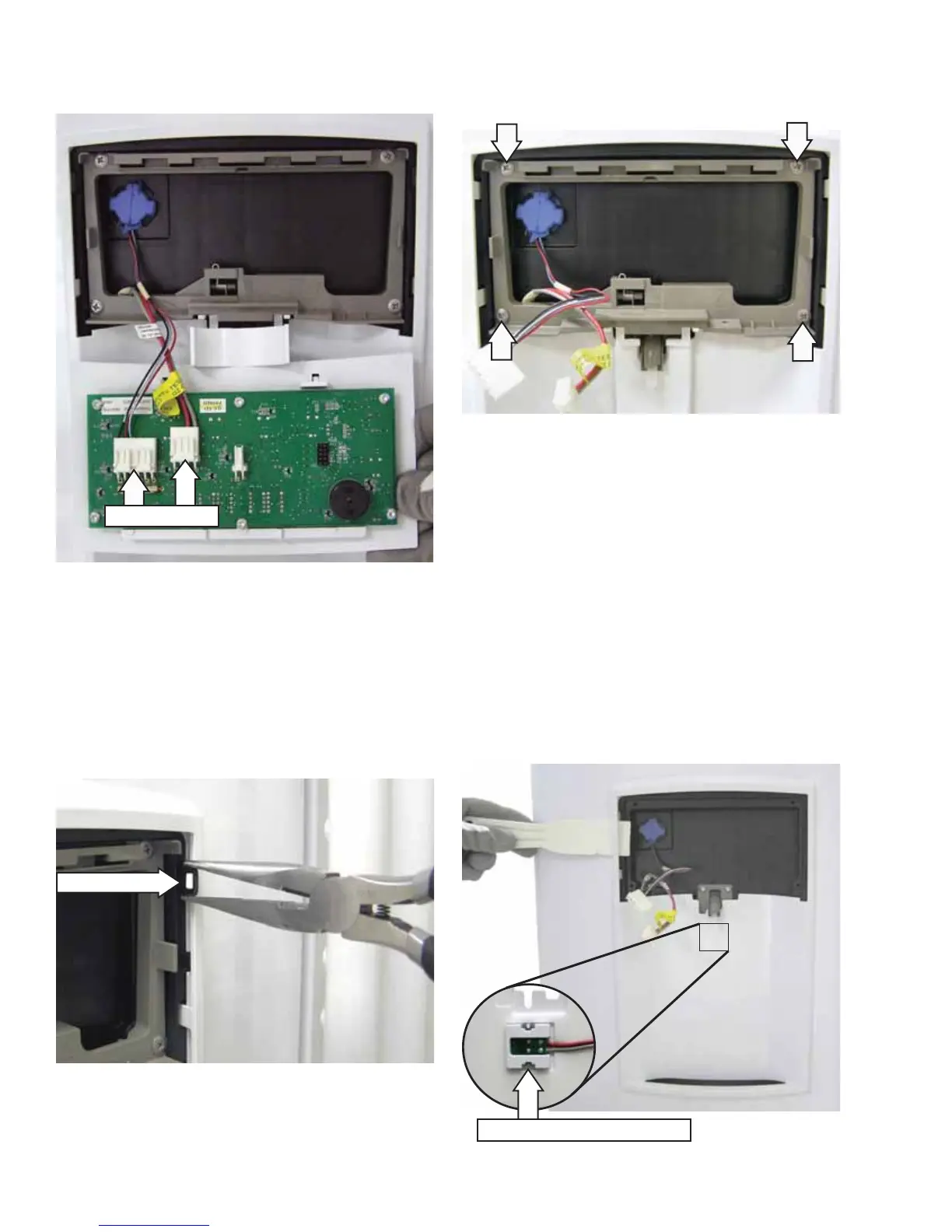

Carefully lower the interface and disconnect the 2.
2 wire harnesses.
Note: There are 2 plastic wedges (1 on each side),
that help hold the top of the trim fl ush against the
door panel. If the wedges are not installed, the trim
will fi t loosely.
3. Using a pair of long-nose pliers, pull out the 2
plastic wedges.
Wire Harnesses
Wedge (1 of 2)
5. Lift and remove the spill shelf from the bottom
of the recess.
Note: The dispenser trim is held to the dispenser
recess by 5 retaining tabs along each side and 2 at
the top.
6. Using your hands or a plastic putty knife,
carefully lift or pry the dispenser trim away from
the dispenser recess.
Note: The paddle switch is permanently attached to
the back of the dispenser trim. The trim and paddle
switch are replaced as an assembly.
4. Remove the 4 Phillips-head screws and the
dispenser shield from the dispenser recess.
Paddle Switch (rear view shown)
