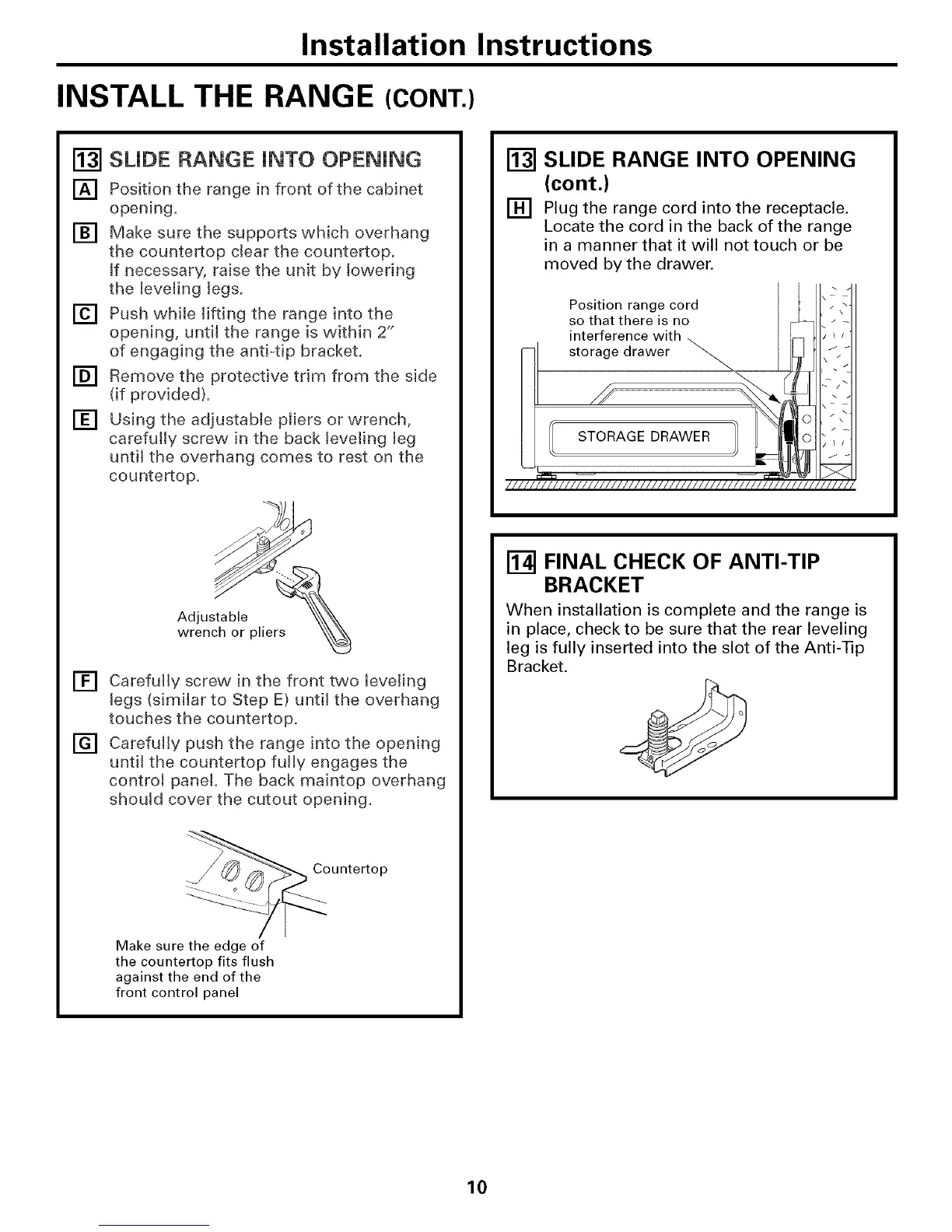

Installation Instructions
INSTALL THE RANGE (CONT.)
[]
[]
SUDE RANGE iNTO OPENING
Position the range in front of the cabinet
opening.
[] Make sure the supports which overhang
the countertop clear the countertop.
tf necessary, raise the unit by lowering
the teveting legs.
[] Push while lifting the range into the
opening, until the range is within 2"
of engaging the anti-tip bracket.
[] Remove the protective trim from the side
(if provided).
[] Using the adjustaMe pliers or wrench,
carefulJy screw in the back teveling leg
until the overhang comes to rest on the
countertop.
Adjustable
wrench or pliers %
[] Carefully screw in the front two leveling
legs (similar to Step E) until the overhang
touches the countertop.
[] Carefully push the range into the opening
until the countertop fully engages the
control panel. The back maintop overhang
should cover the cutout opening.
Counte_op
Make sure the edge of
the countertop fits flush
against the end of the
front control panel
r_ SLIDE RANGE INTO OPENING
(cont.)
[] Plug the range cord into the receptacle.
Locate the cord in the back of the range
in a manner that it will not touch or be
moved by the drawer.
Position range cord
so that there is no
interference with
_] storage drawer _.
I St_W_
\
/I/
j _
\ //
\
i \
\
/11
j _
/////
r_-z-4]FINAL CHECK OF ANTI-TIP
BRACKET
When installation is complete and the range is
in place, check to be sure that the rear leveling
leg is fully inserted into the slot of the Anti-Tip
Bracket.
10
