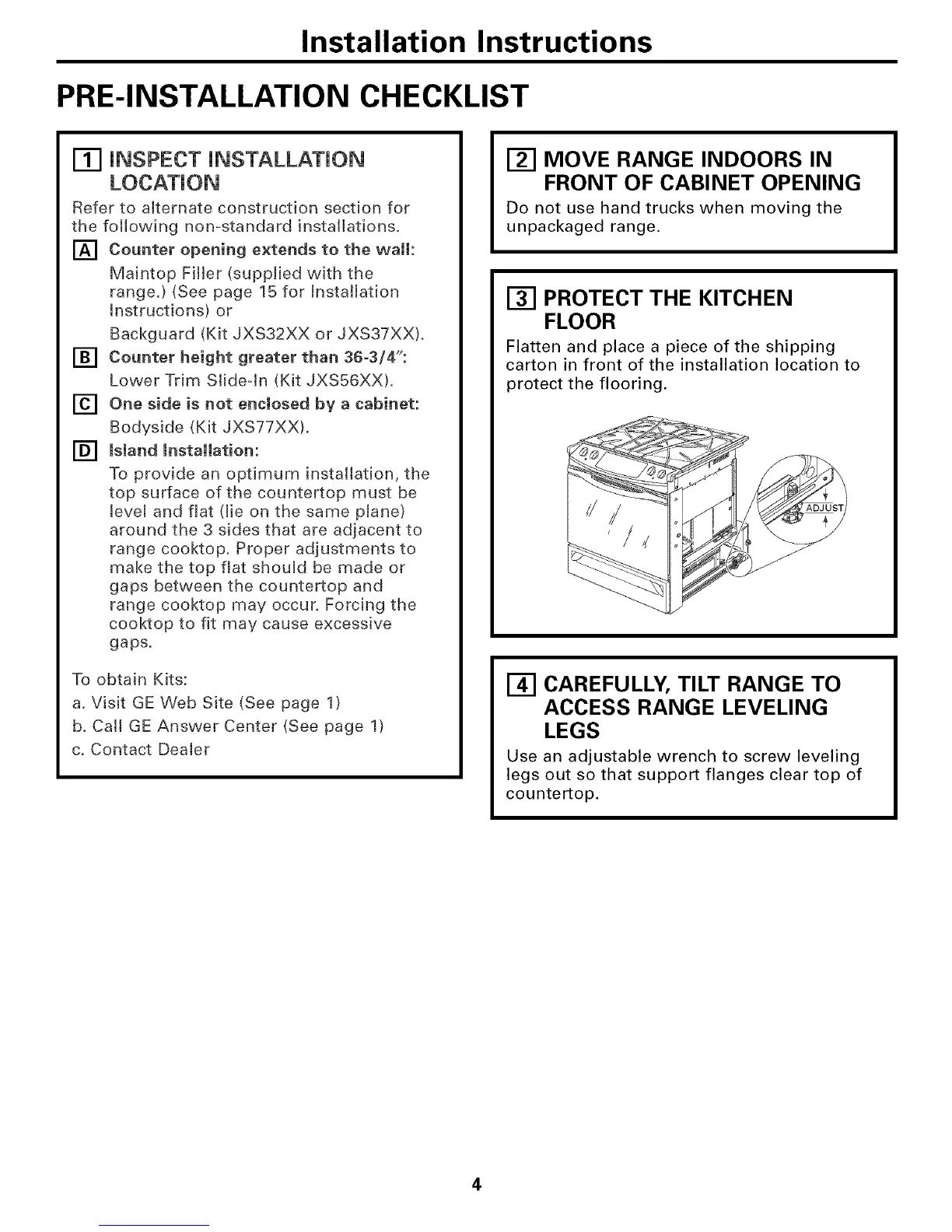

Installation Instructions
PRE-INSTALLATION CHECKLIST
[_ iNSPECT iNSTALLATiON
Refer to aJternate construction section for
the following non=standard installations.
[] Counter opening extends to the wall:
Maintop Filler (suppJied with the
range.) (See page 15 for Installation
Instructions) or
Backguard (Kit JXS32XX or JXS37XX).
[] Counter height greater than 36-3/4":
Lower Trim Slideqn (Kit JXS56XX).
[] One side is not enctosed by a cabinet:
Bodyside (Kit JXS77XX).
[] rostand mnstallation:
To provide an optimum installation, the
top surface of the countertop must be
tevet and flat die on the same phne)
around the 3 sides that are adjacent to
range cooktop. Proper adjustments to
make the top fiat should be made or
gaps between the countertop and
range cooktop may occur. Forcing the
cooktop to fit may cause excessive
gaps.
To obtain Kits:
a. Visit GE Web Site (See page 1)
b. Call GE Answer Center (See page 1)
c. Contact Dealer
_-I MOVE RANGE INDOORS IN
FRONT OF CABINET OPENING
Do not use hand trucks when moving the
unpackaged range.
[] PROTECT THE KITCHEN
FLOOR
Flatten and place a piece of the shipping
carton in front of the installation location to
protect the flooring.
[] CAREFULLY, TILT RANGE TO
ACCESS RANGE LEVELING
LEGS
Use an adjustable wrench to screw leveling
legs out so that support flanges clear top of
countertop.
4
