GE PHP900 Installation Instructions

5
Installation Instructions
INSTALLING OPTION—FOR GE MONOGRAM
MONOGRAM INDUCTION COOKTOP
AND MONOGRAM DOWNDRAFT VENT
COMBINATION INSTALLATION ONLY.
The installation of the downdraft vent with
this cooktop requires careful consideration.
Both the cooktop and the vent must be installed
according to each specific installation instruction.
BASE CABINET REQUIREMENTS
The combined installation will fit in a standard
24″ deep base cabinet. Use a 30″ or wider base
cabinet.
– The vent housing, blower and ductwork will
occupy the base cabinet.
COOKTOP REQUIREMENTS
The countertop must have a deep flat surface to
accommodate the cooktop and vent. Countertops
with a rolled front edge and backsplash will not
provide the flat surface area required.

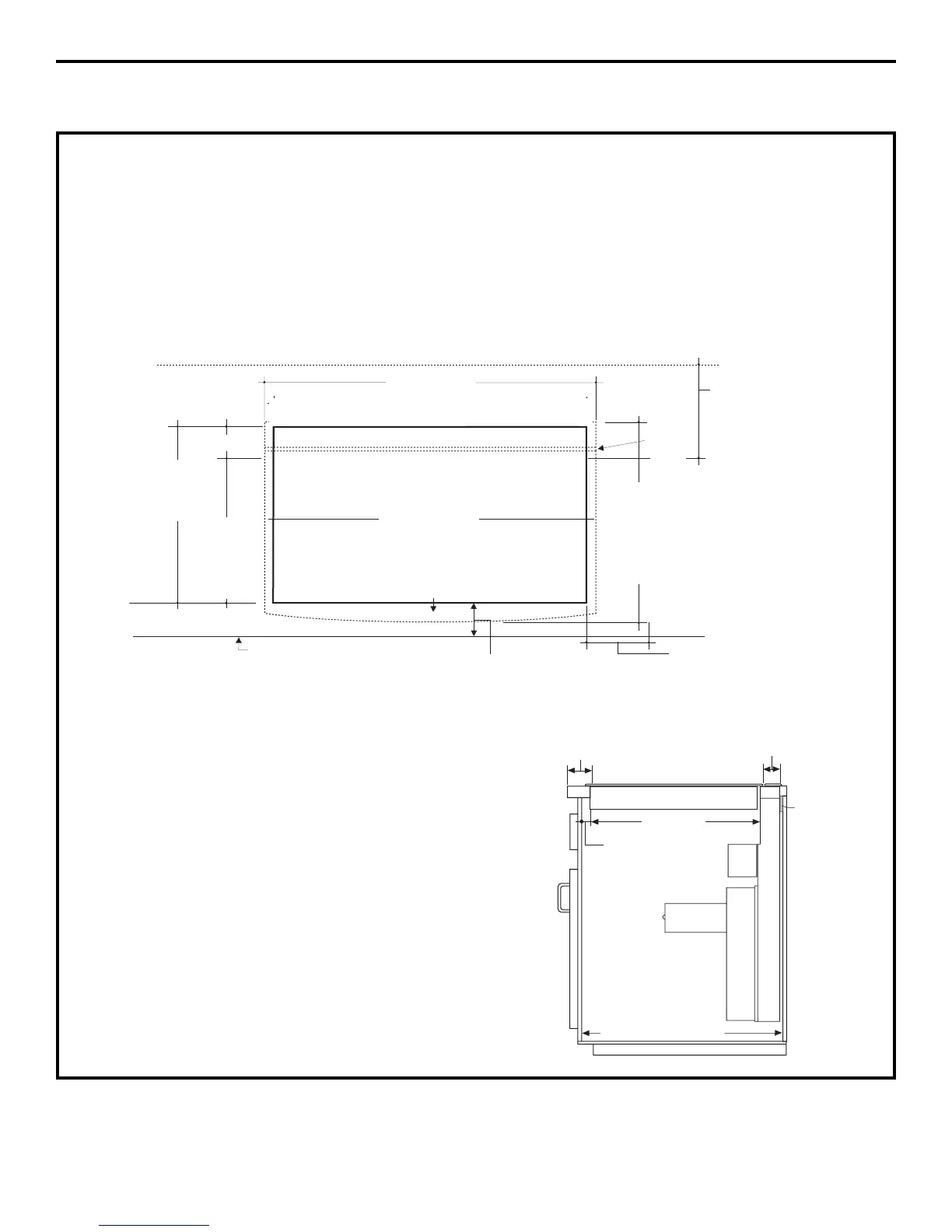

• Review the illustration to determine the countertop
surface requirements.
– All cutout clearances for this installation must
be observed.
22-3/8″
cutout
depth
19-5/8″
cooktop
cutout
depth
2-3/4″
1/8″
gap
1-3/4″ min. cooktop
cutout to rear vertical
combustible surface
23-1/2″ SS
23-3/8″ Black
total flat surface
required
at center
1-3/4″ min. cutout to
wall, both sides
2-1/2″ min. clearance
to cutout
Front edge of countertop
1-1/32″ cooktop overlap at center
28-1/2″ cooktop and vent
area cutout
29-7/8″ SS
29-3/4″ Black
3/4"
22-3/4" Inside
22" to Support Rail
2-1/2" to
Cutout
1-7/8"
3/4"
Thick
Support
Rail
20-1/16"
Vent
″
20-3/8″
″
″
″
″
″
