Installation Instructions
INSTALLING OPTIONS
COOKTOP INSTALLATION OVER A
GE OR GE MONOGRAM SINGLE OVEN
These cooktops may be installed over a single
oven. Both the cooktop and the oven must be
installed according to each specific installation
instruction.
– Allow 4″ Min. clearance from the top of the
countertop to the top of the oven cutout.
Use a 30″ or wider base cabinet.
• For best appearance, the cooktop should be
centered over the oven.
• The baffle on the underside of the cooktop is not
necessary for this combination installation. If the
baffle is attached, remove it.
• This cooktop is only approved to be installed over
the specific models listed on the label of this unit.
POWER SUPPLY
The oven requires a separate, properly grounded
20 Amp, 3-wire 208 or 240 volt, 60 Hz power supply.
The cooktop requires a separate 40 Amp, 3-wire,
208 or 240 volt, 60 Hz power supply.

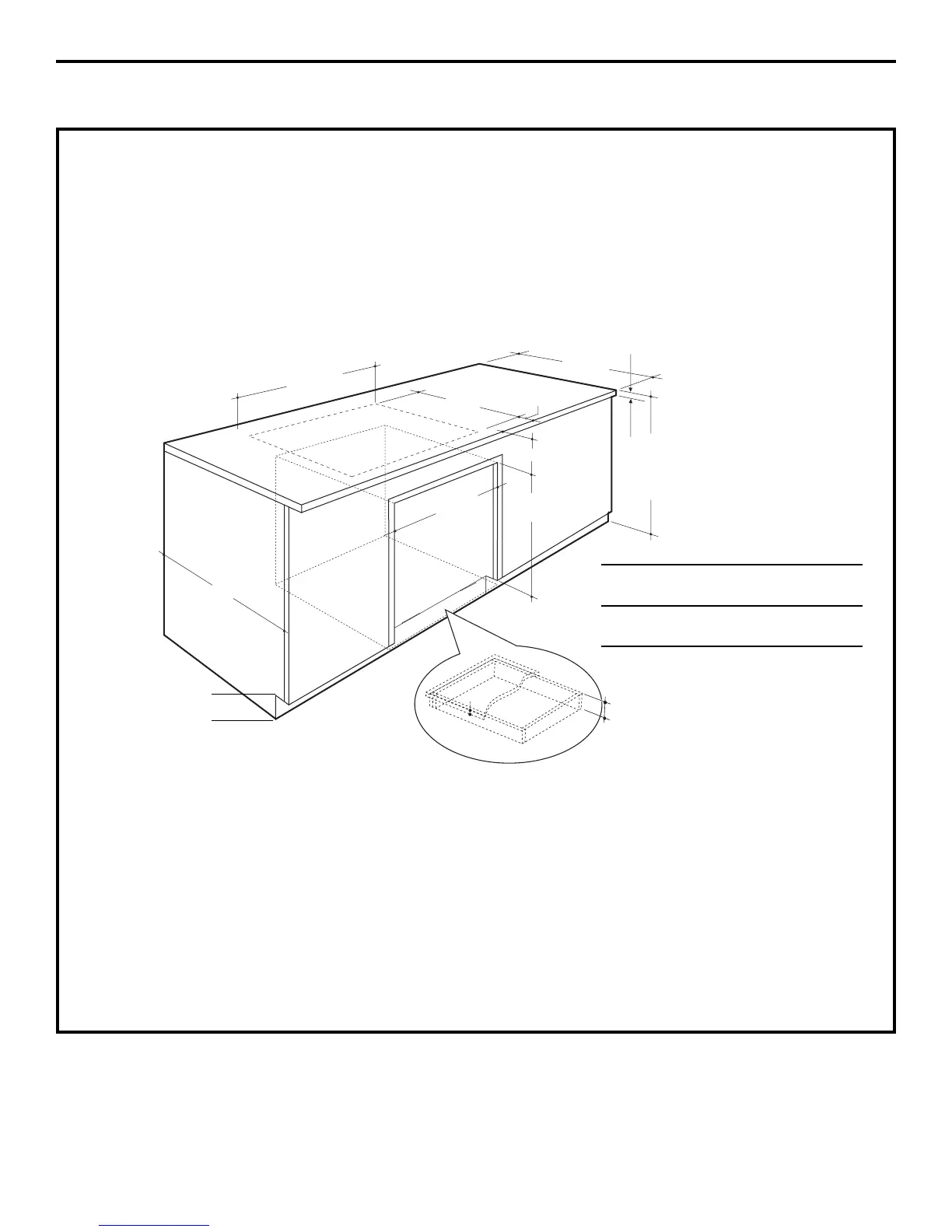

23-1/2″ min.
4″ high
toekick
Cooktop
28-1/2″
19-5/8″
2-1/2″ min.
1-1/2″ cabinet top
4″ min.
36″
countertop
height
B
A
25″
Ovens Dim. A Dim. B
30″ 28-1/2″ min. 27-1/4″ min.
28-5/8″ max. 27-5/16″ max.
27″ 25″ min. 27-5/8″ min.
25-1/4″ max. 28-1/8″ max.
3/4″ support
platform
required
Must support 200 lbs.
Must match
toekick height
