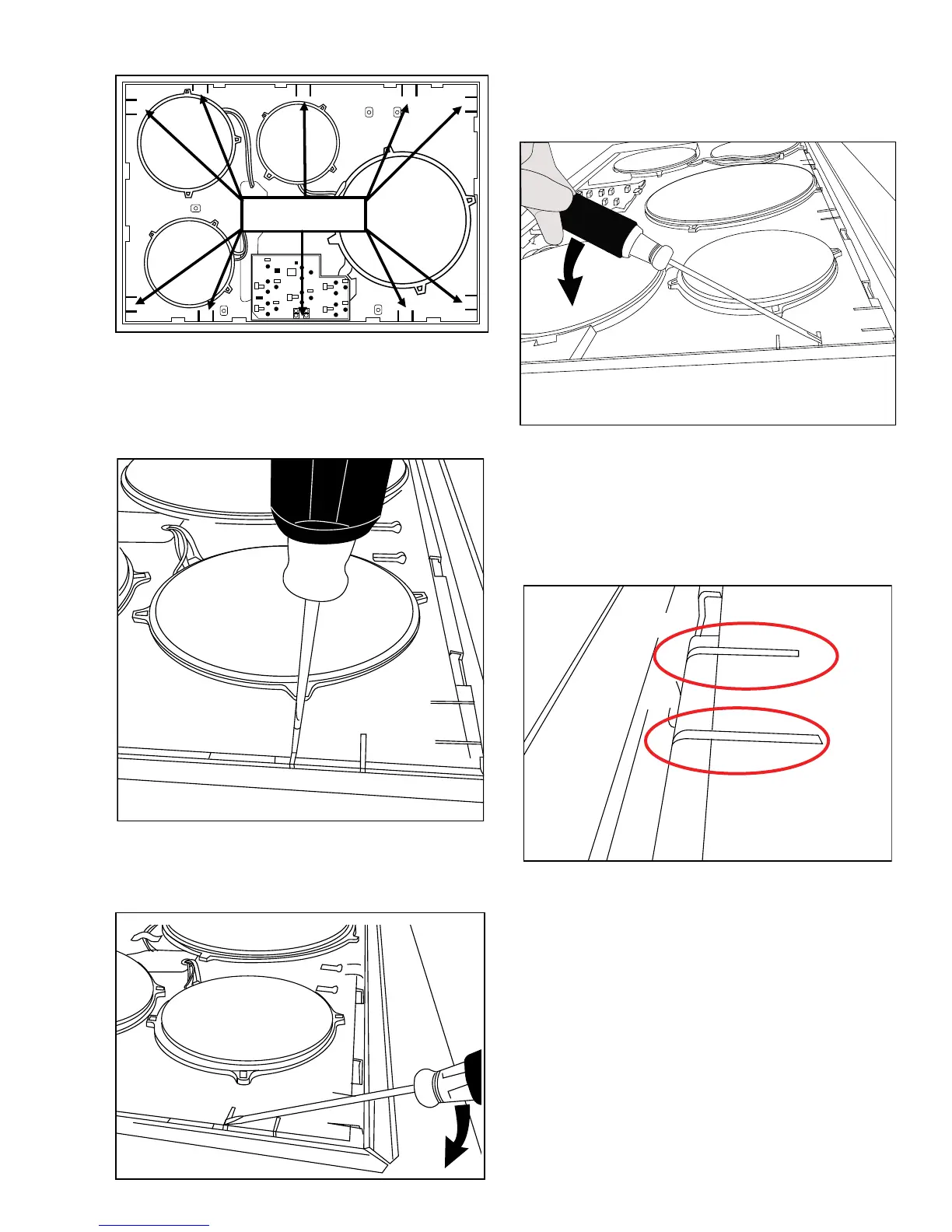

In the following illustrations, the heat shield is out of
alignment due to an excessive fl at-bottom drop of
the cooktop. A large fl at blade screwdriver can be
inserted in the gap on the left-side of the tab.
The heat shield can be aligned with the tab by
pushing down on the screwdriver and raising the
heat shield even with the tab.
Tab Locations - 36-in. Model
Inspect all tab-to-heat shield alignment areas.
Repeat this alignment procedure on all tabs, if
necessary.
It may be necessary to insert the screwdriver in the
right-side gap, push down on the screwdriver, and
raise the heat shield even with the tab.
Properly Aligned Heat Shield
