– 24 –

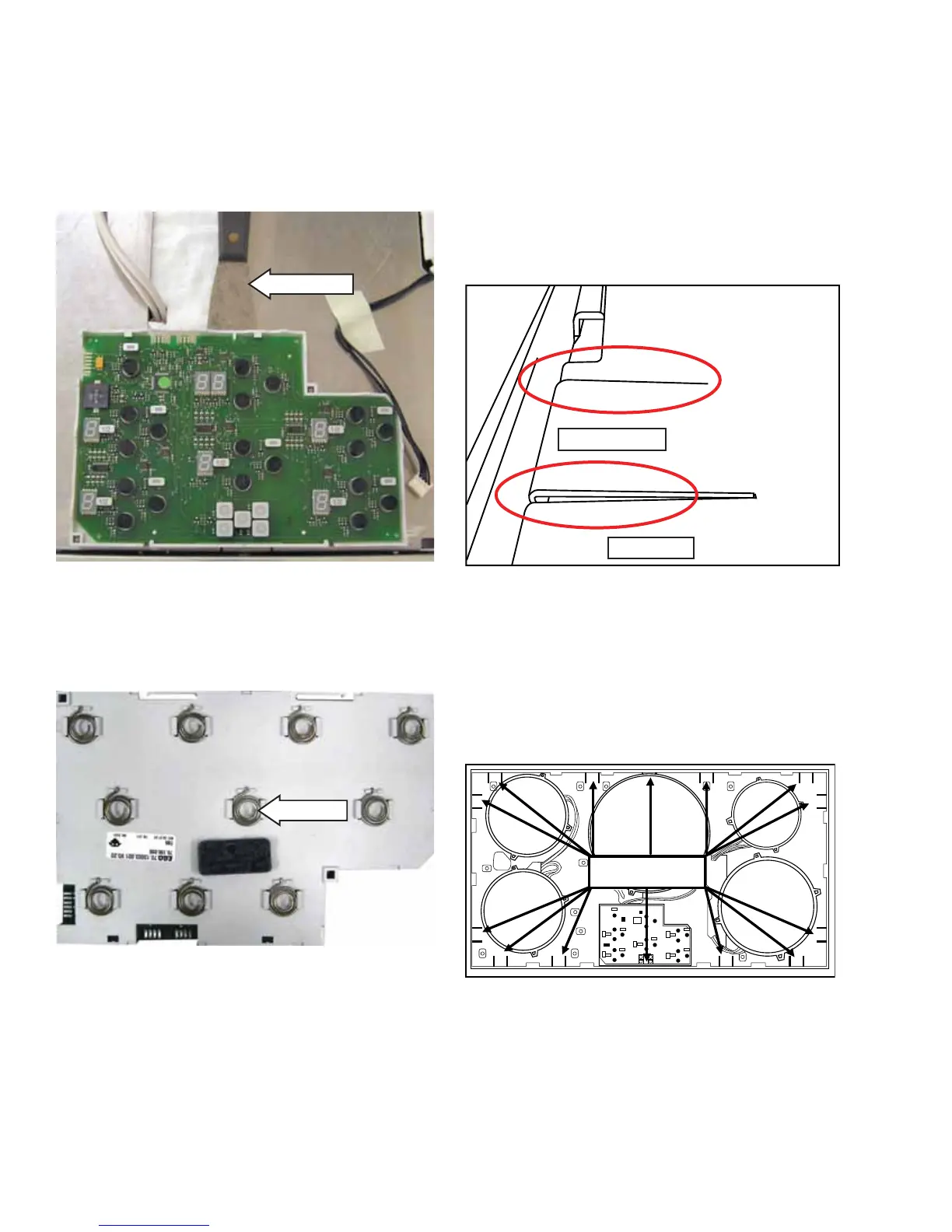

Note: Make sure all springs and capacitance foam
pads are in place for precise touch sensitivity
between the touch board and the cooktop glass.
Note: The bottom of the touch board is attached to
the heat shield with an adhesive foam cushion.
3. Raise the back of the touch board
approximately 1 inch. Using a putty knife at a
shallow angle, gently separate the foam spacer
from the heat shield.
Spring
To correct a misaligned heat shield it is necessary to
remove the glass top. (See Glass Top.)
There are 10 tabs on 30-in. models and 14 tabs
on 36-in. models. All tabs are located along the
perimeter of the heat shield.
Tab Locations- 30-in. Model
Heat Shield
Heat Shield Tab
Note: If one or more functions do not work and no
apparent damage is present, the cause can be an
excessive fl at-bottom drop of the packaged unit
during shipping/handling. The force of the drop can
position the heat shield out of proper alignment to
the heat shield mounting tabs. This would cause
improper spacing between the underside of the
glass top and the capacitive switches on the
module, rendering the switches inoperative.
Result of Excessive Flat-bottom Drop
(Continued next page)
Putty Knife
To Next Page
