GE prolec VR-1

GEH-7299A: Installation, Operation and Maintenance Manual
for Type VR1™ Single-Phase, Step Type Regulators
prolec.energy/prolecge 39

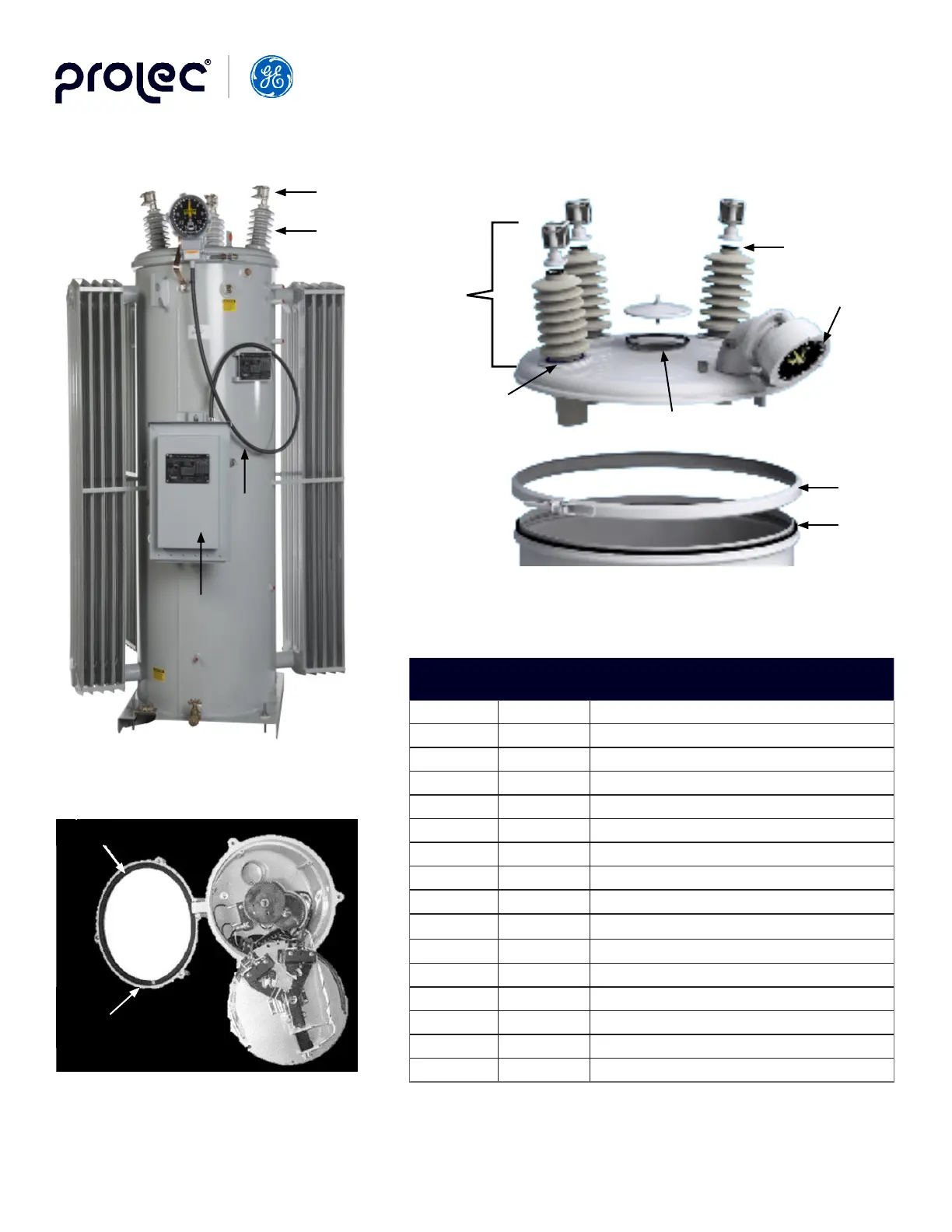

Figure 21. Cover and Accessories
*Not Illustrated
Figure No.
Reference
No.
Description
21 2000 High voltage bushing assembly complete
20 R2001 Bushing porcelain
20 R2002 Bushing terminal
21 R2003 Bushing terminal gasket
21 R2004 Bushing gasket cover
21 R2005 Handhole gasket
21 R2006 Cover gasket
21, 22 R2007A Load-bonus position indicator
22 R2008A Load-bonus indicator glass assembly kit
22 R2009 Indicator gasket
20 2010 Control-cabinet assembly
* R2011 Sample plug
21 R2013 Cover band
22 R1900 Indicator dial and switch assembly
22 R1901 Solenoid
22 R1902 Counter switch
Figure 20. External VR-1
R2001
2010
R2002
Control
Cable
Figure 22 .Load-Bonus Position Indicator
Indicator
Cover
R2009
2000
R2003
R2004
R2005
R2007A
R2013
R2006
