GE prolec VR-1

GEH-7299A: Installation, Operation and Maintenance Manual
for Type VR1™ Single-Phase, Step Type Regulators
prolec.energy/prolecge
40

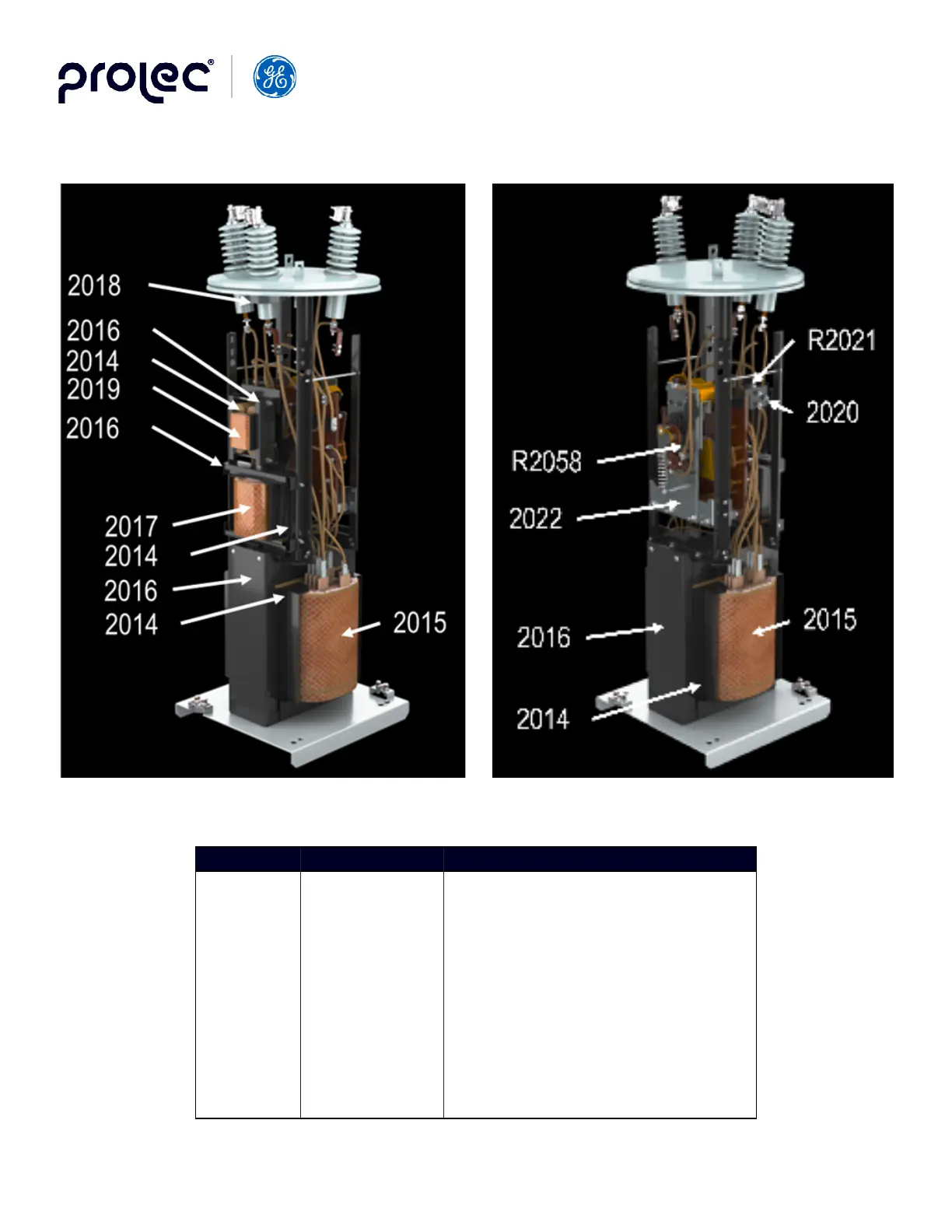

Figure 23. Type VR-1, Reactor Side Figure 24. Type VR-1, Mechanism Side with
Control Cabinet Removed
Figure No. Reference No. Description
23, 24
23, 24
23, 24
23
23
23
24
24
24
24
2014
2015
2016
2017
2018
2019
2020
R2021
2022
R2058
Core
Coil
Clamps
Reactor
Current Transformer
Potential Transformer
XENOX Surge Bypass Protector Assembly
XENOX Disks
Switch Mechanism
Fexible Shaft
