INSTALL COVER PANELS (cont.)

ALTERNATE METHOD: When side access is blocked

• Install bottom cover over the bottom support while

driving one screw into each side.

• Hold top cover in place while marking screw

locations, just below shelf support and onto bottom

cover.

• Remove the shelf and drill a 9/64" diameter

hole in the pencil-marked locations.

• Mount the top cover over the top support

and secure the front cover with screws through

the drilled holes on each side.

• Install screws through each top corner.

ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation

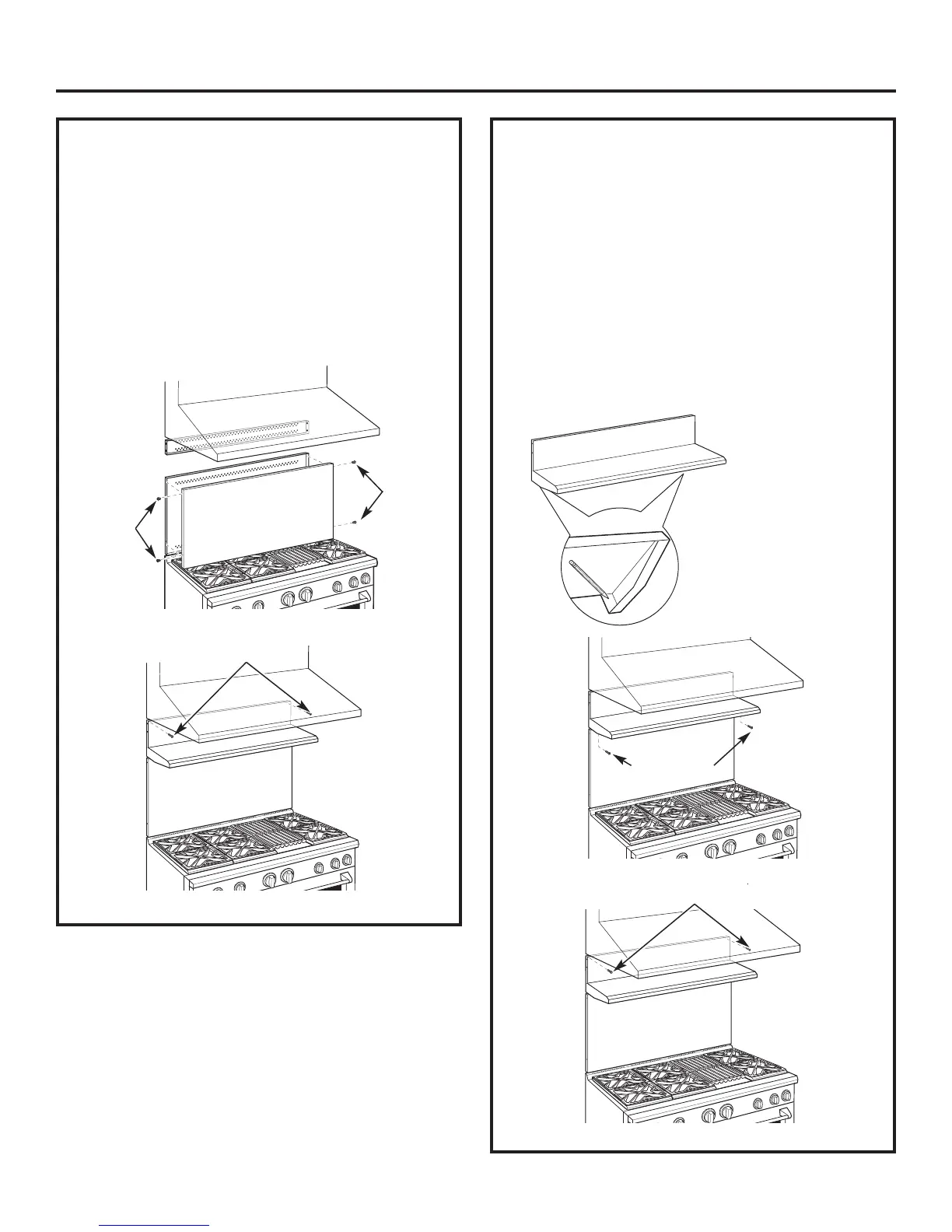

INSTALL COVER PANELS

See alternate method if side access is blocked.

• Hold the bottom cover over the bottom support

while driving one screw (provided) into each side.

• Place the top cover with shelf over the top wall

support. If you have access to the sides, secure

the panel with two screws on each side.

• Secure the top cover with shelf to the top

support with screws through the front of the panel,

at the top corners. Use one screw on each side.

Shelf

Install

Screw

Cover Panel

Install

Screw

Mark Scr

ew Locations

for Alternate Method

Install Screw in Top Corner on Each Side

Install Screw

on Each Side

Install Corner Screws
