Location of Controls
AUDIO IN and VIDEO IN Jacks
Receives audio signals from another component,
like a VCR or camcorder when it is connected to
these jacks.
To select these front panel jacks, press
INPUT
twice.
CH
^
and v (Channel up and down)
Selects next higher or lower channel in the
TV/VCR’s channel memory.
Used for manual tracking when a tape is playing.
F. FWD (Fast Forward)
Fast forwards the tape when the VCR is stopped.
Searches the picture forward during playback.
Headphone Jack
Connect headphones (not supplied) to this jack.
PLAY/PAUSE
Press once to begin playback of a tape. During
playback, press to pause. Press again to resume
playback.
POWER
Turns the TV/VCR on or off. The indicator in the
button is lit when the power is on.
REC (Record)
Press to start TV/VCR recording. The indicator
in the button lights during recording.
Remote Sensor
Receives signals from the remote. Aim remote at
this sensor with no objects between them.
REW (Rewind)
Rewinds the tape when the TV/VCR is stopped.
Searches the picture in reverse during playback.
STOP/EJECT
Stops normal functions such as record, play,
rewind, fast-forward, or pause.
Press when a tape is stopped to eject the cassette.
TIMER REC Indicator
Lights when a timer program has been set
and a cassette with safety tab in place is in
the TV/VCR.
Flashes when a timer recording has been set and
the TV/VCR is turned off with no cassette
inserted, a cassette with no safety tab has been
inserted, or there has been a power interruption.
WAKE-UP Indicator
Lights when the wake-up timer turns on
the TV/VCR.
VOL + and – (Volume up and down)
Raises and lowers the sound.
Note:
To disable Front Panel Buttons, see Front Panel Block
on page 10.

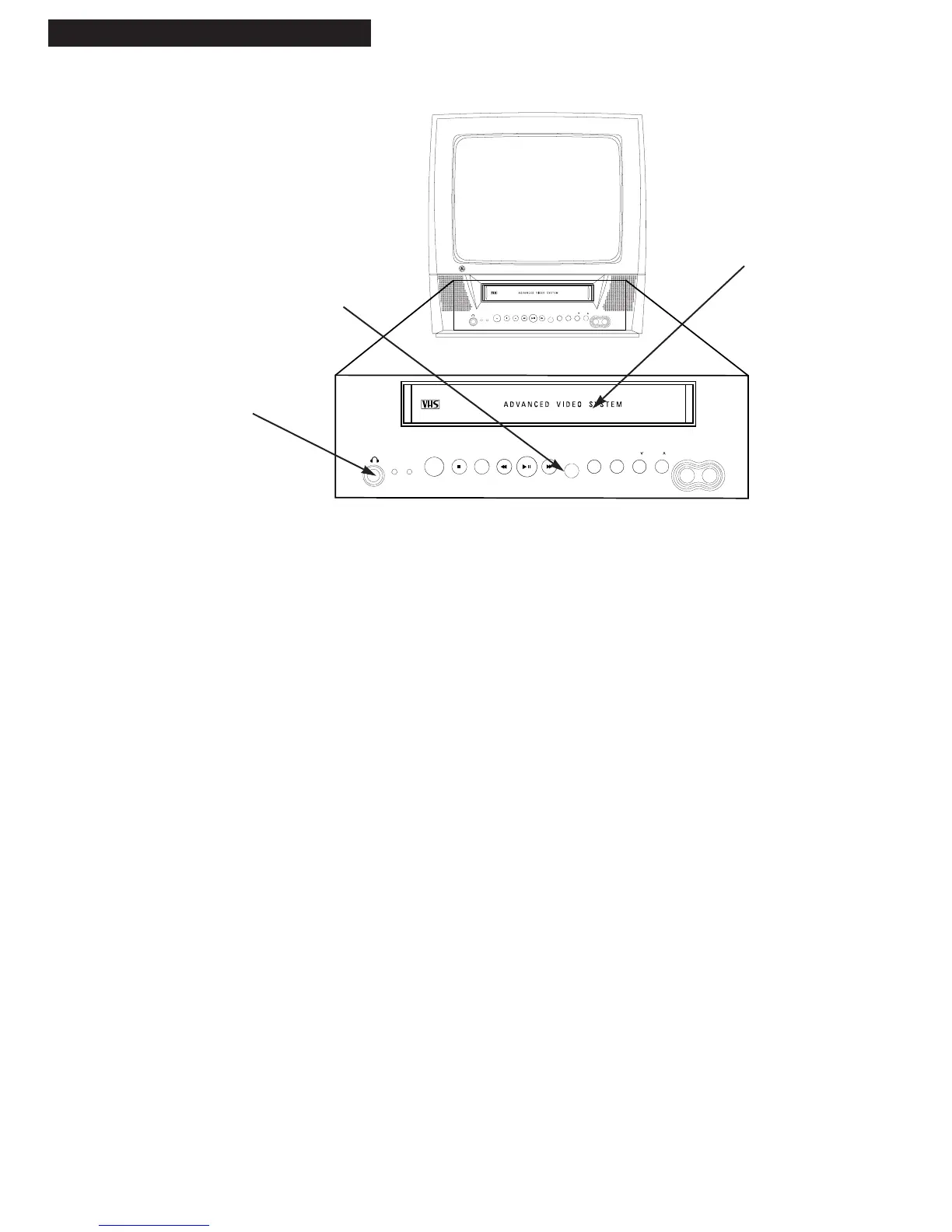

Front Panel
Remote Sensor
Tape Compartment
Headphone Jack
