Hooking Up the TV/VCR

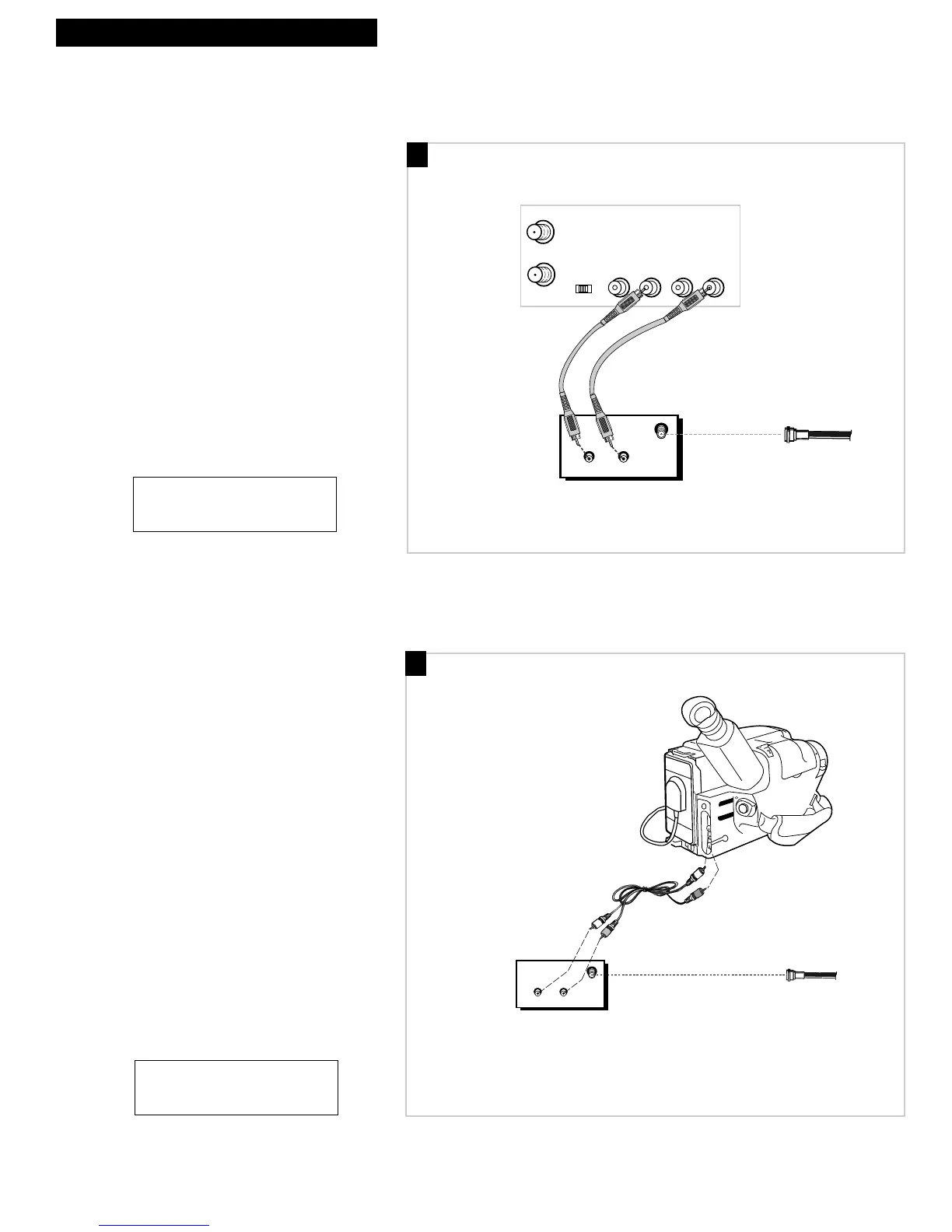

Connect a VCR or Camcorder for Copying Tapes
IN FROM
ANTENNA
AUDIO
INPUT
VIDEO
VCR (Playback Only)
TV/VCR (Recording Only)
OUT TO TV
IN FROM
ANT.
VHF/UHF
3 CH. 4
Audio/Video
Cables
IN
OUT
VIDEOAUDIO
IN
OUT
From Antenna, Cable
or Cable Box
Optional
A. VCR for Copying Tapes
1. Connect as shown.
This connection requires additional accessories
not provided.
2. Plug in power cords of VCR and
TV/VCR.
3. Turn to page 27 for “Copying and
Editing Tapes.”
Press INPUT on the remote to select the line
(audio/video) inputs on the TV/VCR to receive
the signal from the VCR.
If your VCR has stereo AUDIO OUT jacks,
connect the audio cable to the jack labeled
MONO. If neither jack is labeled MONO, you
may need a Y- adapter to hear both channels.
B. Camcorder for
Copying Tapes
1. Connect as shown.
This connection requires additional accessories
not provided.
2. Plug in TV/VCR’s power cord.
3. Turn to page 27 for “Copying and
Editing Tapes.”
Press INPUT on the remote to select the line
(audio/video) inputs on the TV/VCR to receive
the signal from the camcorder.
If your camcorder has stereo AUDIO OUT jacks,
you may need a Y- adapter to hear both channels.
Caution: The unauthorized recording of
television programs and other materials
may infringe upon the rights of others.
A
IN FROM
ANTENNA
AUDIO
INPUT
VIDEO
TV/VCR (Recording Only)
From Antenna, Cable
or Cable Box
Yellow
Video
Plug
White
Audio
Plug
Audio/Video
Cable
Optional
CAMERA
VCR
POWER
OFF
EDIT
AUDIO
RF
VIDEO
L
E
N
S
C
O
V
E
R
Camcorder (Playback Only)
B
Caution: The unauthorized recording of
television programs and other materials
may infringe upon the rights of others.
