Installation Instructions
INSTALLING THE ICE MACHINE (Cont.)
3 7/8"
20 3/8"
FLOOR DRAIN
ACCESS HOLE
3/4" SHEET METAL DOOR FRONT - IF DOOR KIT INSTALLED
.63 MIN. CABINET DOOR
2 3/8"
DOOR KIT
AND HANDLE
14-7/8"
2 1/2"
115V
POWER CORD
1" LEG ADJUSTMENT
(4) PLACES
2-3/4"
LEFT SIDE SVC.
ACCESS PANEL
7 1/2"
11 5/8"
DRAIN ACCESS - FLEXIBLE TUBING
5/8" I.D. x 7/8" O.D.
29-1/8"
4-1/4"
AIR INAIR OUT
33 7/8 "
3 1/4"
5 1/8"
2 3/4"
1/4" O.D. COPPER
WATER INLET
COMPRESSION
FITTING PROVIDED
22"3/4"

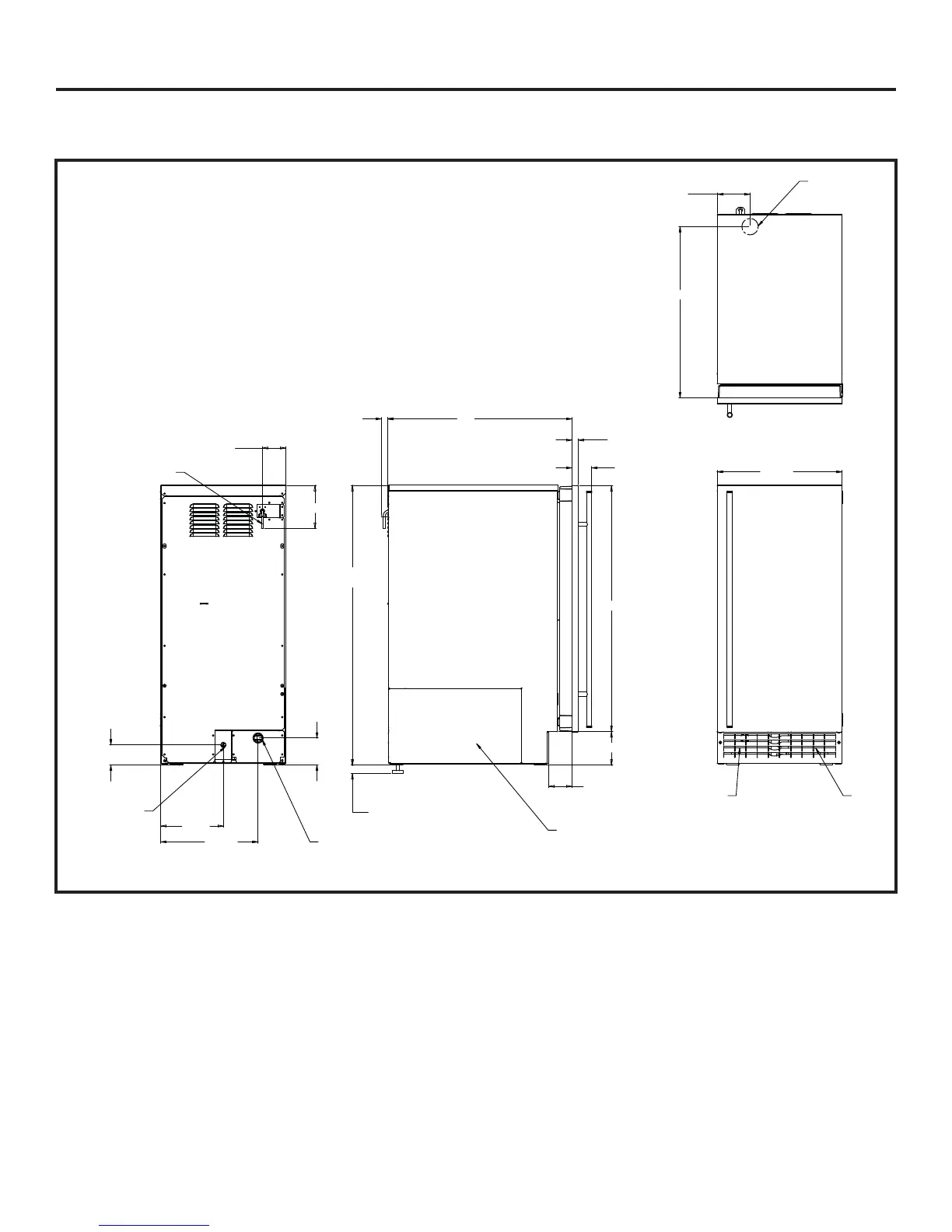

DIMENSIONS

GE UNC15NJ-II Specifications

General

Control Type	Electronic
Type	Undercounter
Ice Storage Capacity	26 lb
Width	14.88 inch
Depth	23.63 inch
Installation	Built-In
Door Style	Solid
Power Supply	115 V
Water Supply	Requires a water supply line
Weight	98 lb
