22
Mounting plate
Pull mounting plate
1
2
Screwdriver

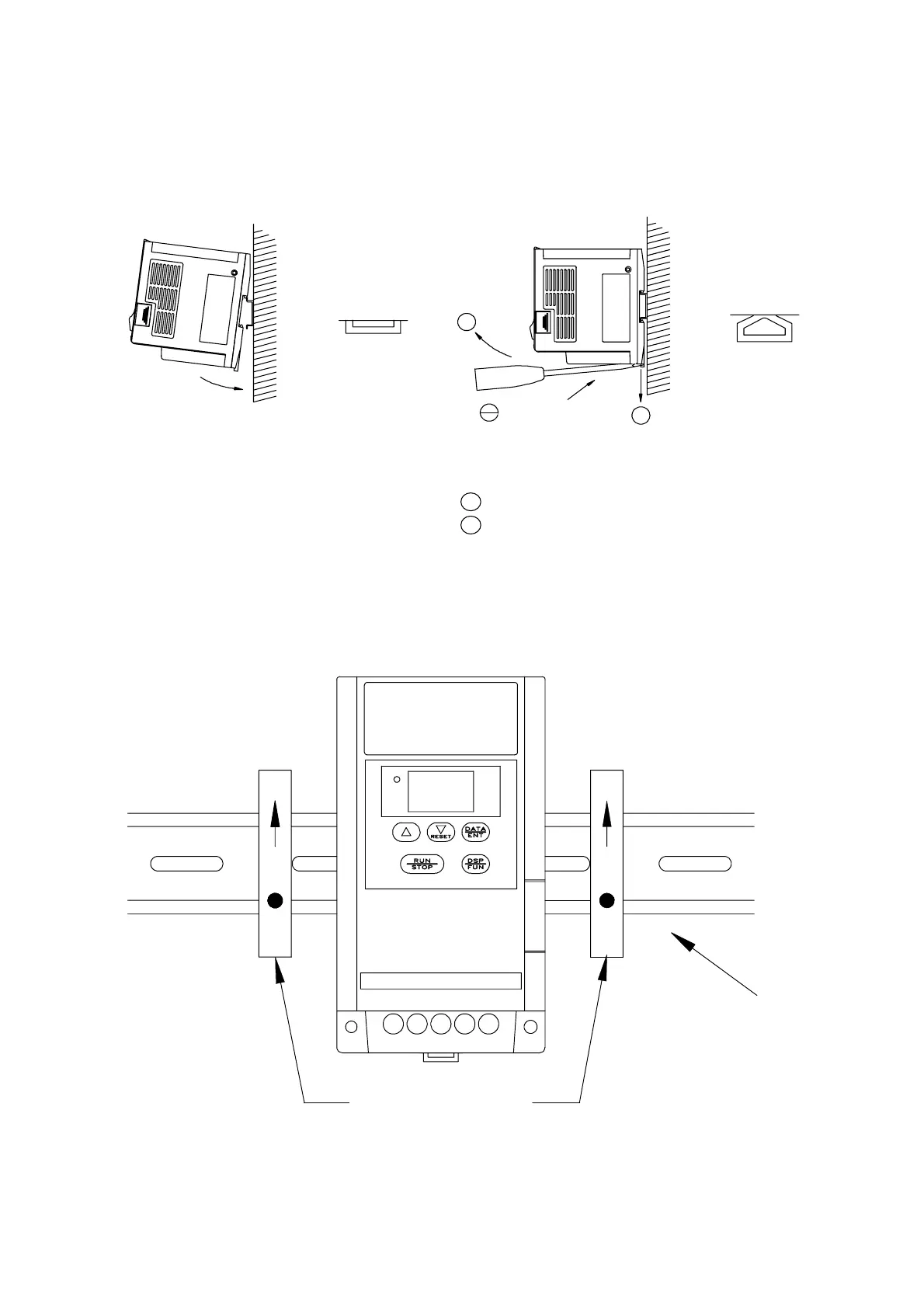

DIN rail installation
Mounting clamp and 35 mm width rail must be used to install VAT20 on the rail.
Install VAT20 Dismounting VAT20
Mount
Mounting clamp
(1)
DIN Rail
(1) Mounting clamp must be used to fasten VAT20
1 Pull the mounting plate downward.
2 Rotate the T-verter module to dismount it.
First place the groove on the back of
module on the upper edge of din rail ,
and then push the module down to lock
up position. Finally press the mounting
plate upward into module.
