EN-4

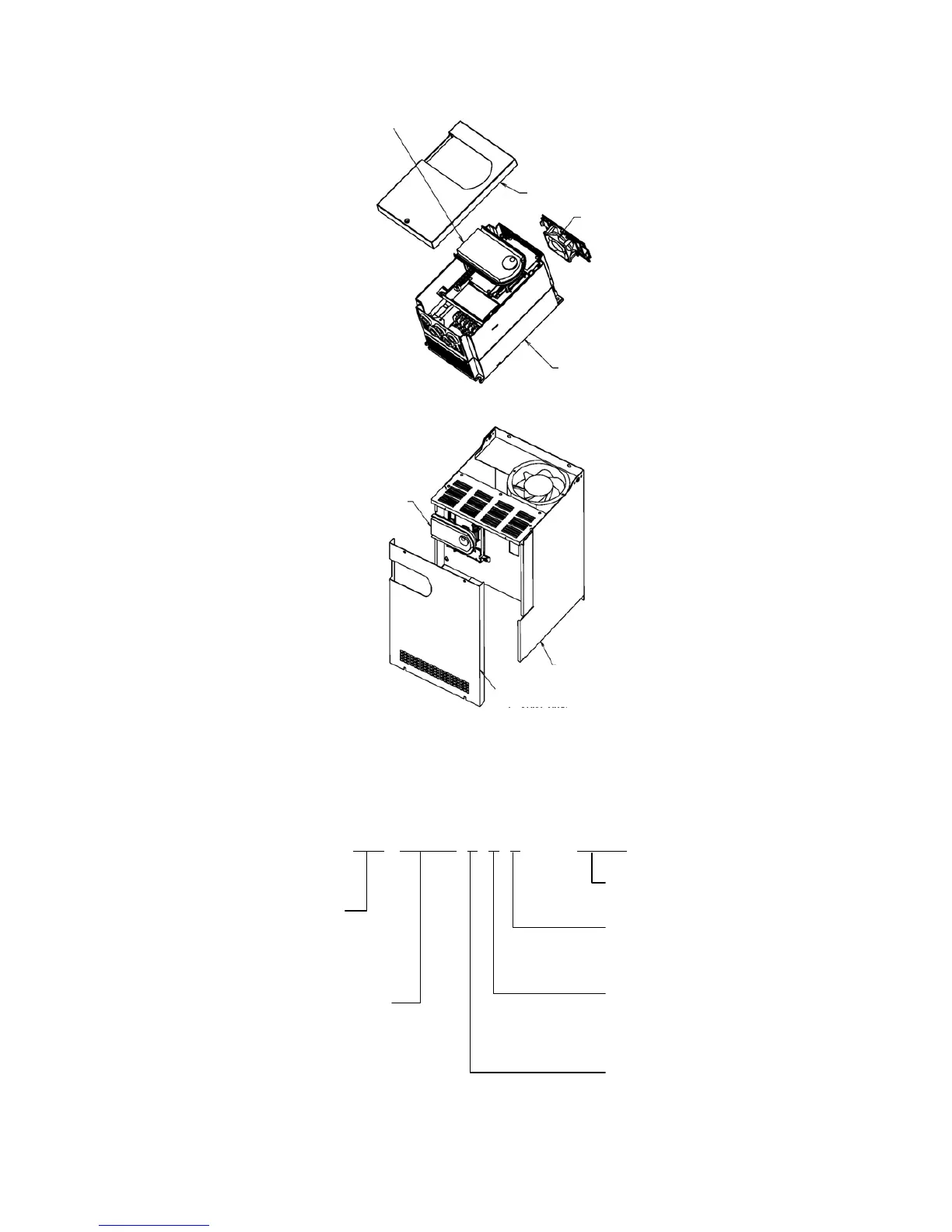

Chapter1 Names of each part
Cooling fan
installation case
Main body case
Front cover
Operation panel
Fig.1-1 For N018K5, H030K0 and smaller
Main body case
Operation panel
Front cover
Fig.1-2 For N022K0, X037K0 and larger
The presence and quantity of cooling fans will differ according to the capacity.
Remove the inverter from the packaging, and check the details on the rating nameplate to confirm
that the inverter is as ordered. The rating nameplate is on the left side of the unit.
VAT300- U3S N002K2 F B S X 0 0 0
Control No.
Indicates future Options.
Indicates if DB is built in the drive.
B : Dynamic Braking Built in
N : Without Built in DB
Indicates built in EMC filter
F : EMC filter built in
S : Without EMC Filter
Input voltage and capacity
(Refer toAppendix 1)
Type Unit
U3S : VAT300
