7-8 VersaMax Modules, Power Supplies and Carriers User's Manual GFK-1504N
7
IC200MDL143
Input Module, 120 V AC Isolated 8 Points

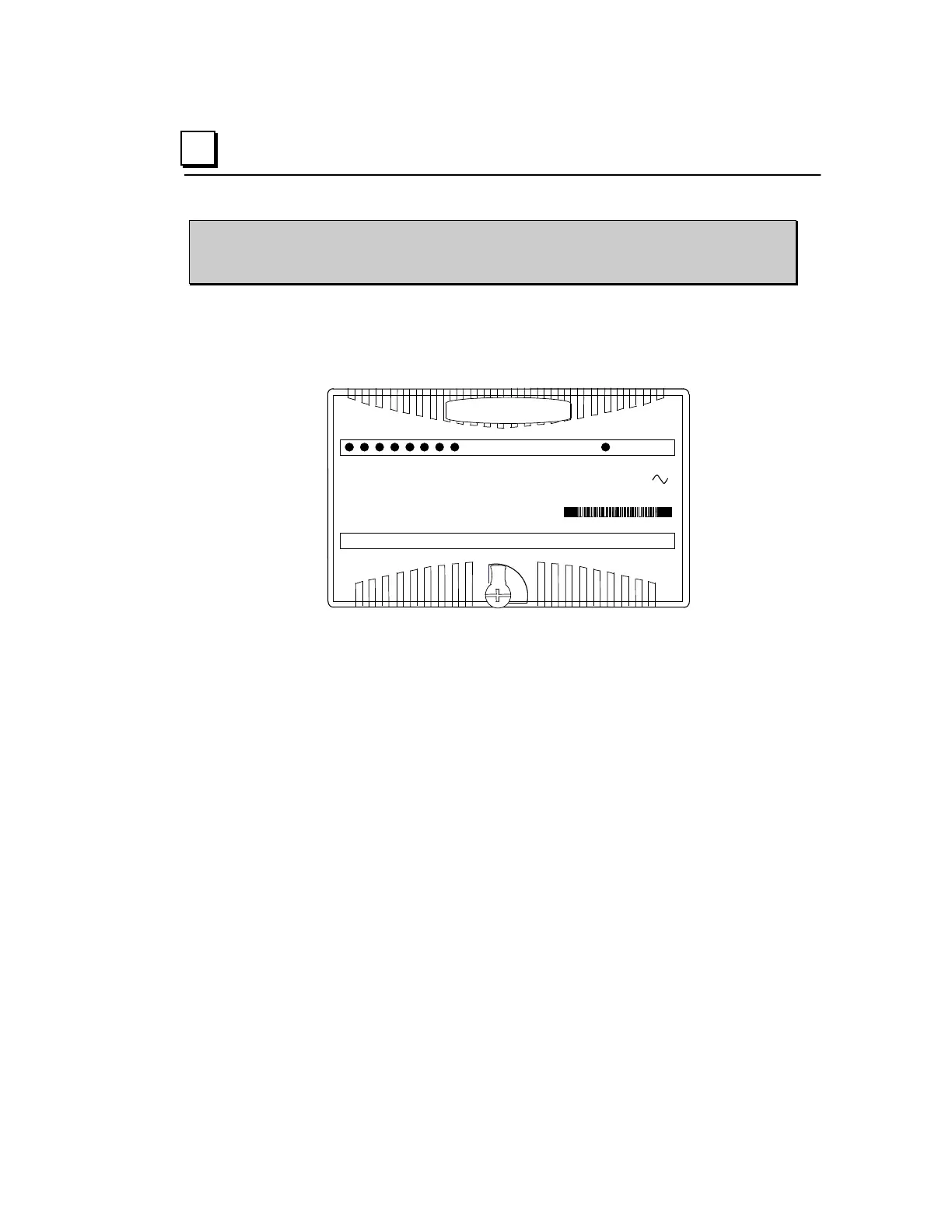

Discrete Input Module IC200MDL143 provides 8 isolated discrete inputs. Inputs
are positive logic or sourcing-type inputs; they receive current from AC input
devices and return the current on the common. Each input has its own return.
OK
1234567 831
IC200MDL143
INPUT 120VAC
ISO 8PT
1
2
3
4
5
6
7
8
I
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU. The
module provides 8 bits of discrete input data.
LED Indicators
Individual green LEDs indicate the on/off state of each input point.
The green OK LED is ON when backplane power is present to the module.
