GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
7-66 Section 7-3 - Performing Front End (FE) Diagnostics
7-3-10 H/W Report
The H/W Report button in the FE Diagnostics dialog box enables you to generate a report displaying
the Front End boards, software versions and hardware revisions.
1) Access the FE Diagnostics dialog box, as described in the
Accessing the Front End Diagnostic
Options
section, on page 7-6.
2) Trackball to the H/W Report button and press Select. The System Report window is displayed, as
shown below:

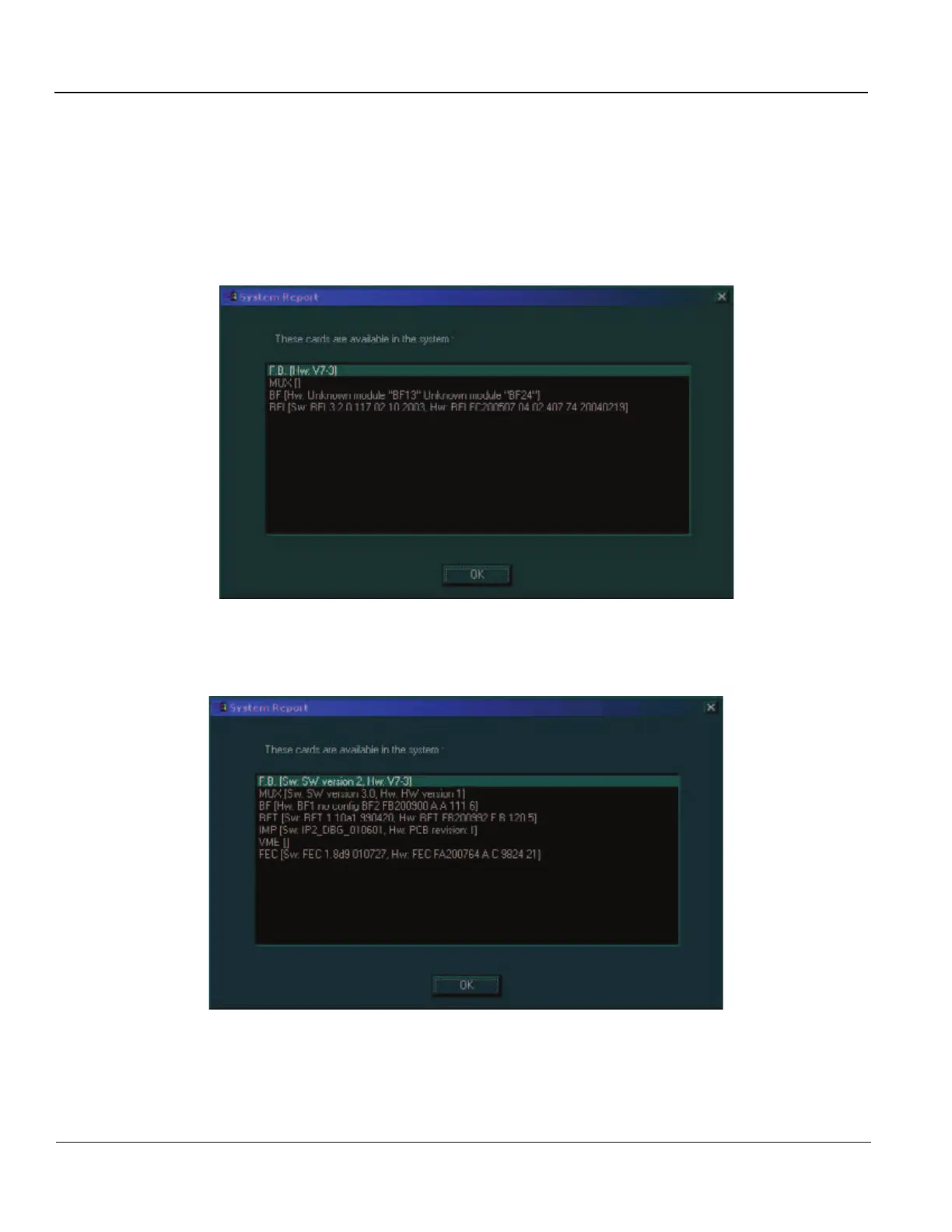

Figure 7-42 System Report Window (RFI-configured Systems)
Figure 7-43 System Report Window (RFT-configured Systems)
