– 17 –
Agitate Position
Spin/Idle Position
Mode Shifter Cam
Mode Shifter Coil
Mode Shifter Coil
Drive Pulley
Mode
Shifter
Cam
Mode Shifter Coil
Drive Pulley
Mode
Shifter
Cam
(Continued next page)
Drive Shaft
Note: Mode shifter coil energized for agitate mode; cam teeth disengaged from drive pulley.

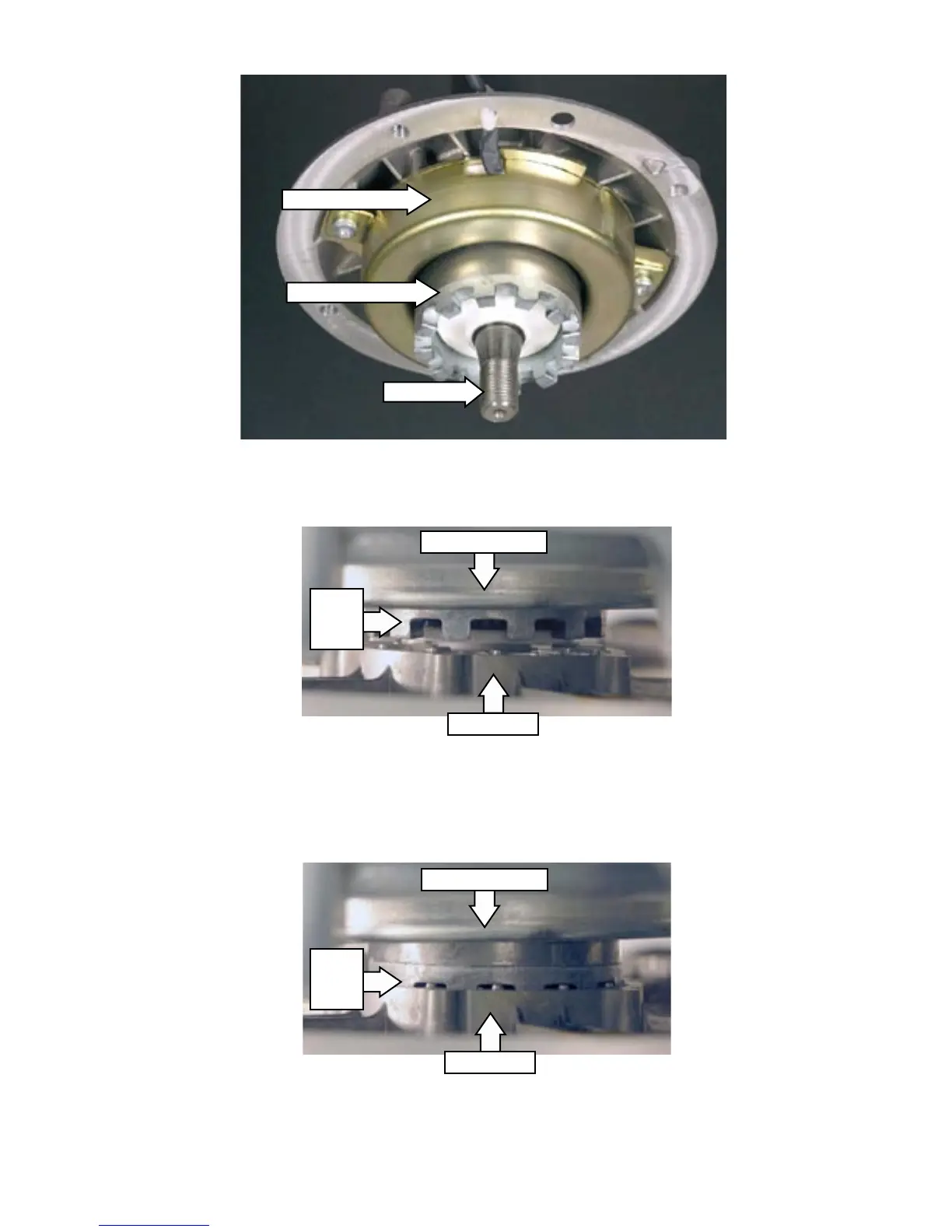

Shaft and Mode Shifter Assembly
Note: Mode shifter coil de-energized for spin/idle mode; cam teeth engaged in drive pulley.
