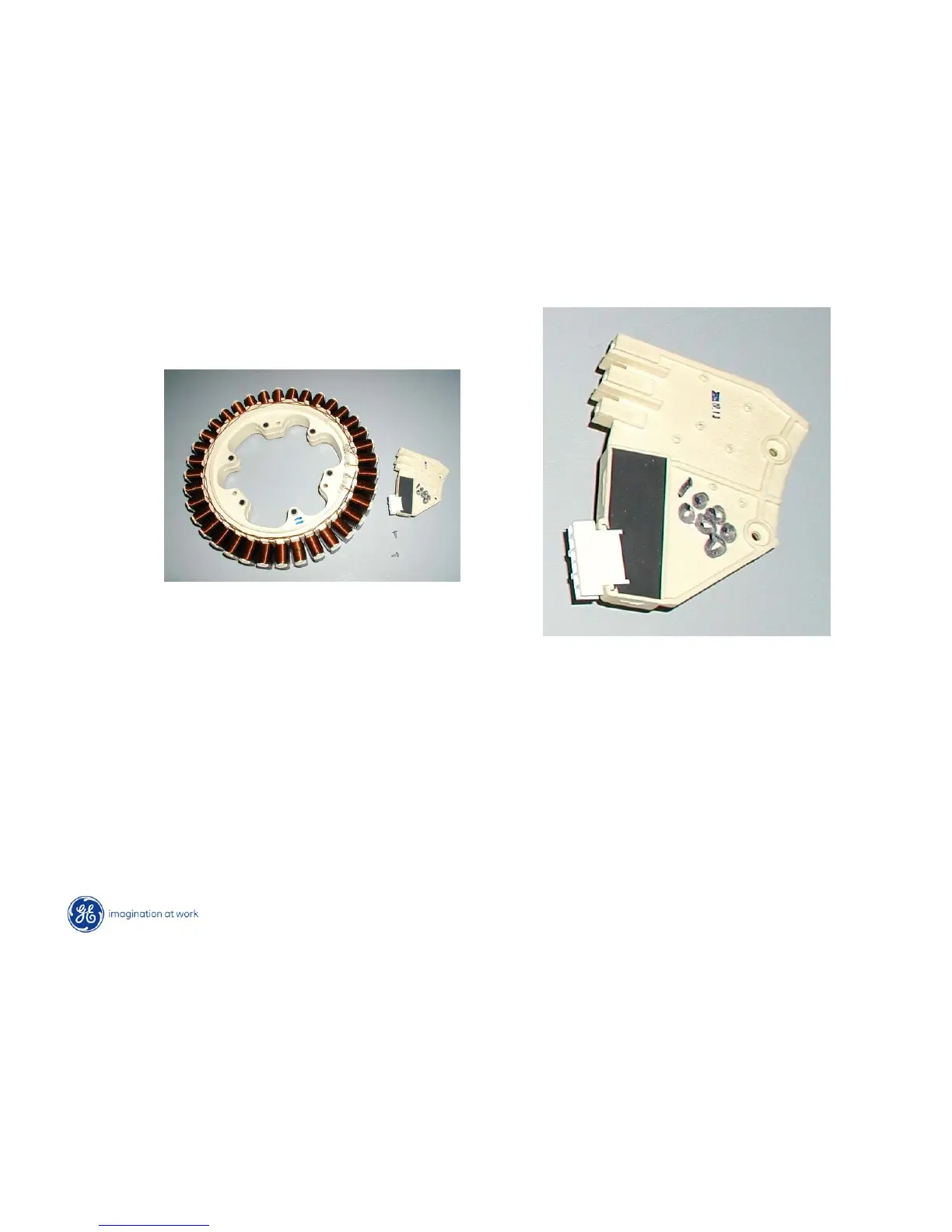

Motor Assembly / Hall Sensor
• The Hall effect sensor measures the motor rpm.
• The Hall sensor measures approximately 4.7K  between the pink and
blue wires and the pink and red wires, and 9.4K  between the blue
and red wires.
• If the sensor has failed, the motor will not operate.
• The Hall sensor is part of the stator assembly. It is also available as a
separate part.
