Wash Basket
To remove the wash basket:
• After removing the motor assembly,
suspension components, counter
weights and gasket, remove the tub
assembly from the washer cabinet.
• Carefully position the tub assembly,
motor side down, on a clean, protective
surface.

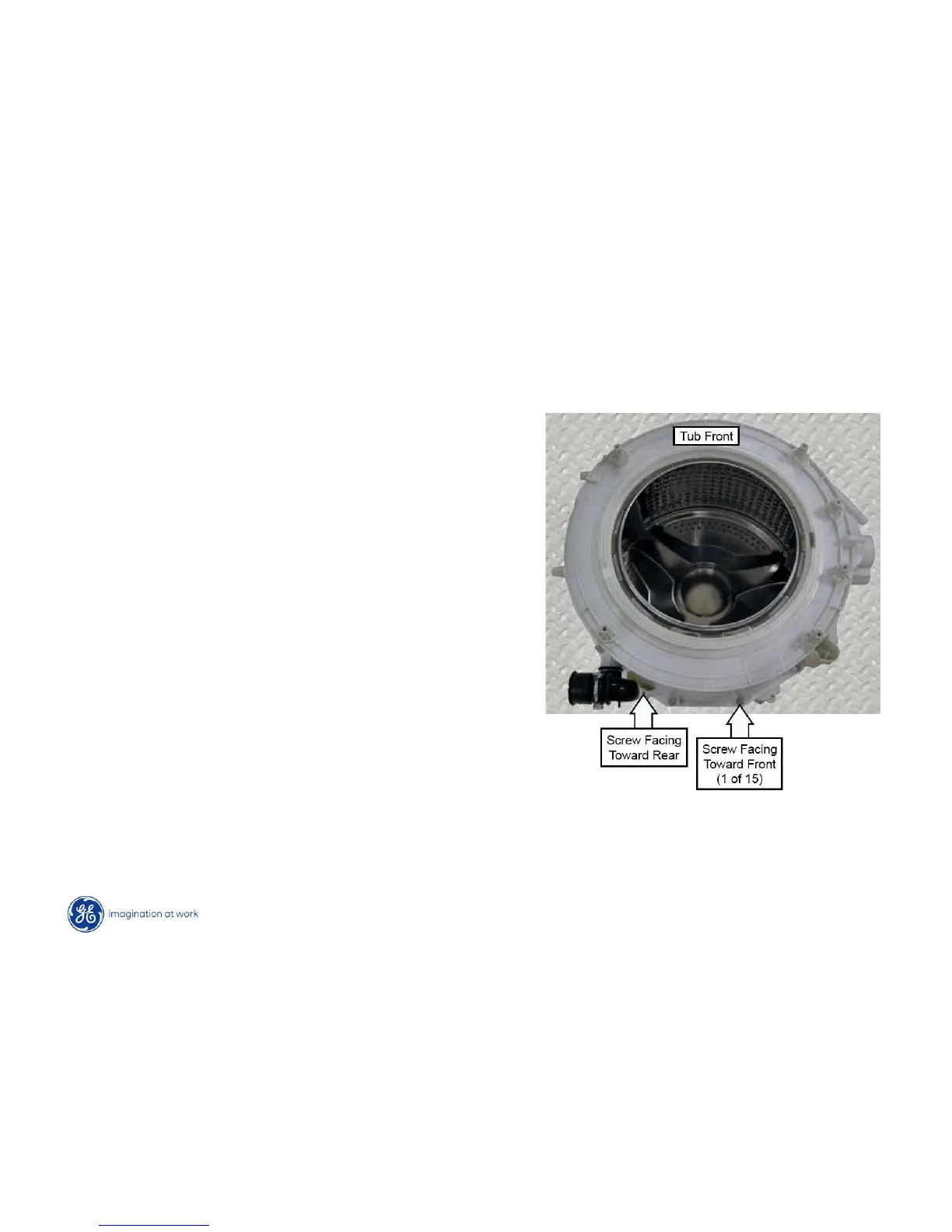

• Remove the single 10-mm hex head
screw, located near the dispenser inlet,
that faces the tub rear.
• Remove the fifteen 10-mm hex head
screws that hold the tub front and tub
rear together.
