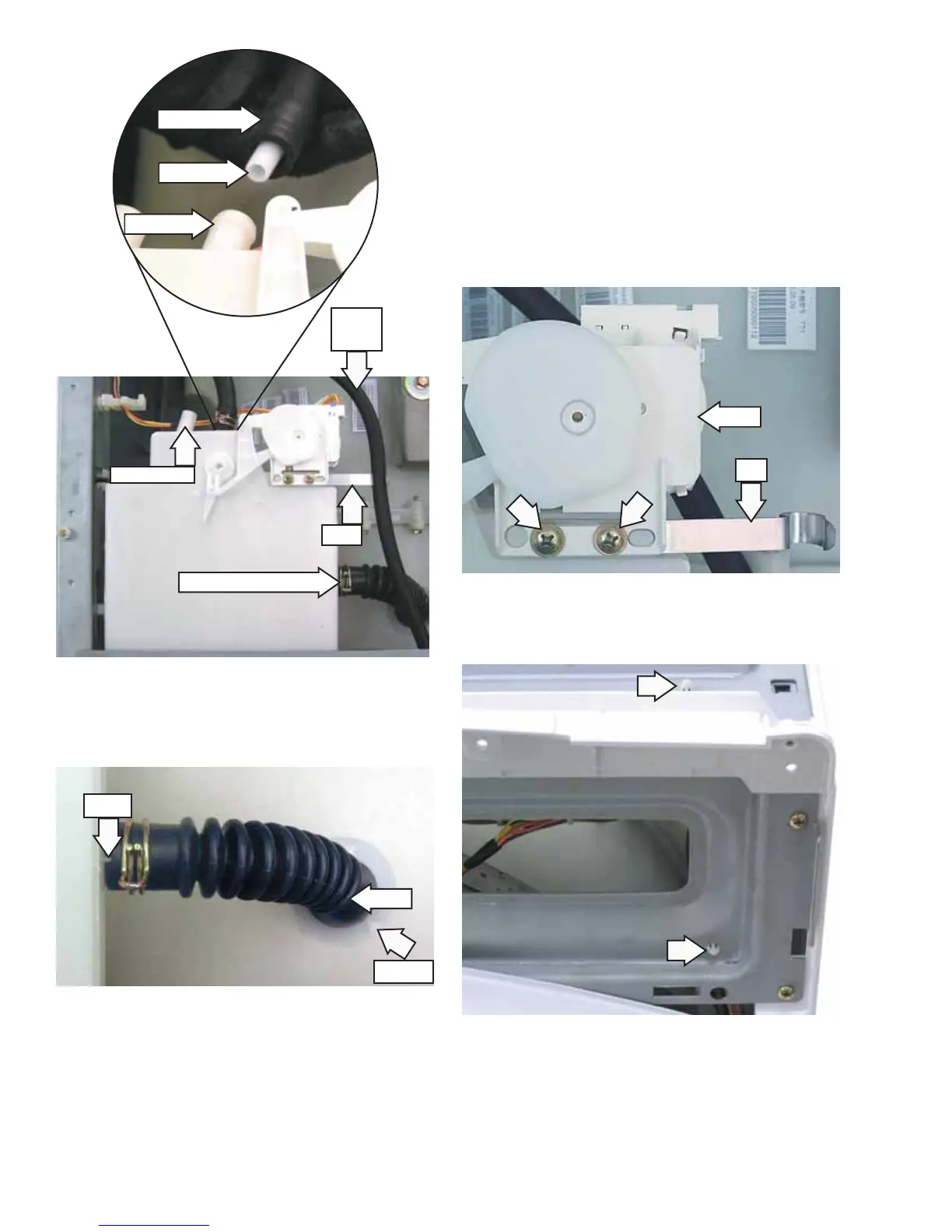

Note: Reinstall dispenser vent hose with notch
aligned on dispenser tank and ensure seam remains
aligned with the pointer on the outer tub.
Pointer
Seam
Notch
(Continued Next Page)
Clip
Unused Inlet
Inlet Hose
Inlet Tube
Tank Inlet
Dispenser Vent Hose
Gasket
Inlet
Hose
Disengage the 2 plastic wire retainers from the
front bracket by pressing the lock tabs inward.
7.
Motor
Clip
Caution: A small retainer for the dispenser motor
wiring, located underneath the unused inlet, is
fragile. To avoid breakage, use minimal outward
pressure when releasing wiring.
Release the dispenser motor wiring from the
retainer.
Remove the 2 Phillips-head screws that attach
the motor and clip to the dispenser tank. Place
the motor and clip aside.
5.
6.
To Next Page
