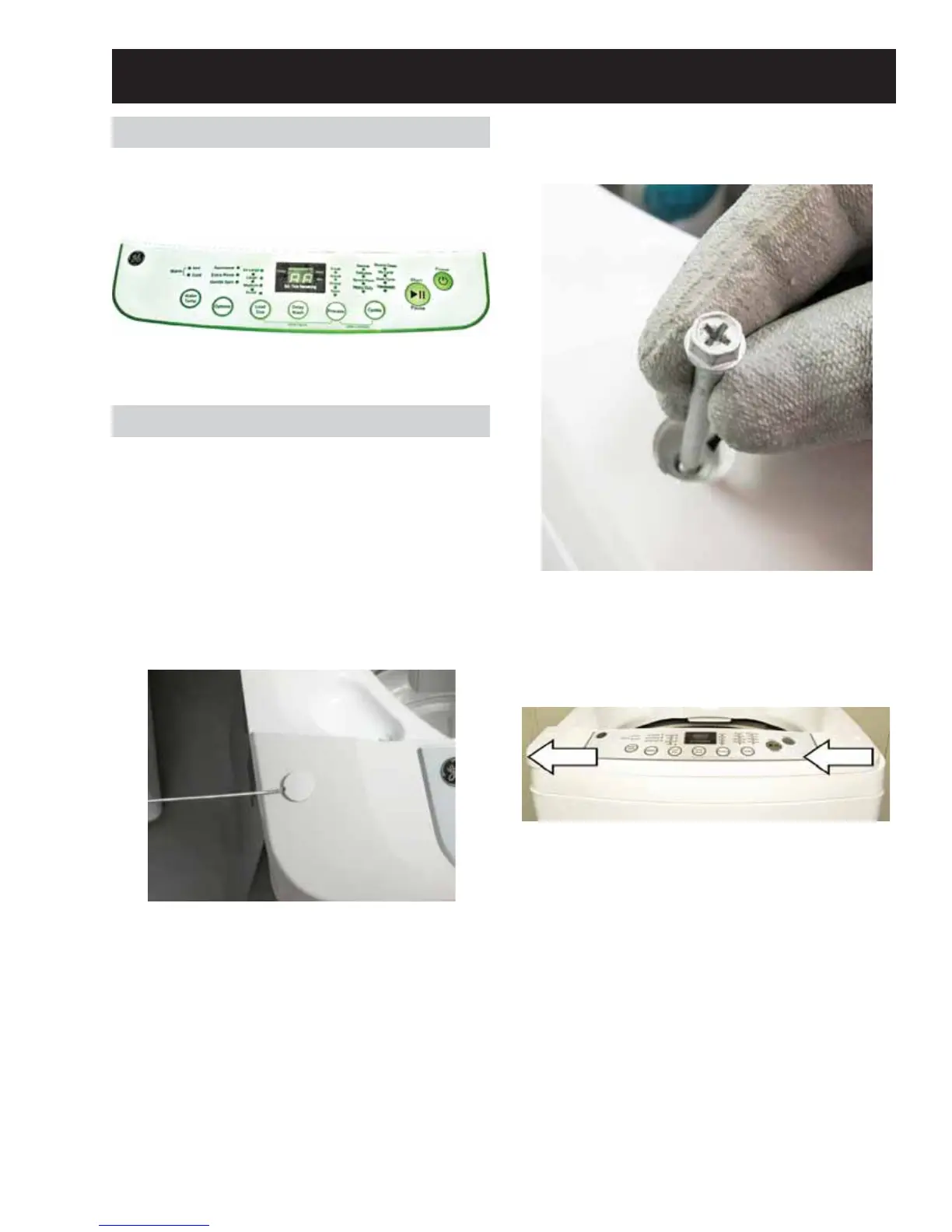

Front Control Panel

The front control panel houses the User Interface

(UI) board and the Machine Control (MC). They mount

to the control panel.

Control Panel Removal

The control panel is attached to the top cover with

two recessed dual (Phillips/1/4 inch hex head)

screws, (one on each side). It is necessary to remove

the two screw covers to access the screws.

1. Open the lid.

2. ,QWKHQRWFKSURYLGHGLQVHUWDVPDOOÀDWEODGH

screwdriver, then pry and lift the two screw

covers (one on each side), from the top of the

control panel.

Cabinet and Structure

3. Remove the two screws that secure the control

panel to the top cover.

4. Slide the control panel left to disengage the ten

tabs located inside the control panel.

5. /LIWWKHSDQHOIURPWKHWRSFRYHUDQGÀLSRYHUWR

gain access to the electronic boards.
